Accessory DC/AC Power Inverter Module (KI6 or KIU)
Accessory DC/AC Power Inverter Module (KI6 or KIU)
Component Connector End Views

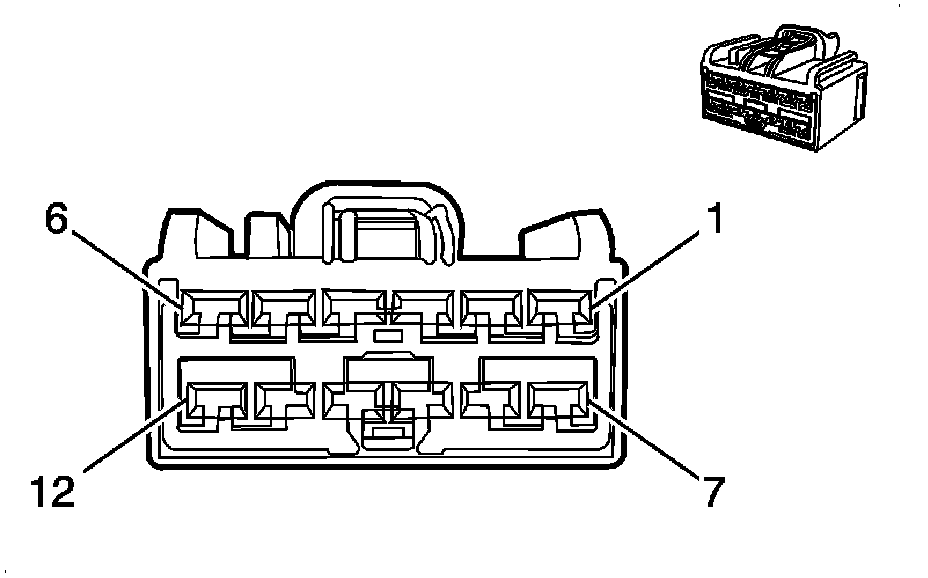

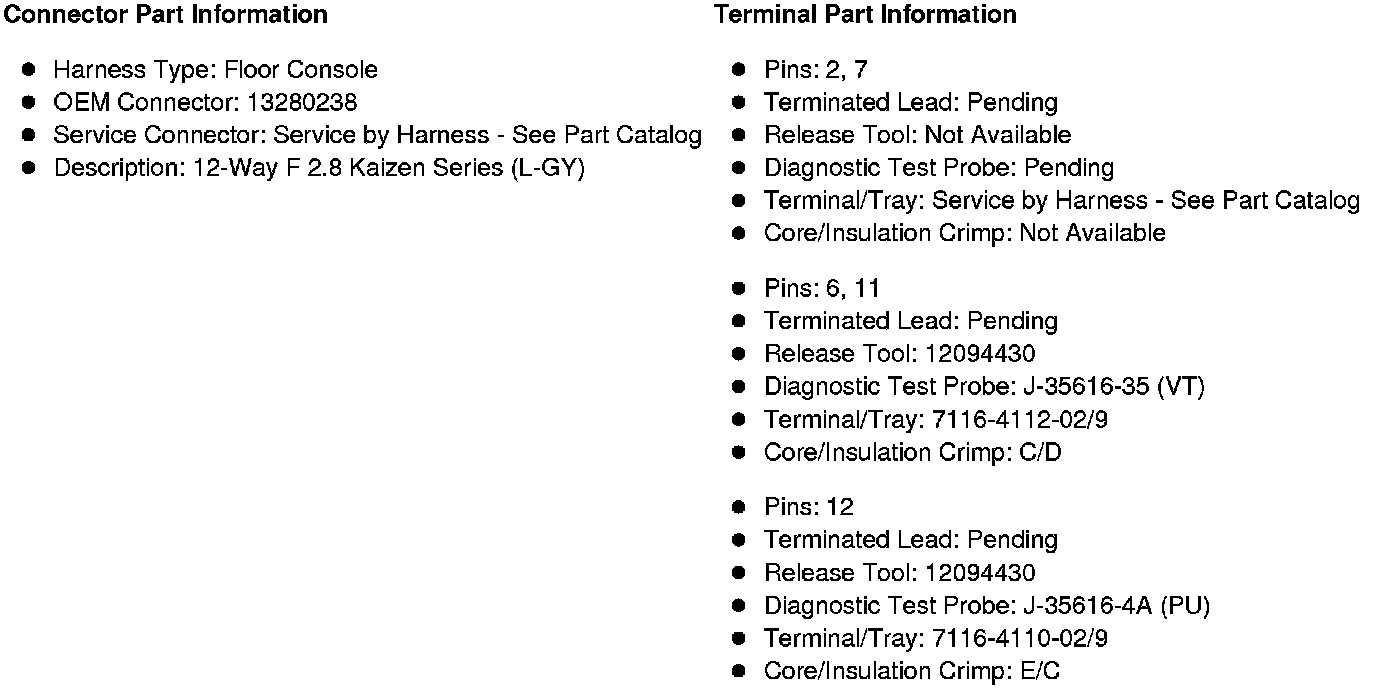

T1 Accessory DC/AC Power Inverter Module (KI6 or KIU)
