Front Object Sensor - Right Outer (UD5)

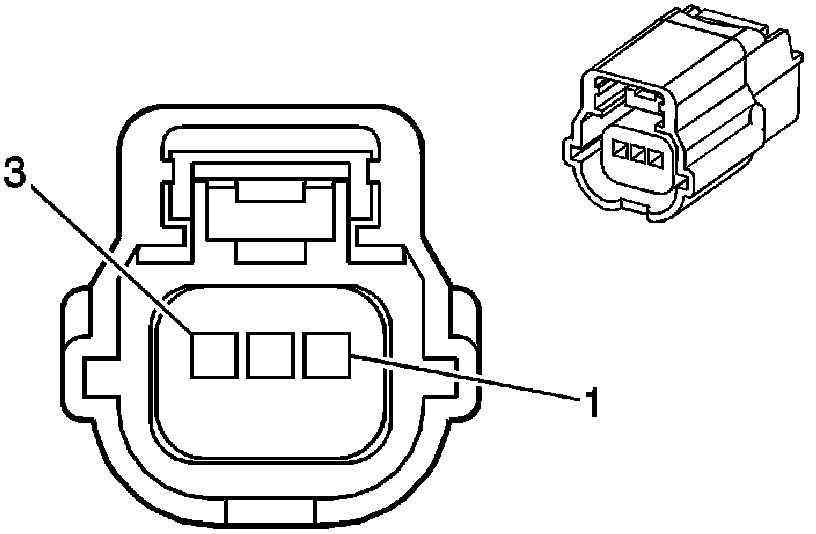

Component Connector End Views

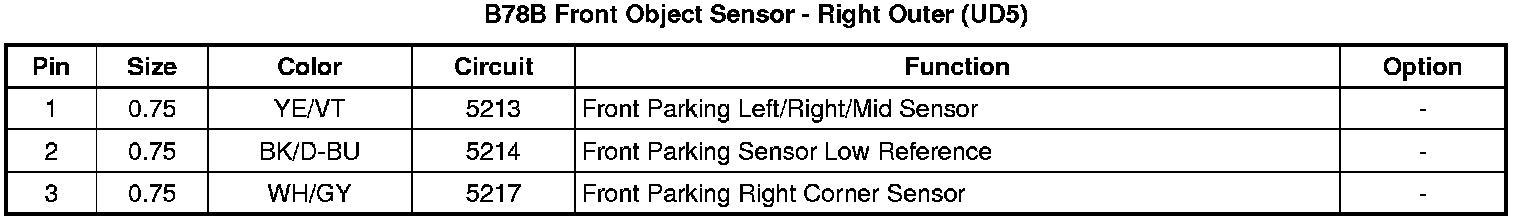

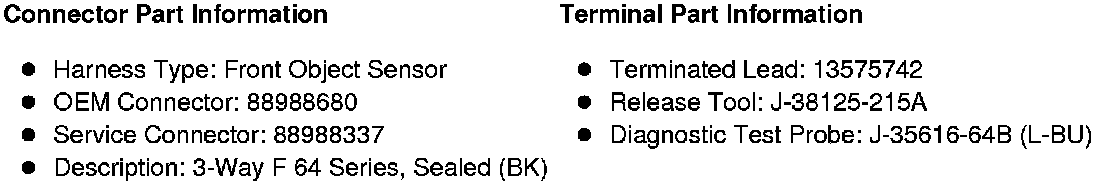

B78B Front Object Sensor - Right Outer (UD5)
