Home >> Buick >> 2012 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Collision Avoidance Sensor >> Front Object Sensor - Right Middle (UD5)

Front Object Sensor - Right Middle (UD5)

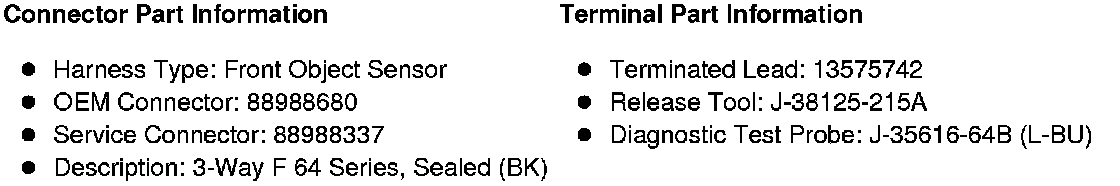

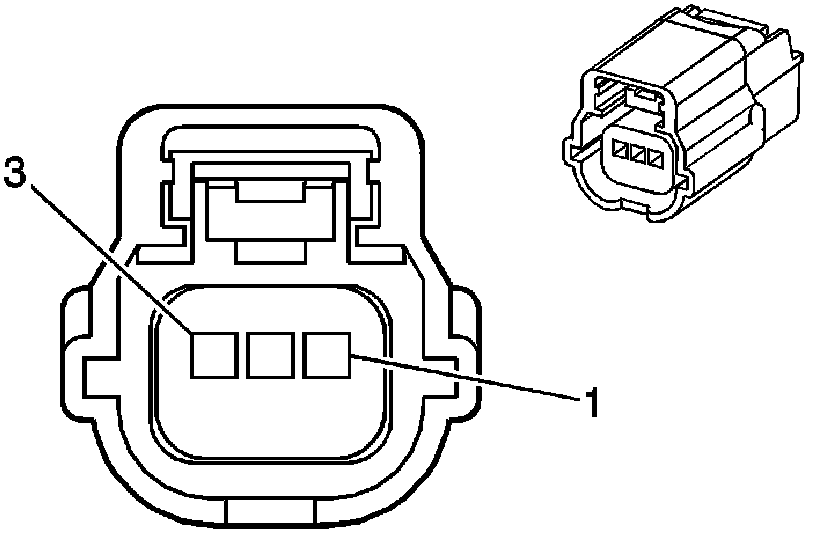

Component Connector End Views

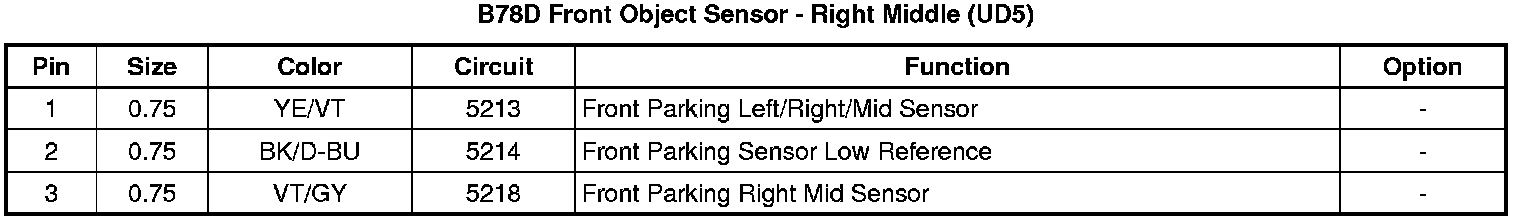

B78D Front Object Sensor - Right Middle (UD5)
