Sunroof / Moonroof Switch: Locations

Passenger Compartment/Roof Component Views

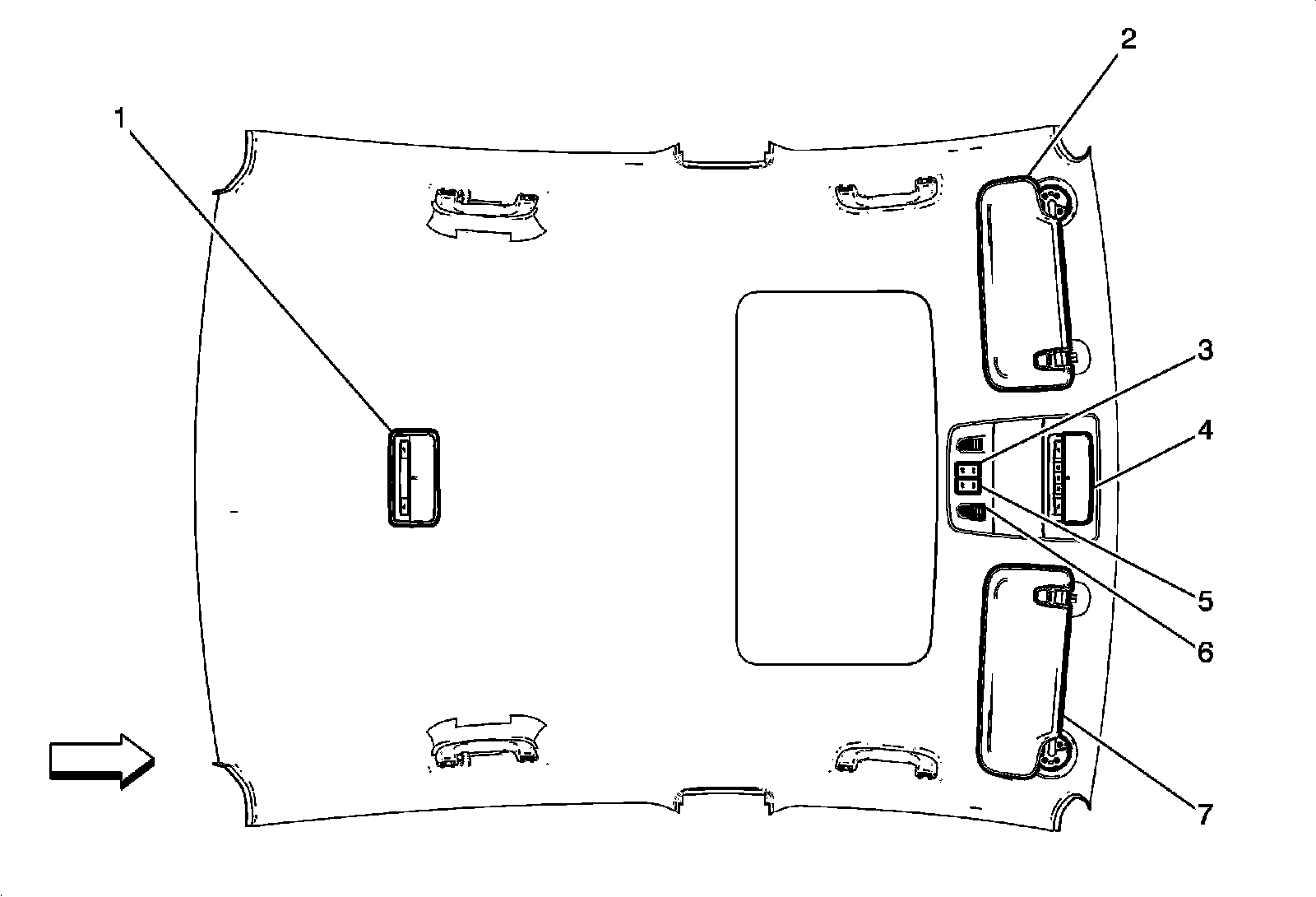

Headliner Components





1 - E37R Dome/Reding Lamps- Rear

2 - A3R Sunshade- Right

3 - S88 Sunroof Tilt Switch (CF5)

4 - E37E Dome/Reding Lamps- Front Overhead Console

5 - S72 Sunroof Switch (CF5)

6 - B24 Cellular Phone Microphone

7 - A3L Sunshade- Left
