6T30/6T40/6T45/6T50 - Automatic Transmission (Gen 1)
DTC P2714 or P2715 (Gen 1)
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptors
DTC P2714
-
Pressure Control Solenoid Valve 4 Stuck Off
DTC P2715
-
Pressure Control Solenoid Valve 4 Stuck On
Circuit/System Description
The clutch pressure control (PC) solenoid 4 is part of the control solenoid valve assembly which has no serviceable components. The PC solenoid 4 regulates transmission fluid pressure (TFP) to the 2-6 regulator valve which controls pressure to the 2-6 clutch. The transmission control module (TCM) calculates gear ratio based on the RPM signals from the input speed sensor (ISS) and the output speed sensor (OSS). The TCM compares the expected transmission gear ratio to the calculated gear ratio for each commanded gear.
Conditions for Running the DTC
P2714
* DTC P0101, P0102, P0103, P0106, P0107, P0108, P0171, P0172, P0174, P0175, P0201, P0202, P0203, P0204, P0205, P0206, P0207, P0208, P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307, P0308, P0401, P042E, P0716, P0717, P0722, P0723, or P182E is not set.
* High side driver (HSD) is enabled.
* Throttle position signal is valid.
* Ignition voltage is 9.0 volts or greater.
* Transmission fluid temperature (TFT) is -7°C (19°F) or greater.
* Engine speed is 400 RPM or greater for 5 seconds.
* 2-6 clutch is commanded ON.
* Output speed is greater than 650 RPM or the throttle position is greater than 0.5 percent.
P2715
* DTC P0101, P0102, P0103, P0106, P0107, P0108, P0171, P0172, P0174, P0175, P0201, P0202, P0203, P0204, P0205, P0206, P0207, P0208, P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307, P0308, P0401, P042E, P0716, P0717, P0722, P0723, or P182E is not set.
* Ignition voltage is 9.0 volts or greater.
* Transmission output shaft speed is 200 RPM or greater.
* Engine speed is 400 RPM or greater for 5 seconds.
* 2-6 clutch is commanded OFF.
* TFT is 0°C (32°F) or greater.
* Attained range is not 1st gear.
* HSD is enabled.
* Transmission input speed is 200 RPM or greater.
Conditions for Setting the DTC
P2714
TCM detects an incorrect on-coming clutch gear ratio, or shift flare.
P2715
TCM detects an incorrect off-going clutch gear ratio, or shift tie-up.
Action Taken When the DTC Sets
P2714
* DTC P2714 is a Type A DTC.
* TCM commands maximum line pressure.
* TCM freezes transmission adaptive functions.
* TCM inhibits the Tap Up/Tap Down function.
* TCM inhibits manual shifting of forward gears.
* TCM limits the transmission to reverse and 3rd gear.
P2715
* DTC P2715 is a Type A DTC.
* TCM commands maximum line pressure.
* TCM freezes transmission adaptive functions.
* TCM inhibits the Tap Up/Tap Down function.
* TCM inhibits manual shifting of forward gears.
* TCM limits the transmission to reverse and 2nd gear.
Conditions for Clearing the DIC/DTC
DTCs P2714 and P2715 are Type A DTCs.
Diagnostic Aids
Before performing a road test, configure and setup the scan tool for snapshot mode. This allows you to monitor, display, and verify multiple transmission data parameters at one time, after the road test.
Reference Information
Schematic Reference
* Drive Range, Second Gear (Gen 2/Hybrid)
* Drive Range, Sixth Gear (Gen 2/Hybrid)
Description and Operation
* Transmission General Description Transmission General Description
* Transmission Component and System Description Transmission Component and System Description
* Electronic Component Description Electronic Component Description
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
Control Module References Programming and Relearning for scan tool information
Circuit/System Verification
Warning:
Refer to Parking Brake and Drive Wheels Warning Parking Brake and Drive Wheels Warning.
Note:
If other DTCs are set, diagnose those DTCs first.
1. Engine idling in Park, with parking brake applied and drive wheels chocked.
2. Verify correct transmission fluid level and condition. Refer to Transmission Fluid Level and Condition Check Transmission Fluid Level and Condition Check.
3. Verify with a scan tool the Transmission Fluid Pressure Switch 3 parameter values are correct for the Park, Reverse, and Neutral gear selector positions. Refer to Transmission Fluid Pressure Switch Logic Transmission Fluid Pressure Switch Logic.
• If not the correct values for TFP Switch 3
Refer to Circuit/System Testing below.
• If TFP Switch 3 values are correct
4. Gear select lever in Drive range. Verify the Transmission Fluid Pressure Switch 3 parameter states are correct for all forward ranges when commanded with a scan tool. Refer to Transmission Fluid Pressure Switch Logic Transmission Fluid Pressure Switch Logic.
• If not the correct values for TFP Switch 3
Refer to Circuit/System Testing below.
• If TFP Switch 3 values are correct
5. Ignition ON, clear the TCM DTCs.
6. Perform the Road Test Initial Inspection and Diagnostic Overview. Verify the transmission operation performs as indicated in the road test instructions and DTC P2714 or P2715 did not set.
• If DTC P2714 or P2715 sets
Refer to Circuit/System Testing below.
• If DTC P2714 or P2715 did not set
7. After performing the above steps, verify that the DTC does not reset by operating the vehicle within the Conditions for Running the DTC. You may also operate the vehicle within the conditions you observe from the Freeze Frame/Failure Records data. If the vehicle passes the Circuit/System Verification procedure, then STOP. Do not perform the Circuit/System Testing or Component Testing as this may result in an unnecessary part replacement. Refer to Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections.
Circuit/System Testing
Note:
You must perform the Circuit/System Verification first.
1. Verify the transmission line pressures are within the range specified in the Line PC Solenoid Valve Pressure table. Refer to Line Pressure Check Line Pressure Check and Solenoid Valve Pressure (Gen 1) Solenoid Valve Pressure (Gen 1)Solenoid Valve Pressure (Gen 2) Solenoid Valve Pressure (Gen 2).
• If the line pressures are not within the specified ranges
Refer to Fluid Pressure High or Low Fluid Pressure High or Low.
• If the line pressures are within the specified ranges
2. Ignition OFF, remove the Q8 control solenoid valve assembly. Refer to Control Solenoid Valve and Transmission Control Module Assembly Replacement Service and Repair.
3. Perform the Control Solenoid Valve and Transmission Control Module Assembly Solenoid Performance Test Control Solenoid Valve and Transmission Control Module Assembly Solenoid Performance Test. Test all solenoids on the Q8 control solenoid valve assembly. A pressure change should occur for each solenoid tested.
• If a pressure change does not occur for each solenoid
Replace the Q8 control solenoid valve assembly.
• If a pressure change occurs for each solenoid

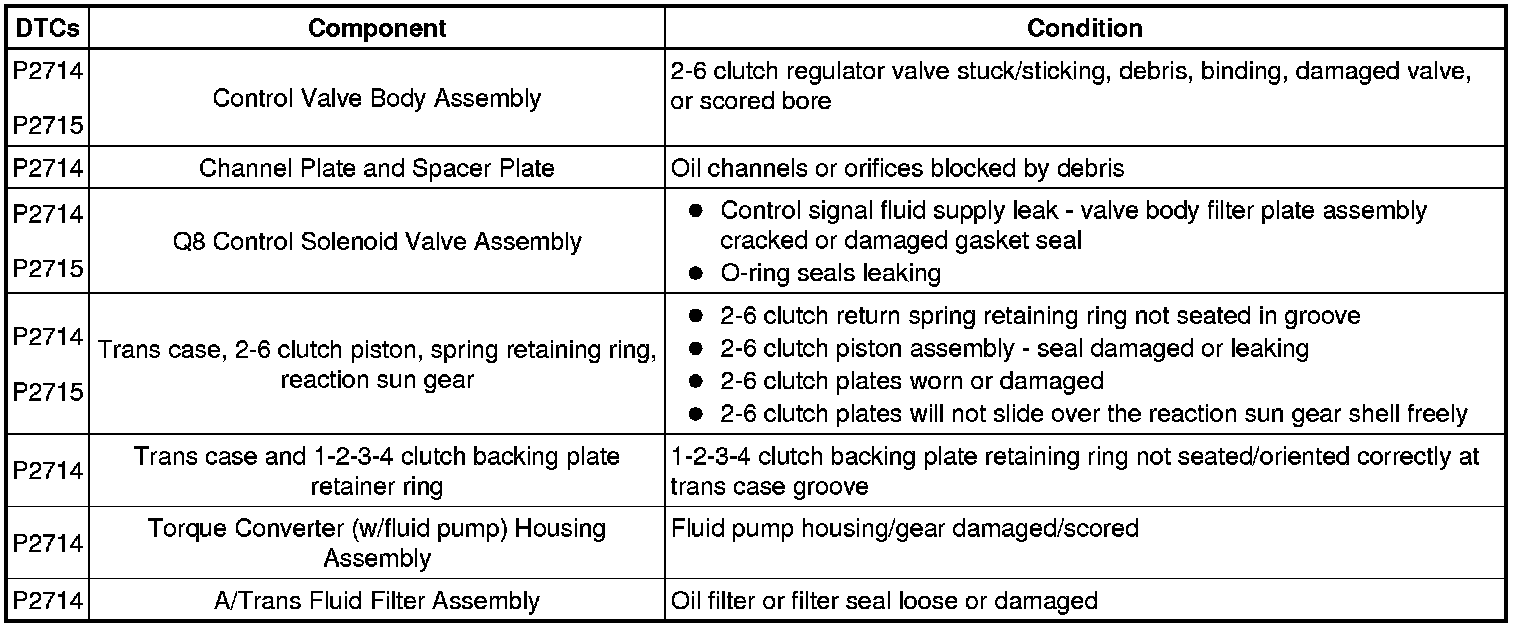

4. Listed in the chart below, are conditions for each component that could set DTC P2714 or P2715. Carefully inspect each component for that condition. Repair or replace as necessary
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
Note:
Before replacing the TCM, perform the Control Solenoid Valve and Transmission Control Module Assembly Inspection Control Solenoid Valve and Transmission Control Module Assembly Inspection.
* Refer to Control Module References Programming and Relearning for control solenoid valve assembly replacement, programming and setup.
* Perform the Transmission Adaptive Values Learn Programming and Relearning following all transmission related repairs.
* Perform the:
- Internal Components Removal 9. Internal Components Removal
- 2-6 Clutch Piston Removal 10. 2-6 Clutch Piston Removal
- Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble (Gen 2) 20. Low - Reverse and 1-2-3-4 Clutch Housing, Low - Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble
- 2-6 Clutch Piston Installation (6T40/45/50) 19. 2-6 Clutch Piston Installation
- 3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation
