Instrument Panel Fuse Block

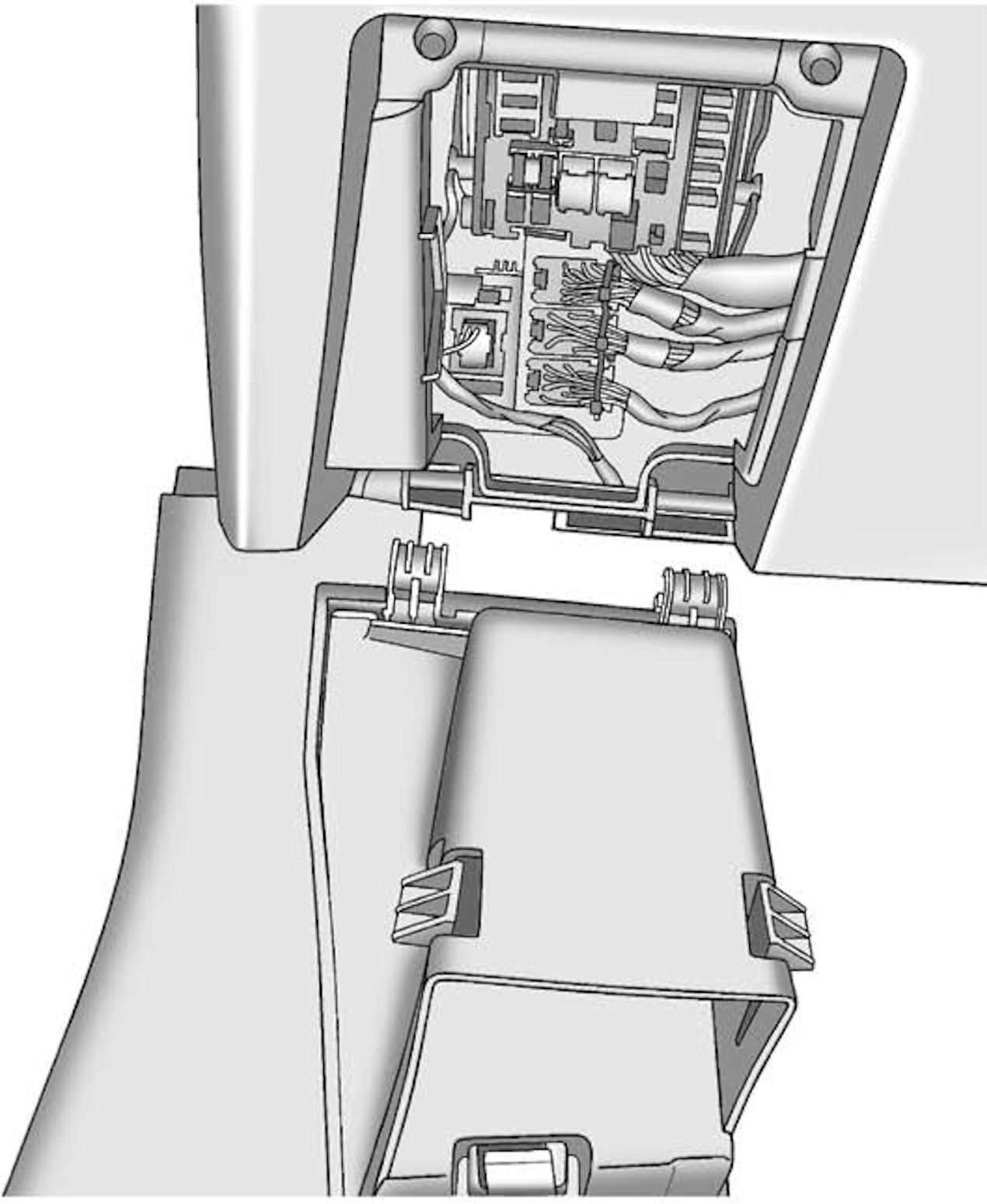

The instrument panel fuse block is located on the end of the instrument panel, on the driver side of the vehicle. To access the fuses, open the fuse panel door by pulling down at the top.

Press in on the sides of the door to release it from the instrument panel.






Pull the door toward you to release it from the hinge.

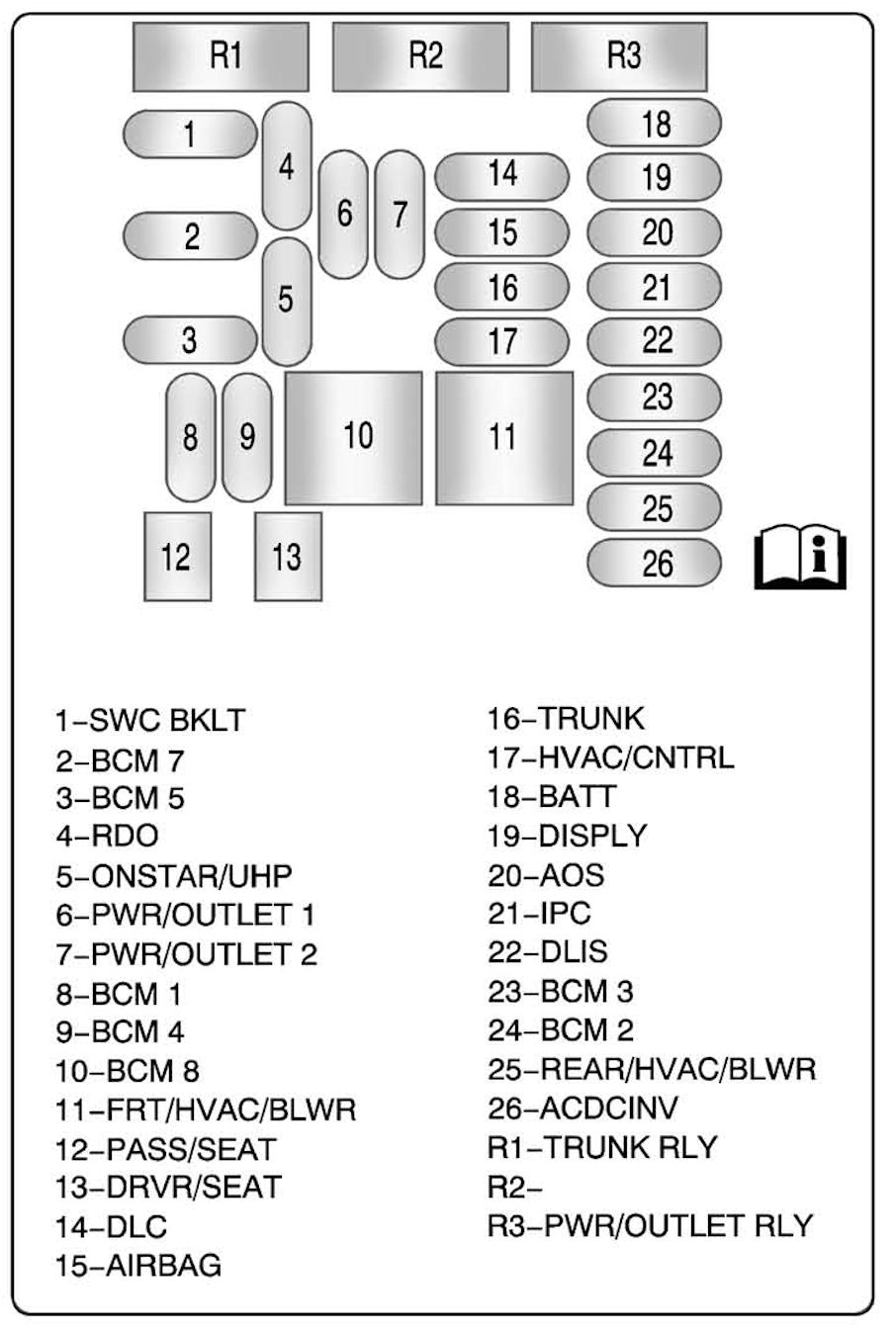

Instrument Panel Fuse Block

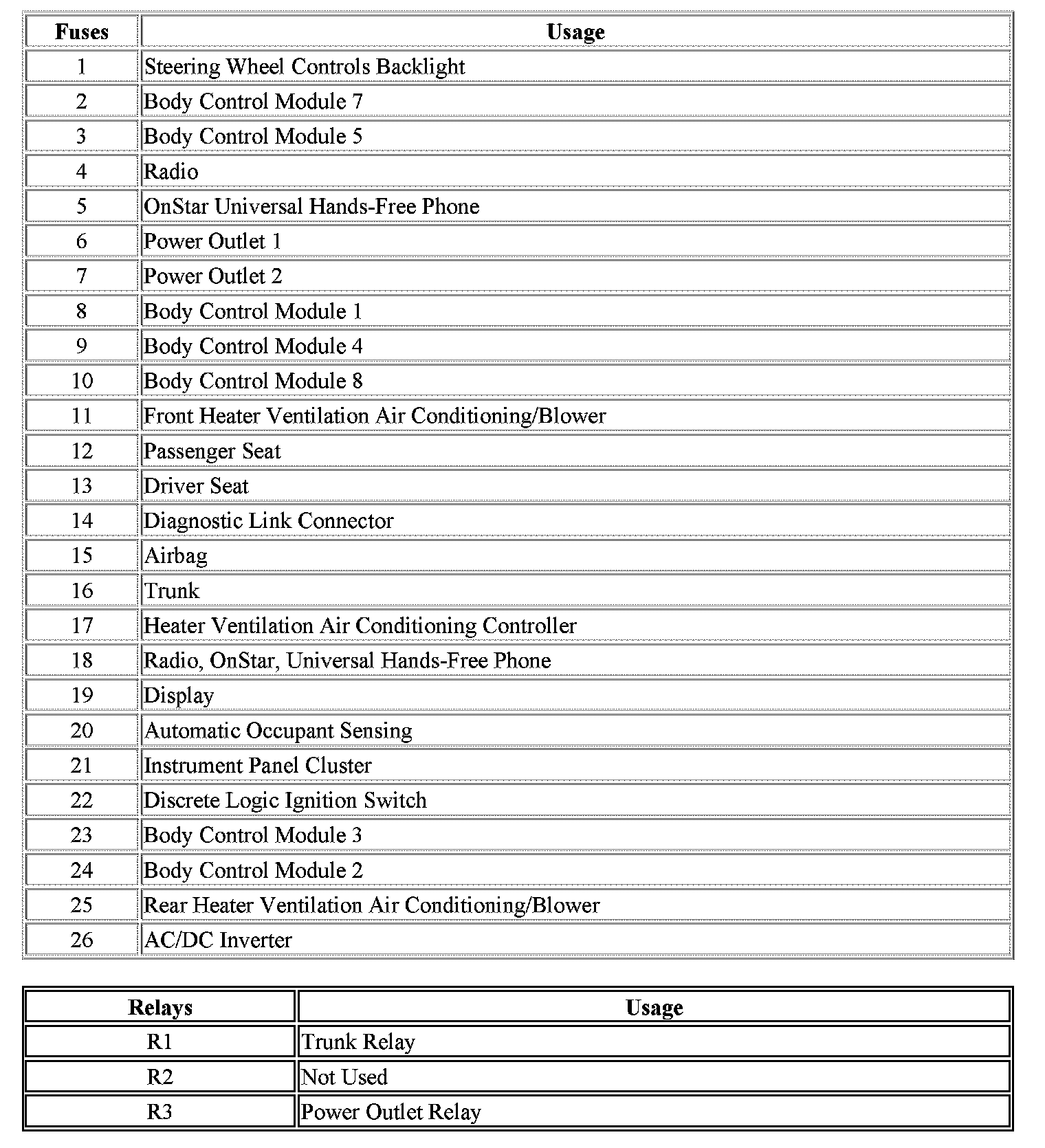

The vehicle may not be equipped with all of the fuses, relays, and features shown.
