Wheel Alignment Specifications





WHEEL ALIGNMENT SPECIFICATIONS

Condition: Full tank, no passengers and placed on plane ground.

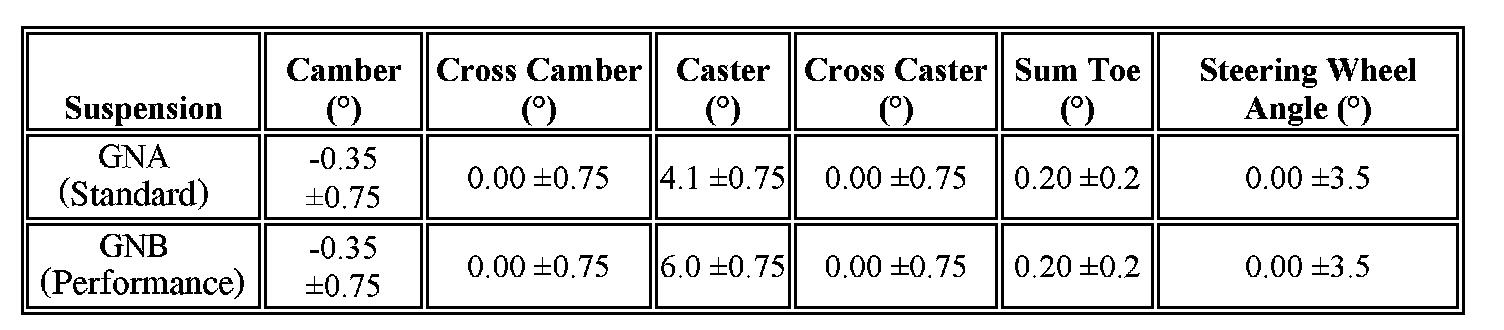

Front Suspension

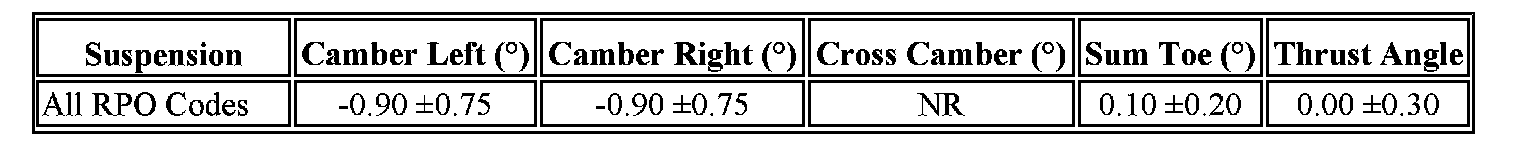

Rear Suspension
