Window Switch - Driver

Door Component Views

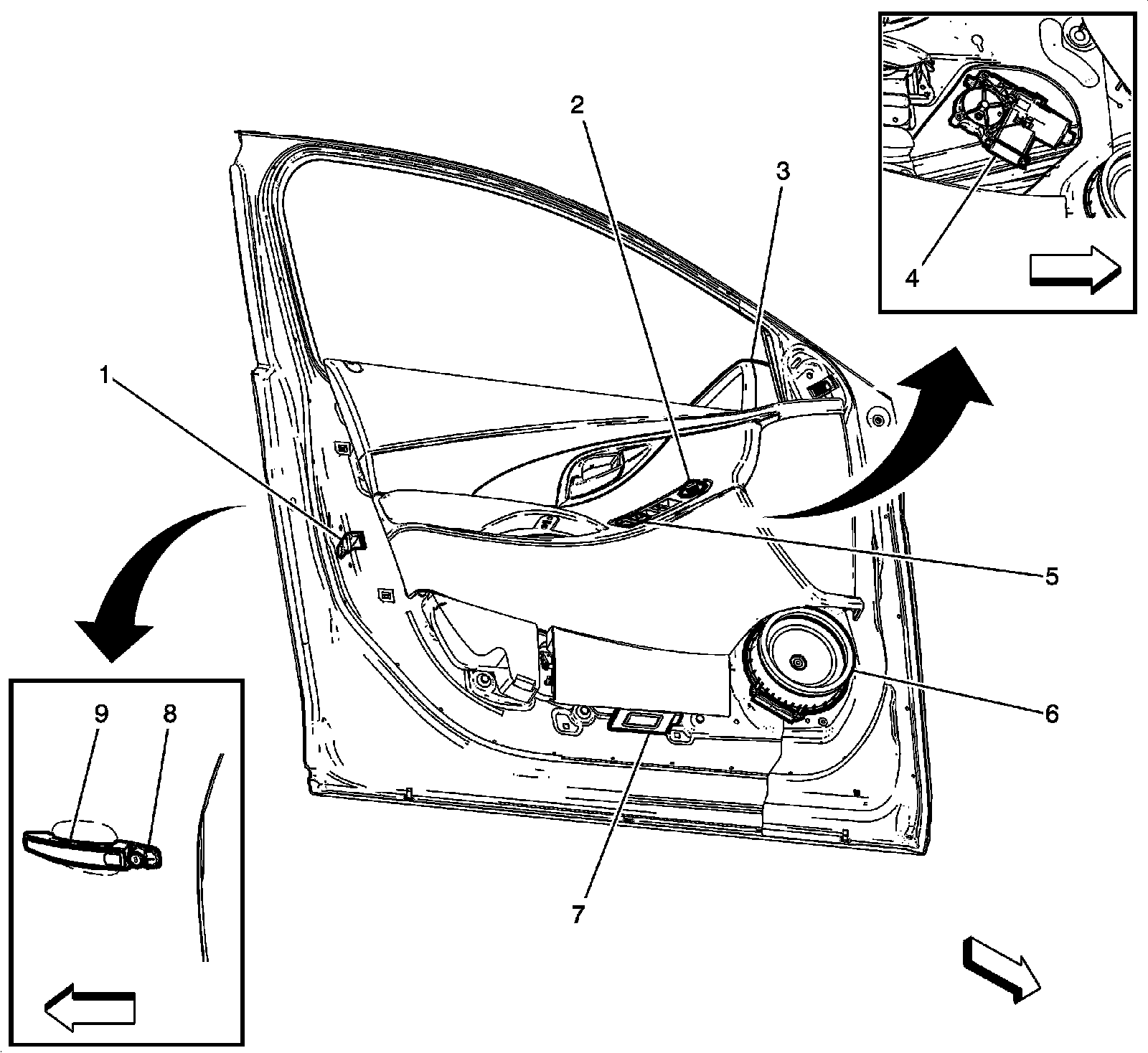

Left Front Door Components




1 - A23D Door Latch Assembly - Driver
2 - S52 Outside Rearview Mirror Switch
3 - A9A Outside Rearview Mirror - Driver
4 - M74D Window Motor - Driver
5 - S79D Window Switch - Driver
6 - P19AG Speaker - Left Front Door
7 - E8D Door Courtesy Lamp - Driver
8 - B27D Door Handle Switch - Driver Exterior (ATH)
9 - A24D Door Handle Assembly - Driver Exterior (ATH)
