Outside Rearview Mirror Switch (A45)

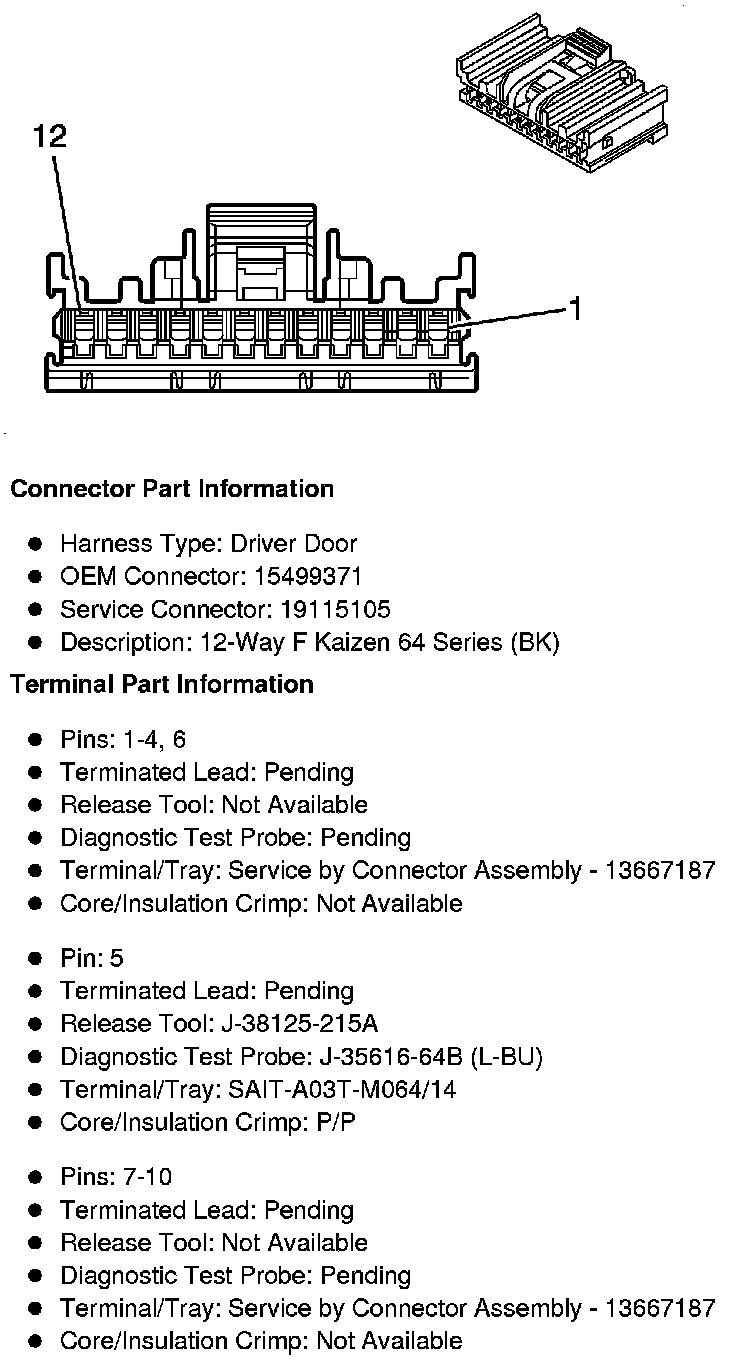

Component Connector End Views

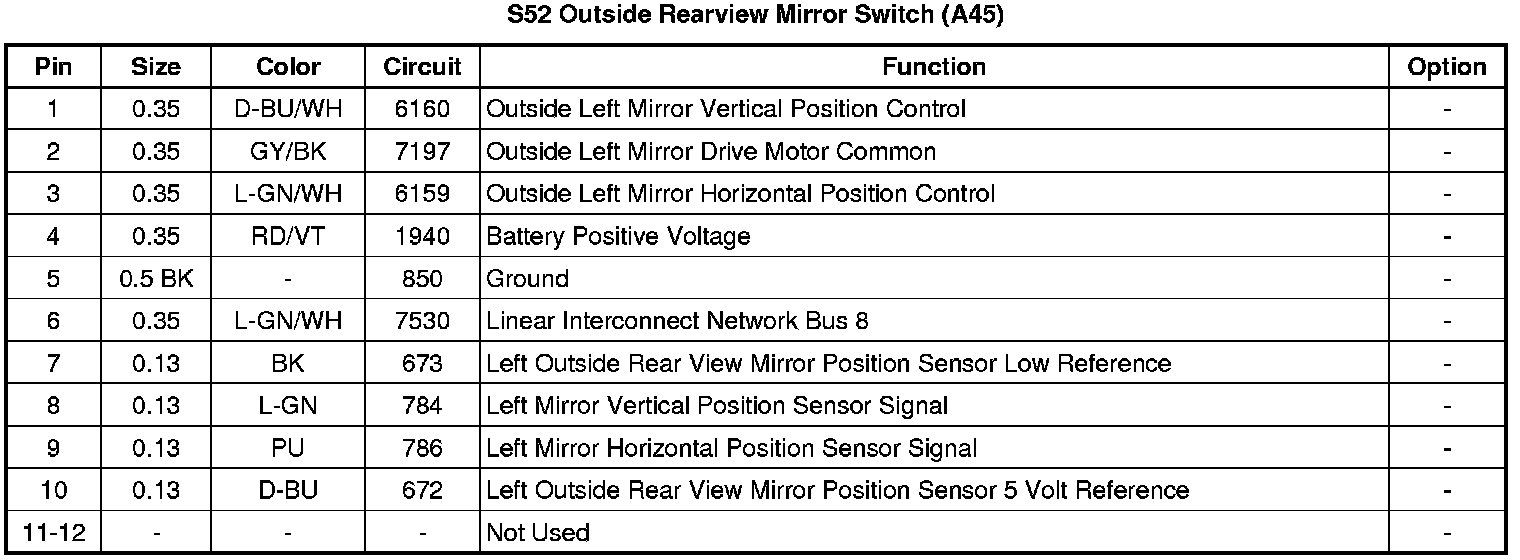

S52 Outside Rearview Mirror Switch (A45)
