Rear Window Sunshade Motor (DB3)

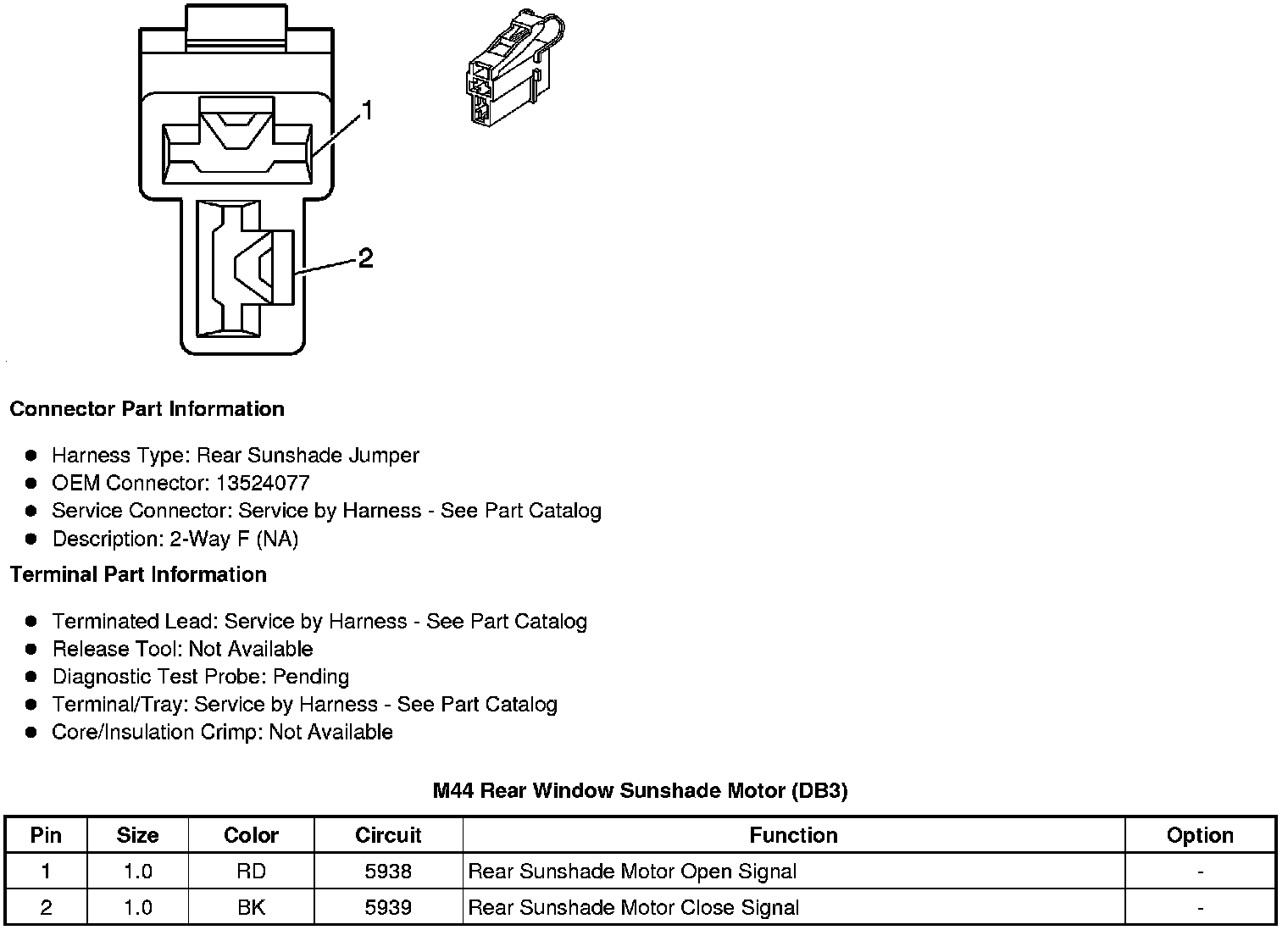

Component Connector End Views

M44 Rear Window Sunshade Motor (DB3)
