Accent Lamp - Right Lower Instrument Panel

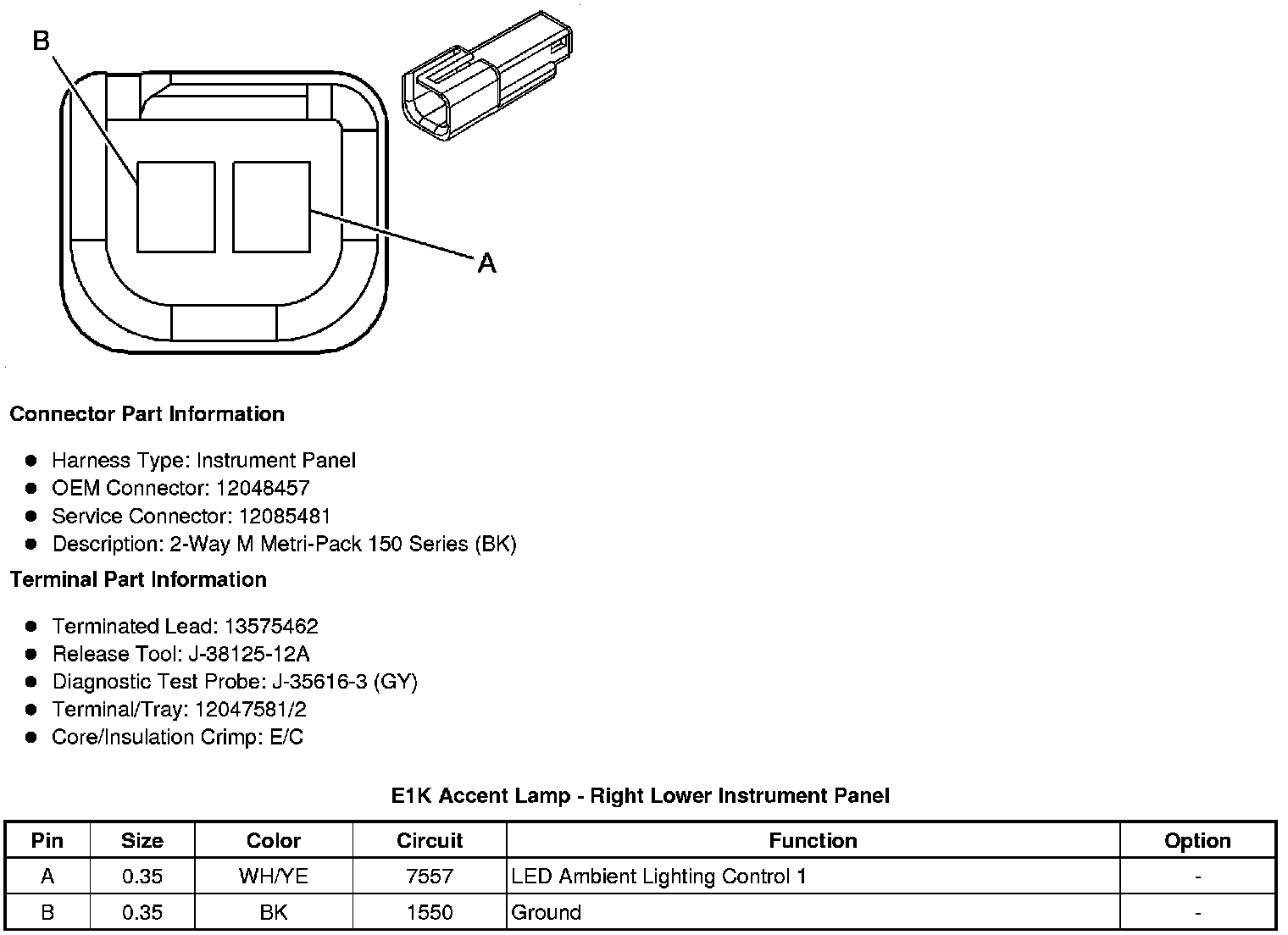

Component Connector End Views

E1K Accent Lamp - Right Lower Instrument Panel
