Home >> Buick >> 2012 >> LaCrosse AWD V6-3.6L >> Repair and Diagnosis >> Locations >> Component Locations >> Powertrain Component Views >> Transmission Components (MHH)

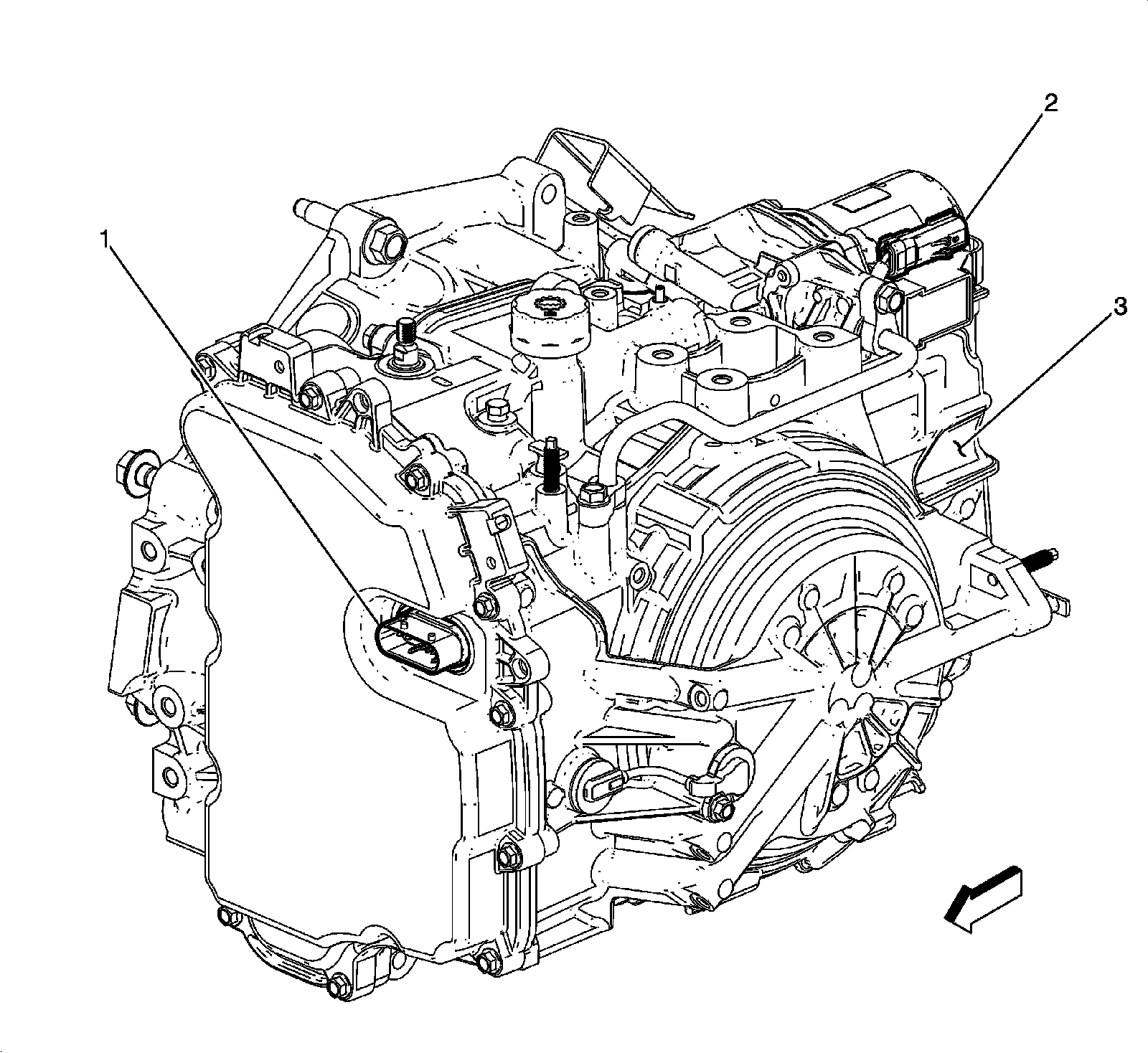

Transmission Components (MHH)




Powertrain Component Views

Transmission Components (MHH)




1 - Q8 Control Solenoid Valve Assembly
2 - G1 A/C Compressor
3 - T12 Automatic Transmission Assembly
