Home >> Buick >> 2012 >> LaCrosse AWD V6-3.6L >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Diagrams >> Fog Lamp - Left Front (T3U)

Fog Lamp - Left Front (T3U)

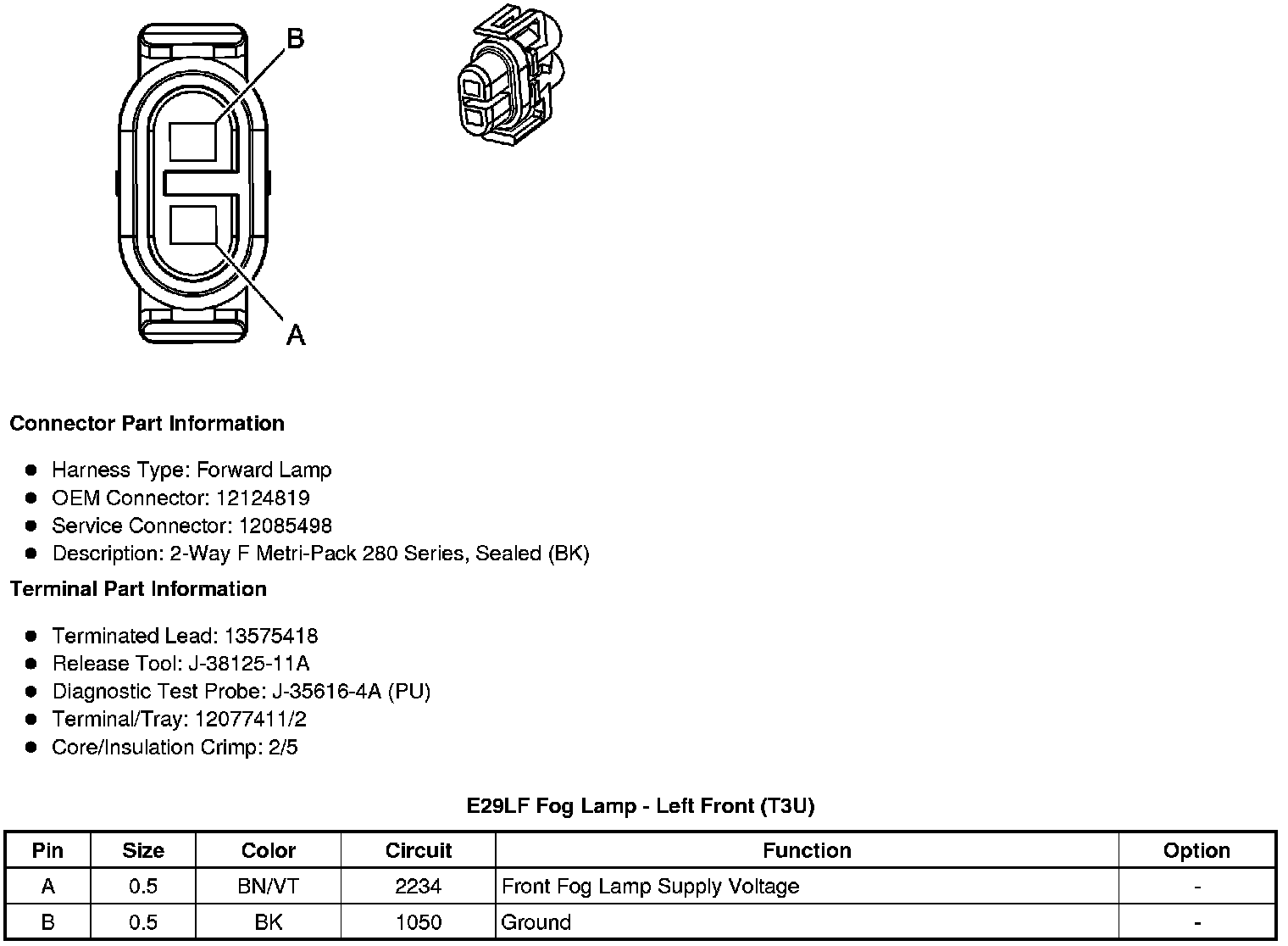

Component Connector End Views

E29LF Fog Lamp - Left Front (T3U)
