Engine Compartment Harness Routing - Top

Harness Routing Views

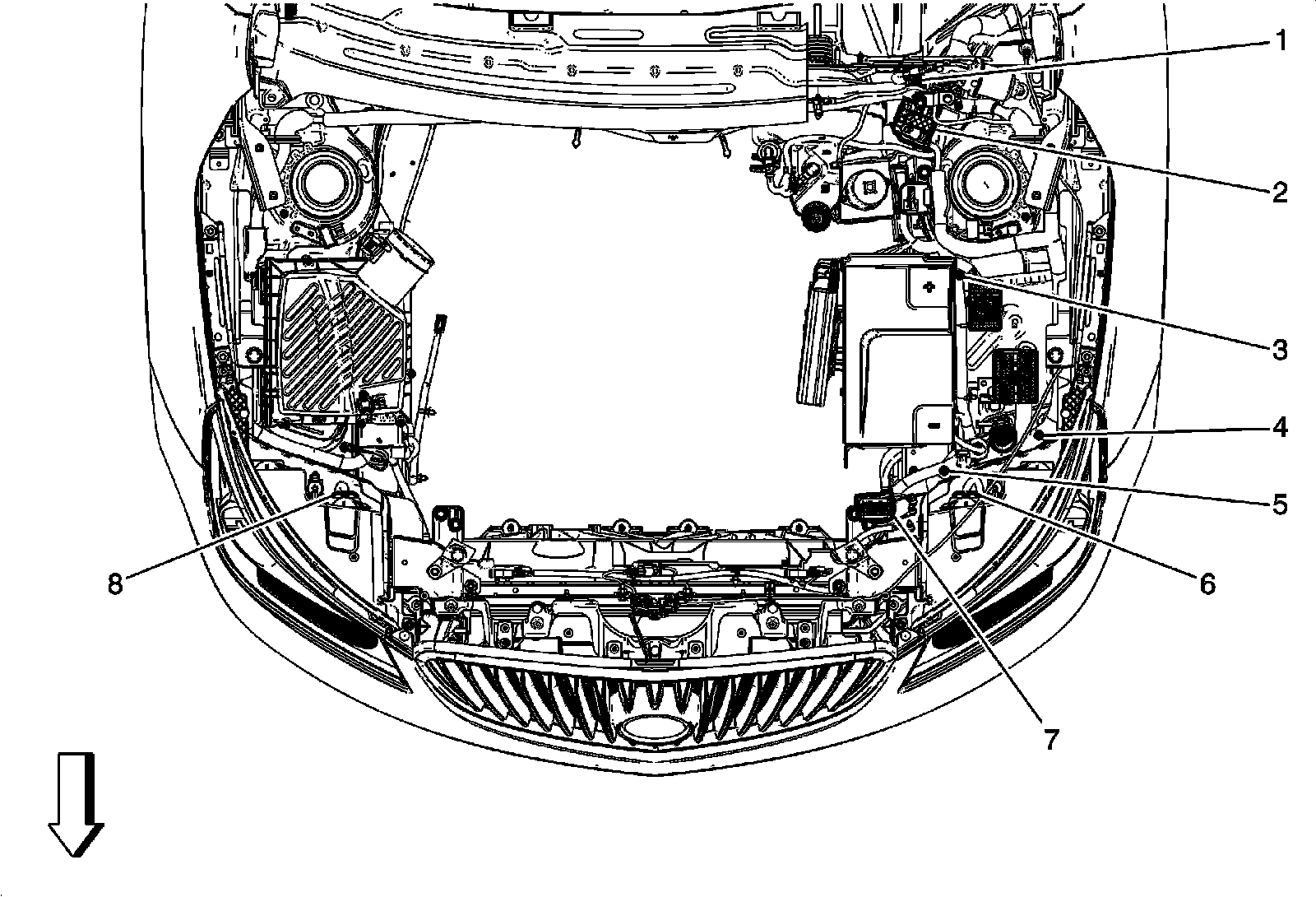

Engine Compartment Harness Routing - Top




1 - J106
2 - X102 (F45)
2 - X105
3 - J112
4 - J125
5 - J102
6 - X117 (T4A)
6 - X118 (T4F)
7 - X108
8 - X119 (T4A)
8 - X120 (T4F)
