Engine Compartment Harness Routing - Front

Harness Routing Views

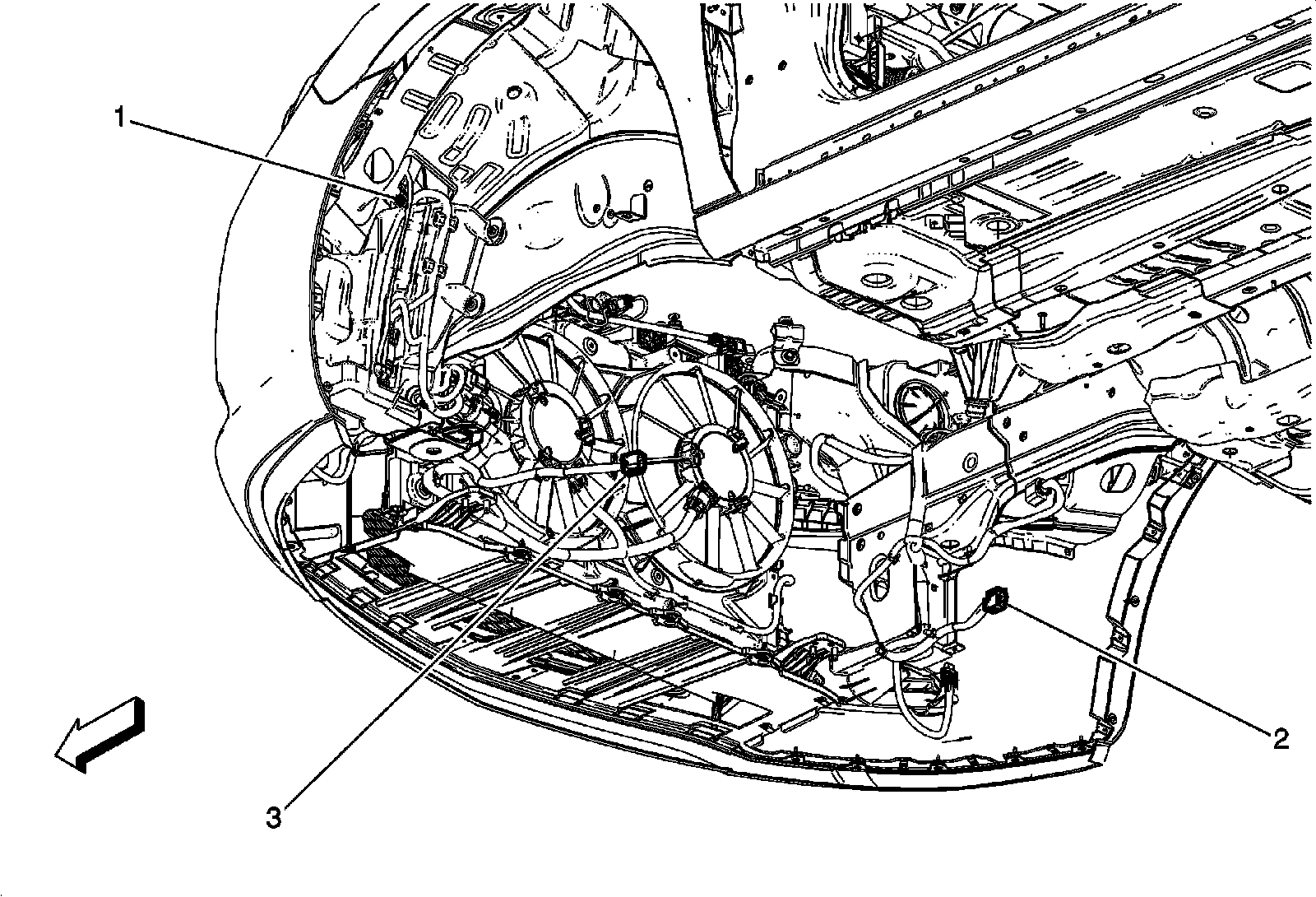

Engine Compartment Harness Routing - Front

1 - J101
2 - X104 (F45)
3 - X103 (F45)
