Power Distribution Schematics
Power Distribution Schematics

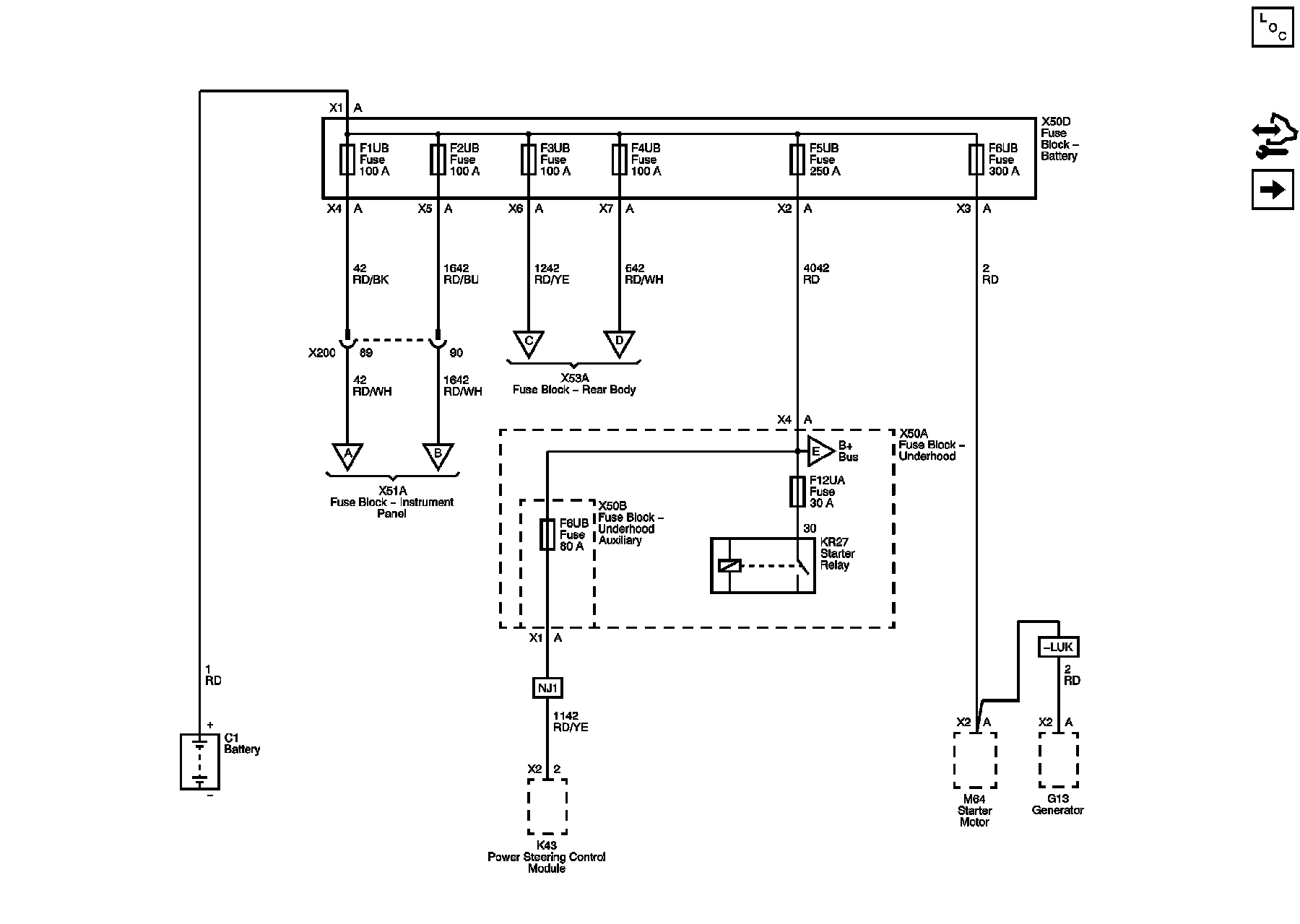

Battery Fuse Block

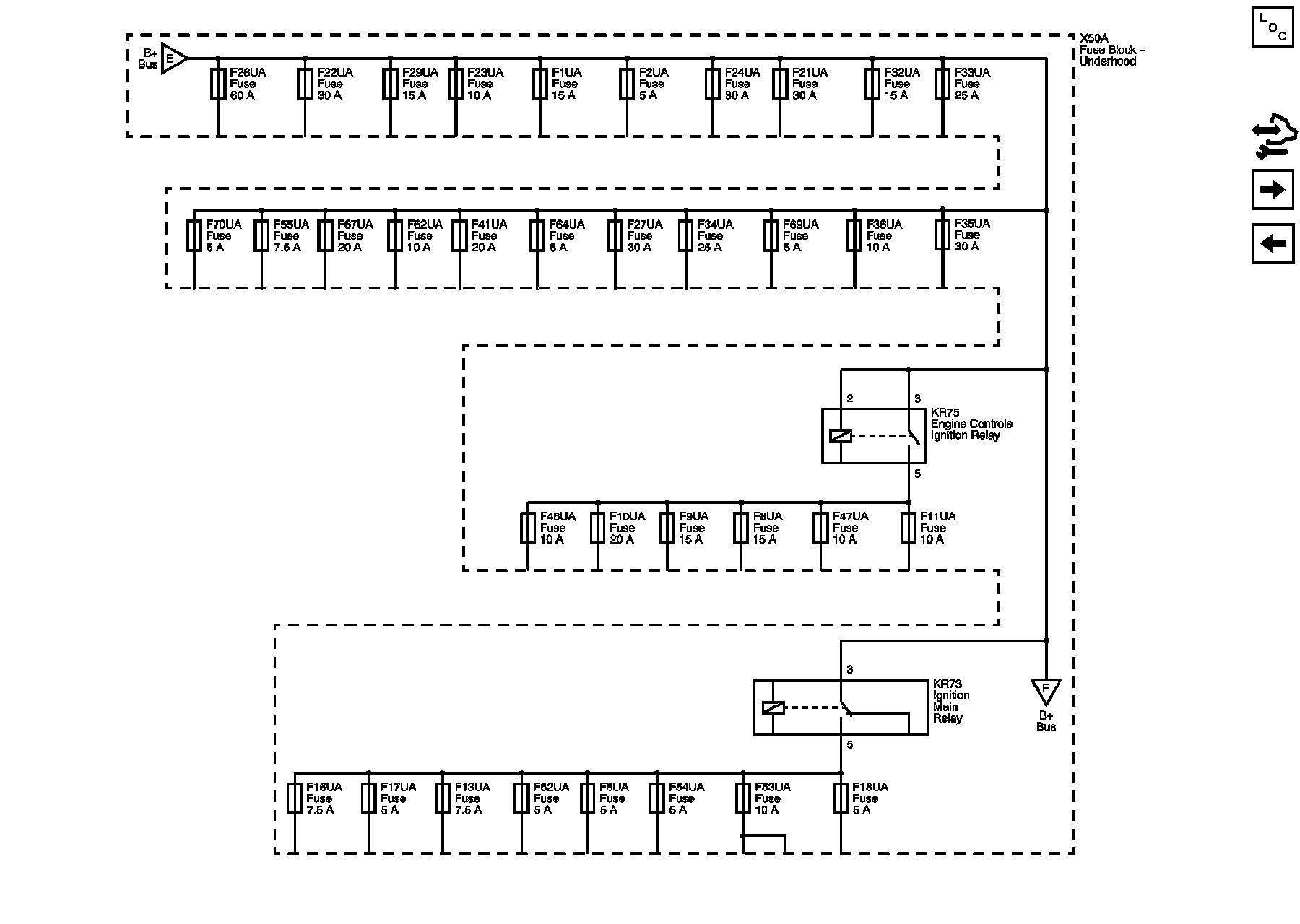

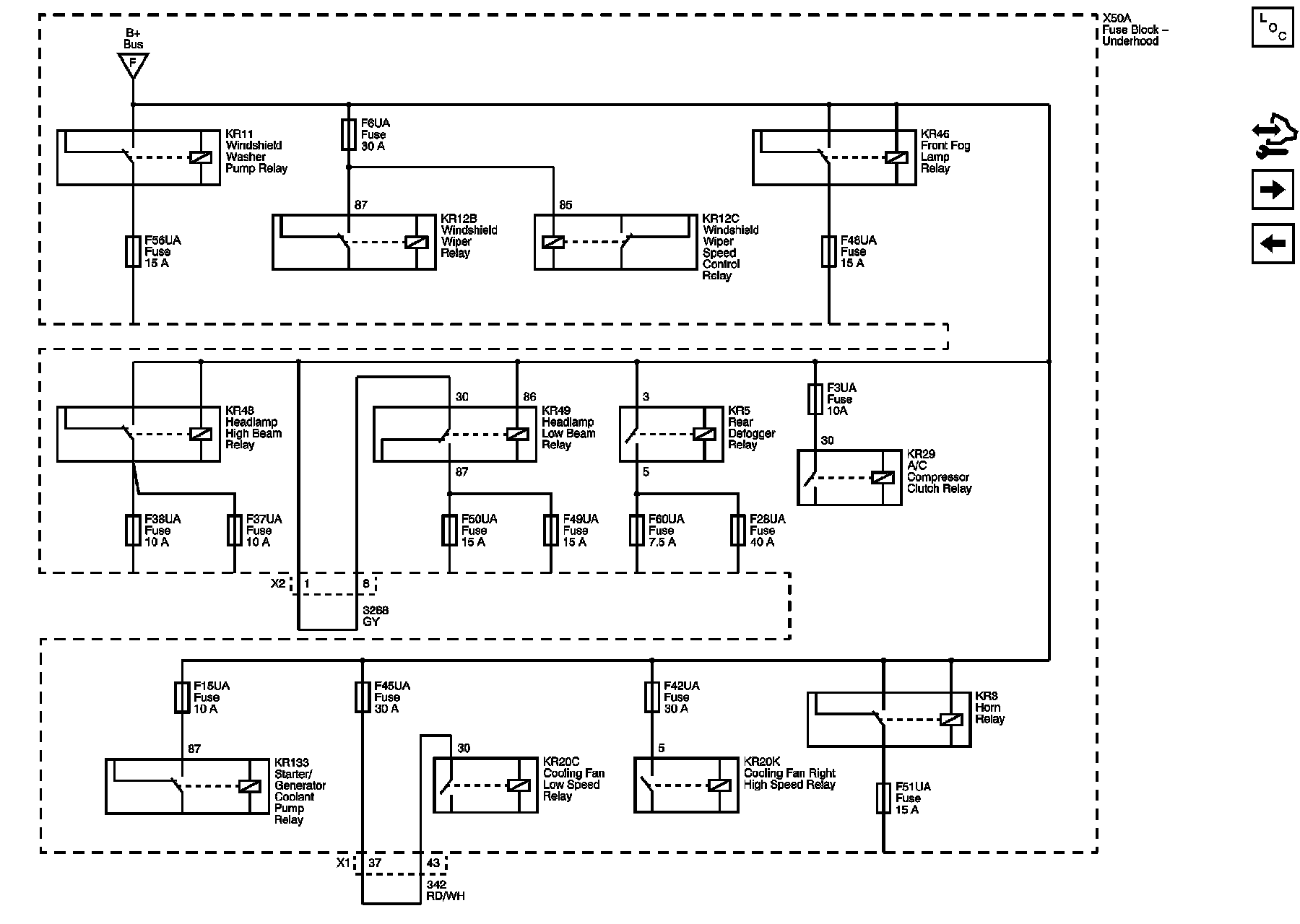

B+ Bus (1 of 2)
B+ Bus (2 of 2)

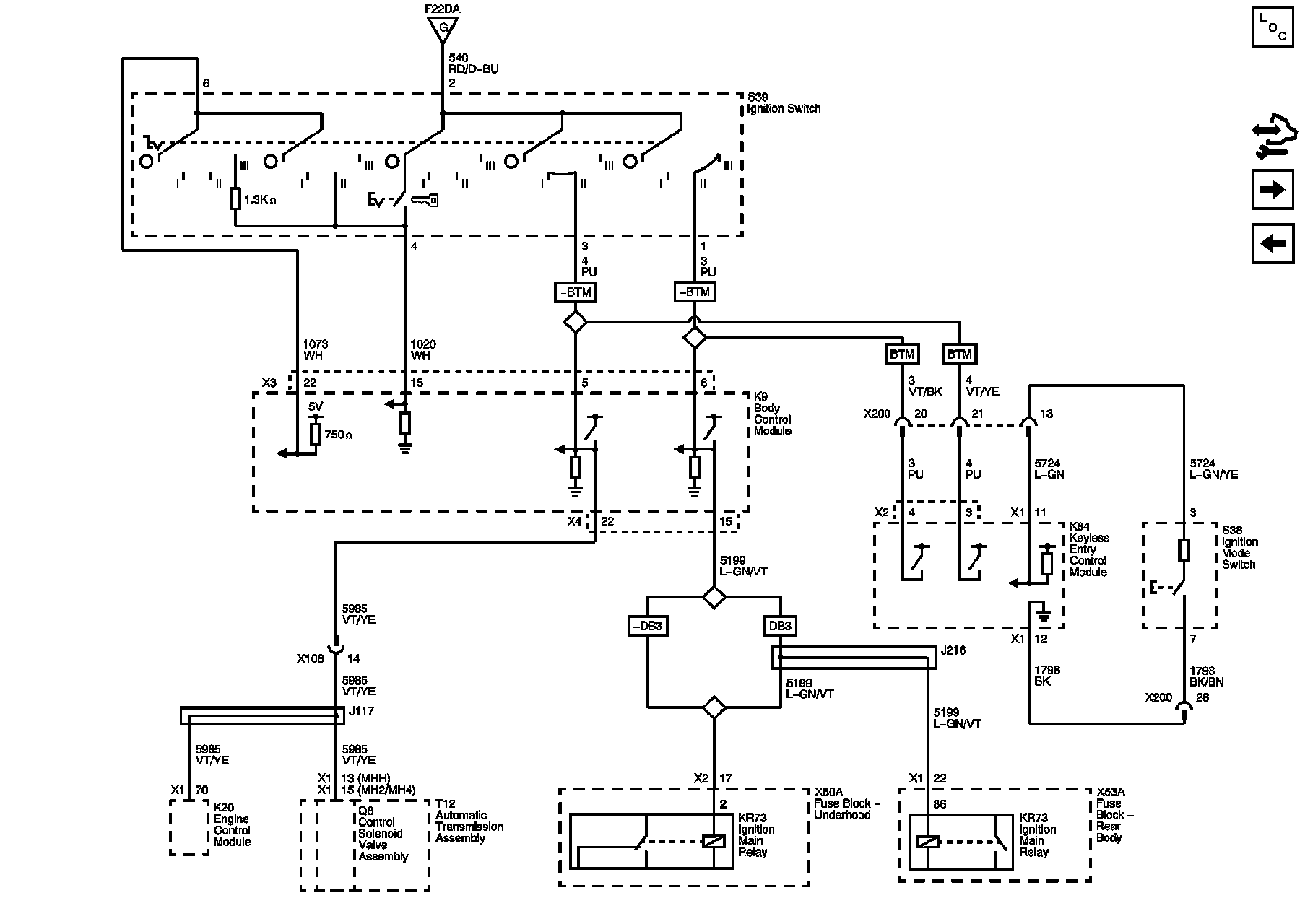

Ignition Switch

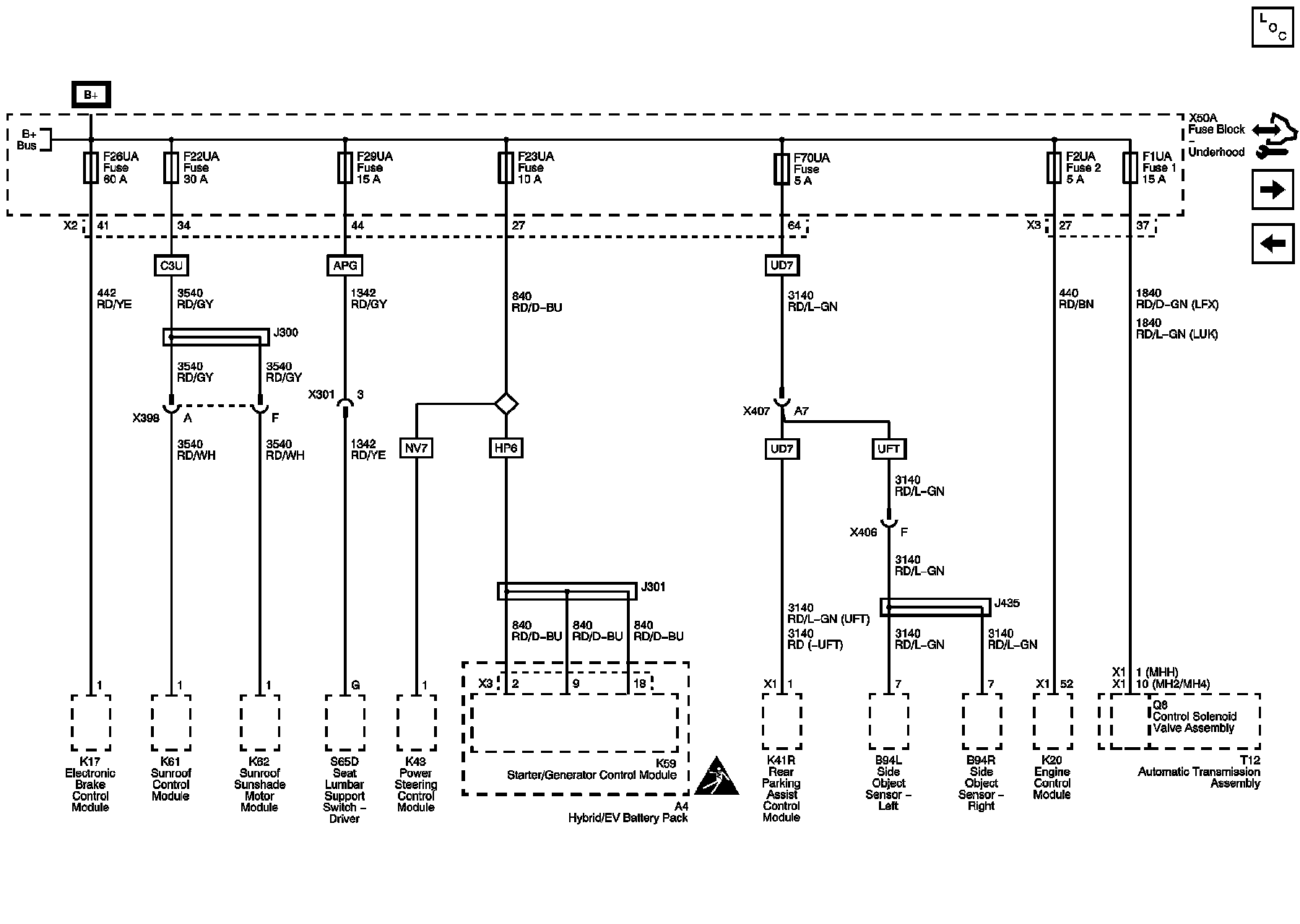

F1UA, F2UA, F22UA, F23UA, F26UA, F29UA, and F70UA Fuses

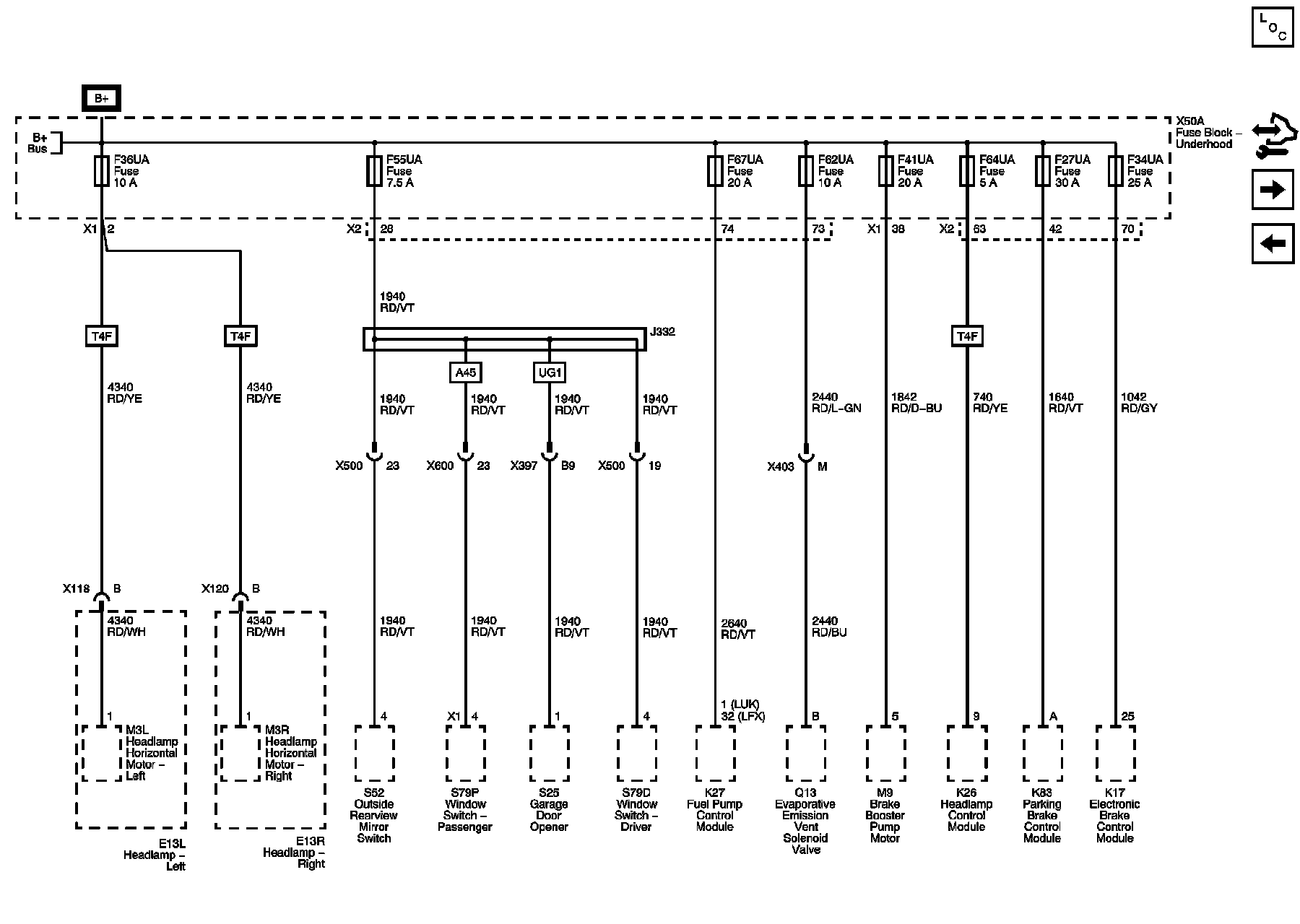

F27UA, F34UA, F36UA, F41UA, F55UA, F62UA, F64UA, and F67UA Fuses

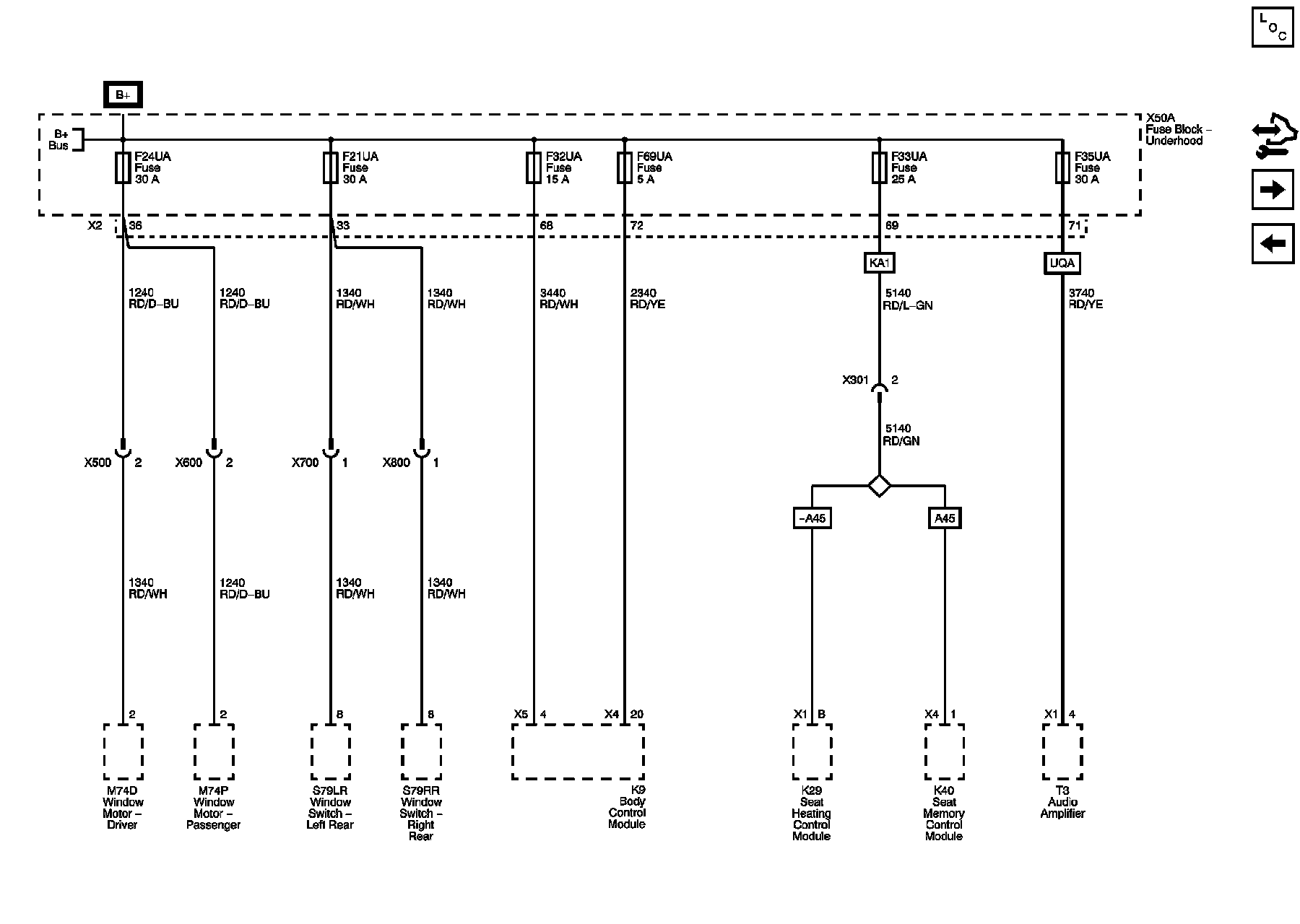

F21UA, F24UA, F32UA, F33UA, F35UA, and F69UA Fuses

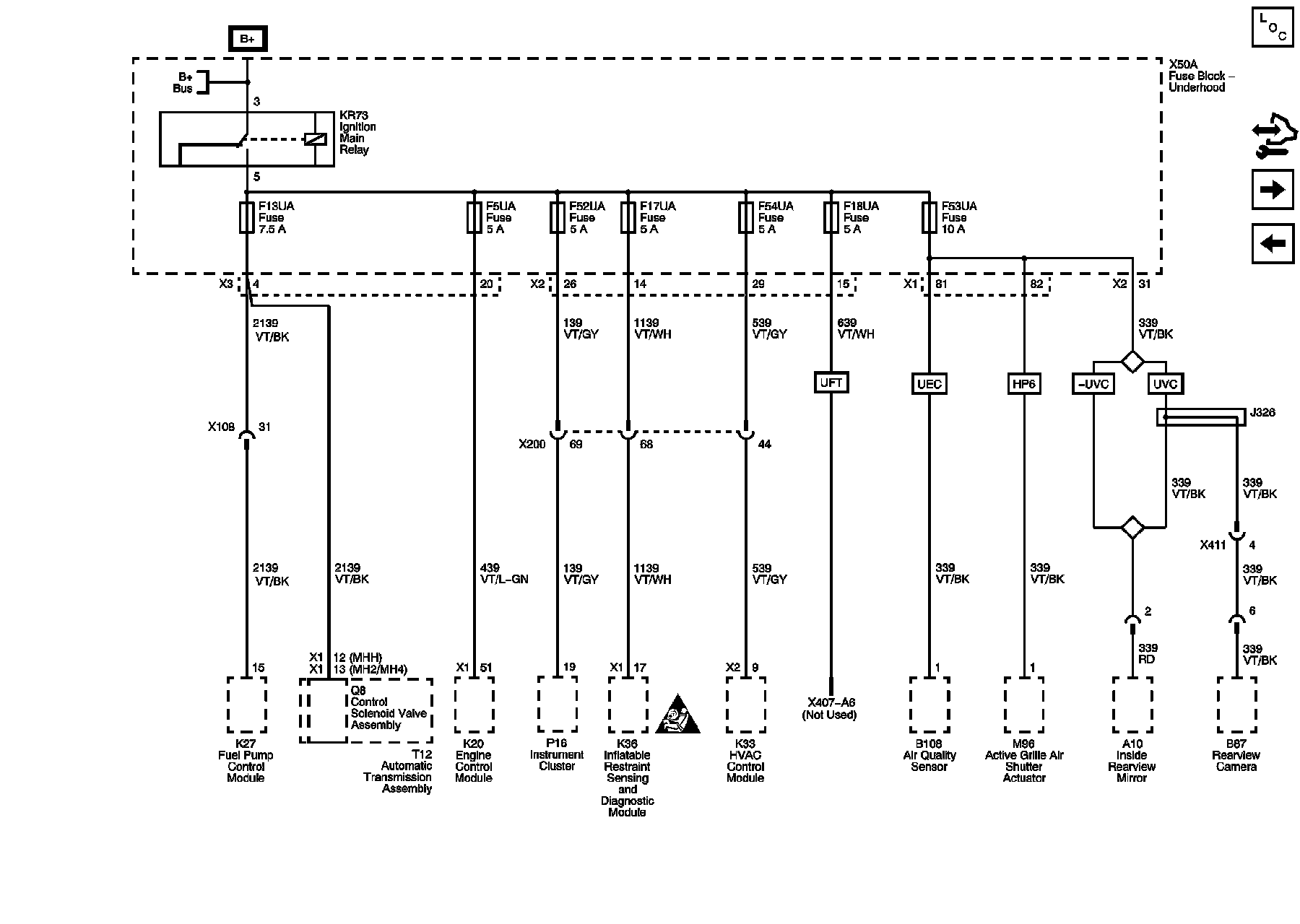

F5UA, F13UA, F17UA, F18UA, F52UA, F53UA, and F54UA Fuses

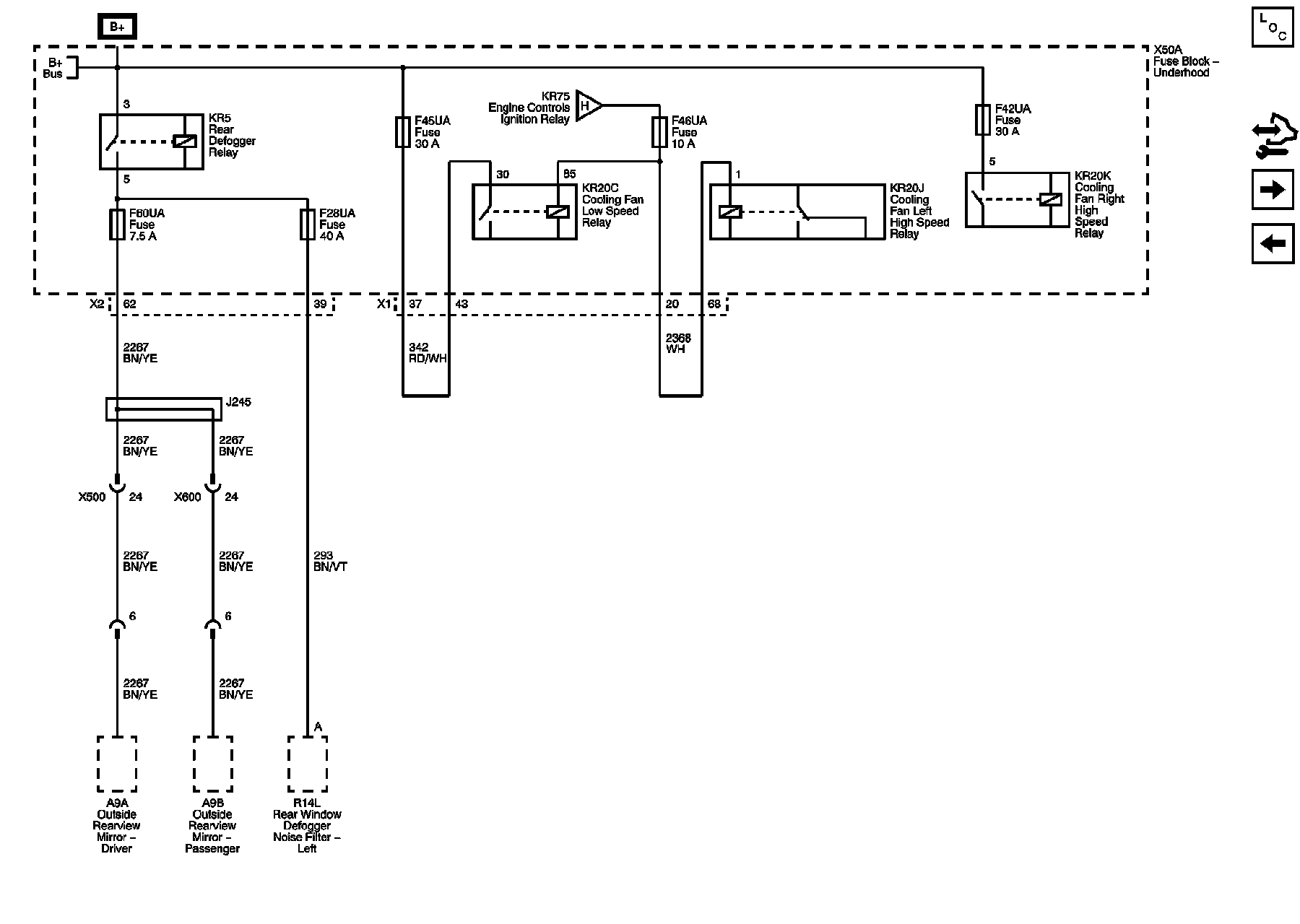

F28UA, F45UA, F46UA, and F60UA Fuses

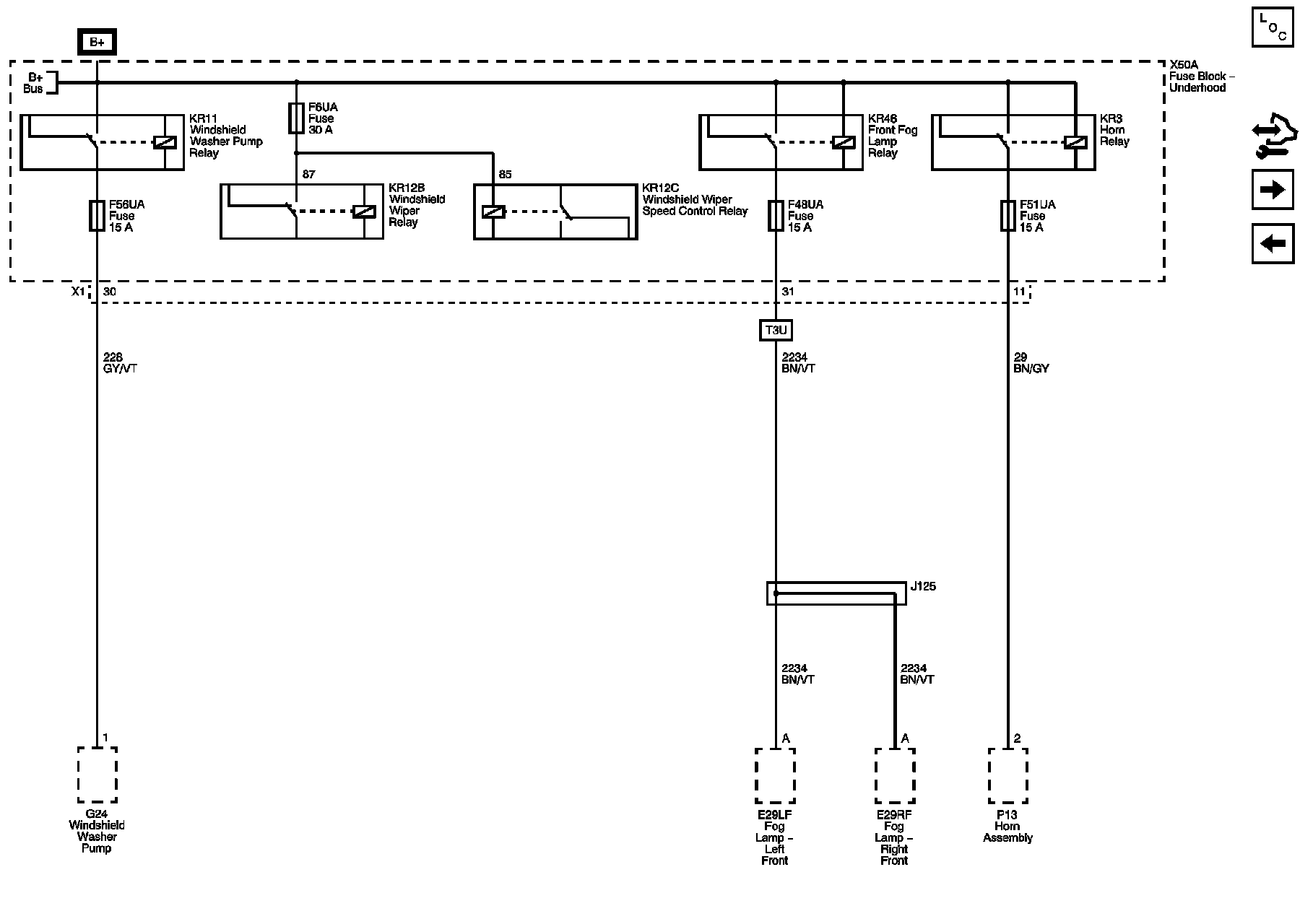

F6UA, F48UA, F51UA, and F56UA Fuses

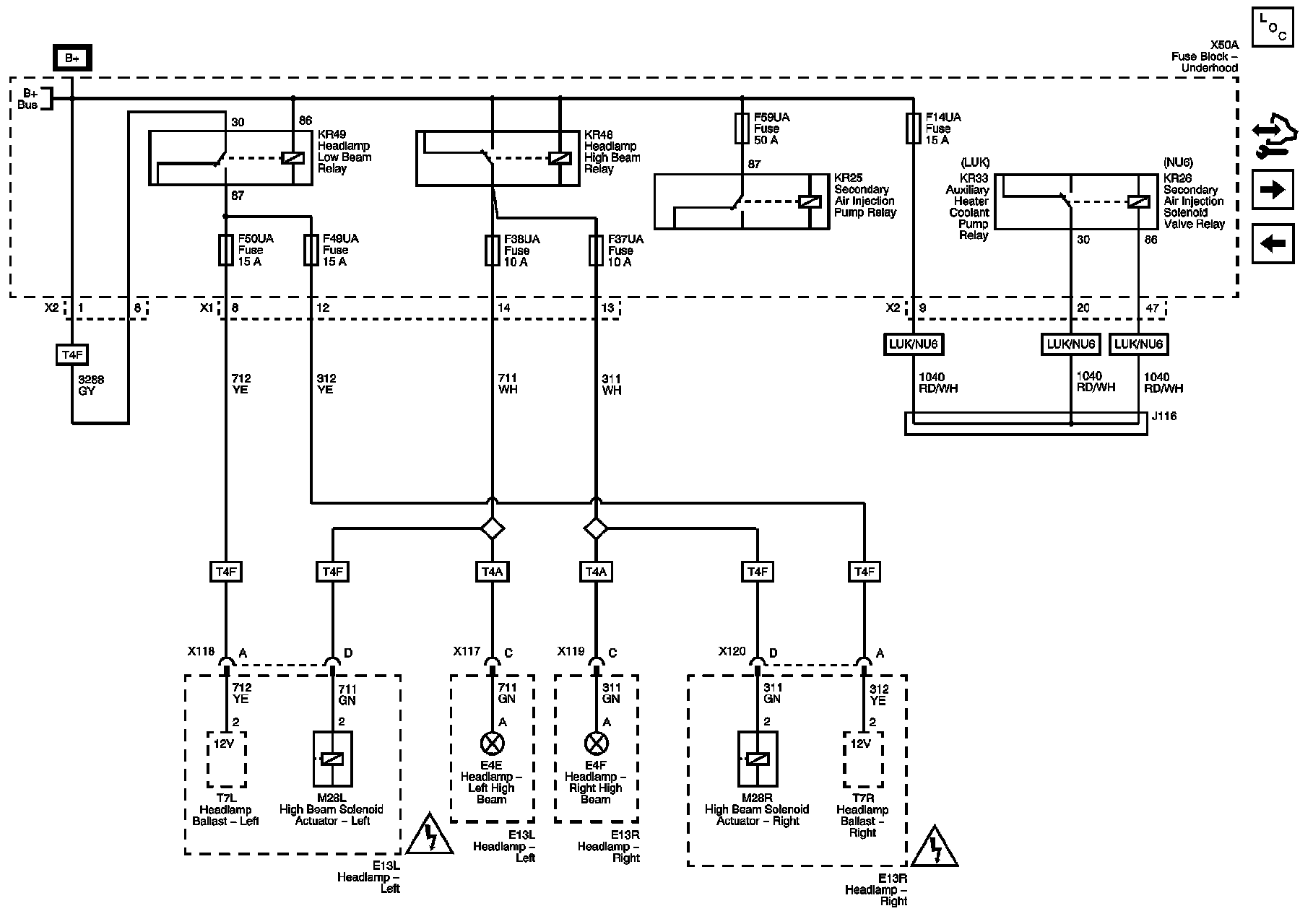

F14UA, F37UA, F38UA, F49UA, F50UA, and F59UA Fuses

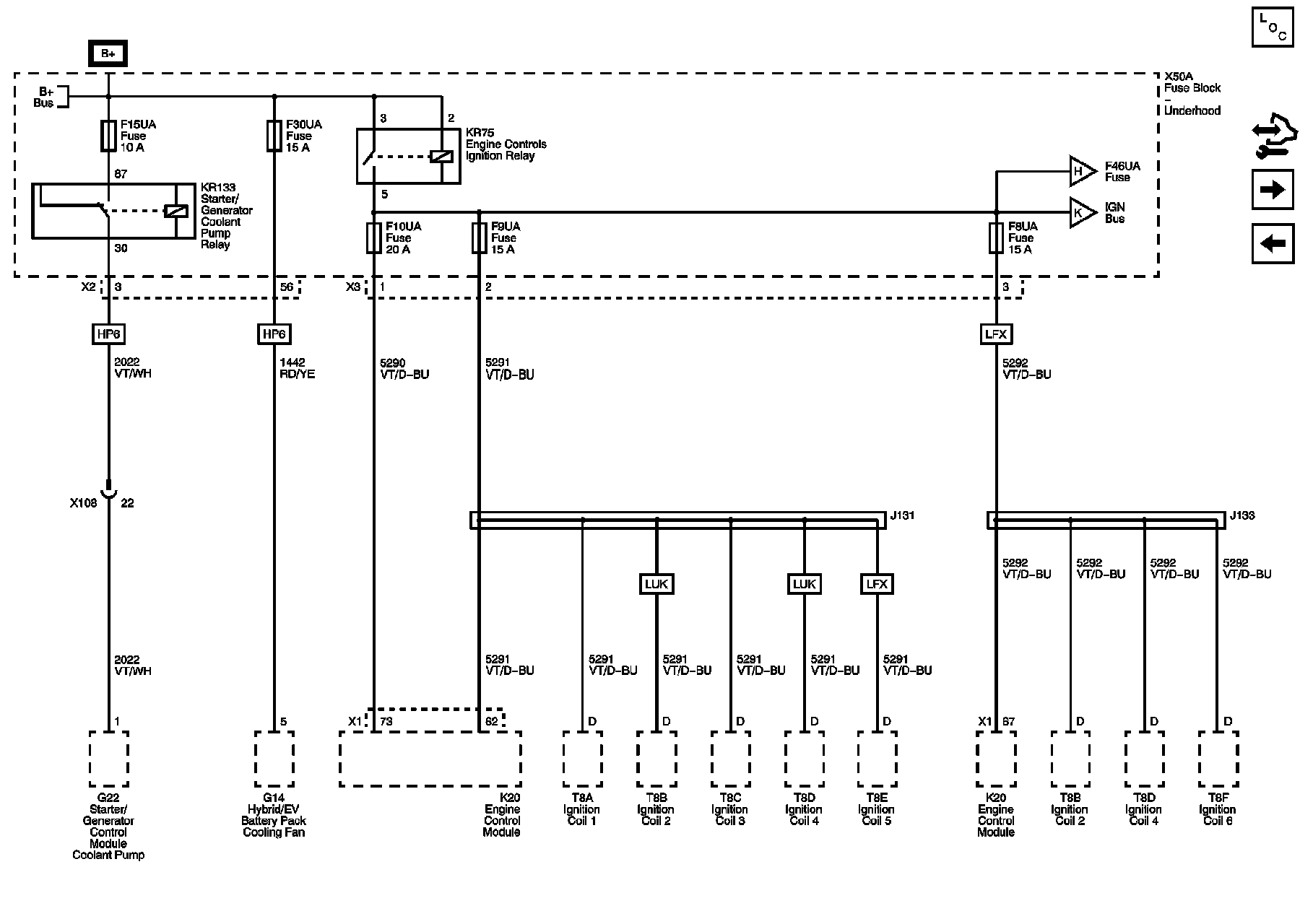

F8UA, F9UA, F10UA, F15UA and F30UA Fuses

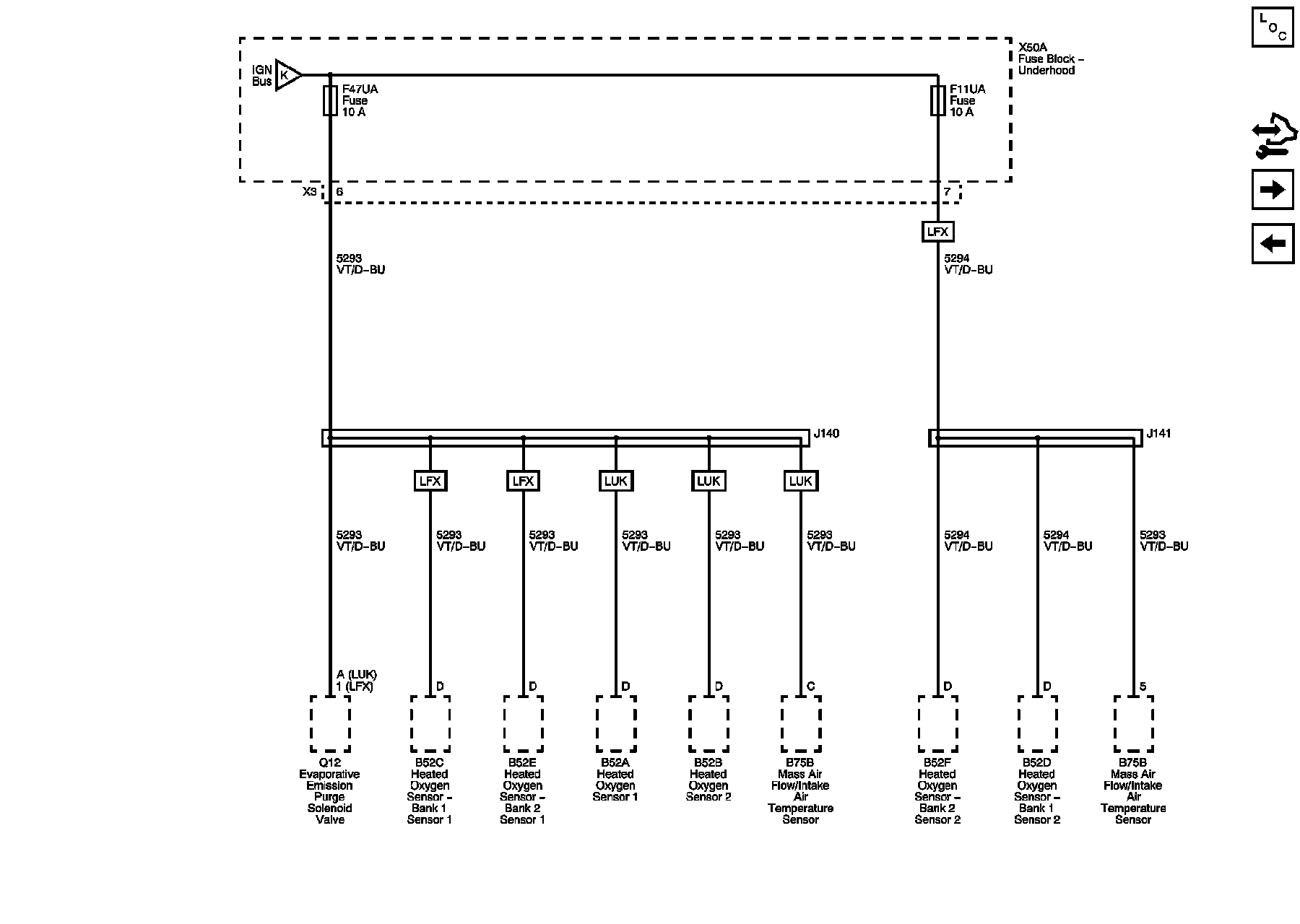

F11UA and F47UA Fuses

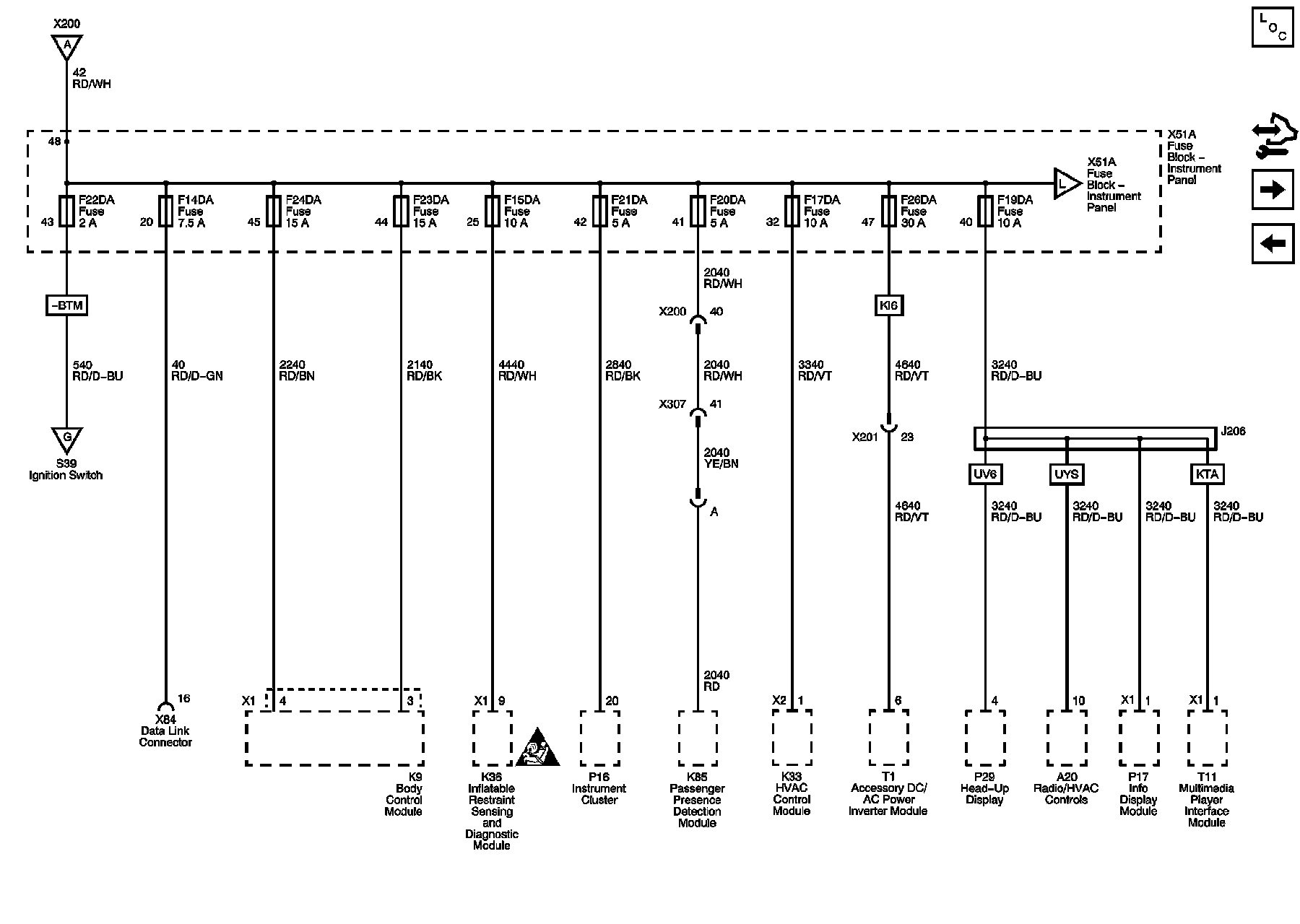

F14DA, F15DA, F17DA, F19DA, F20DA, F21DA, F22DA, F23DA, F24DA, and F26DA Fuses

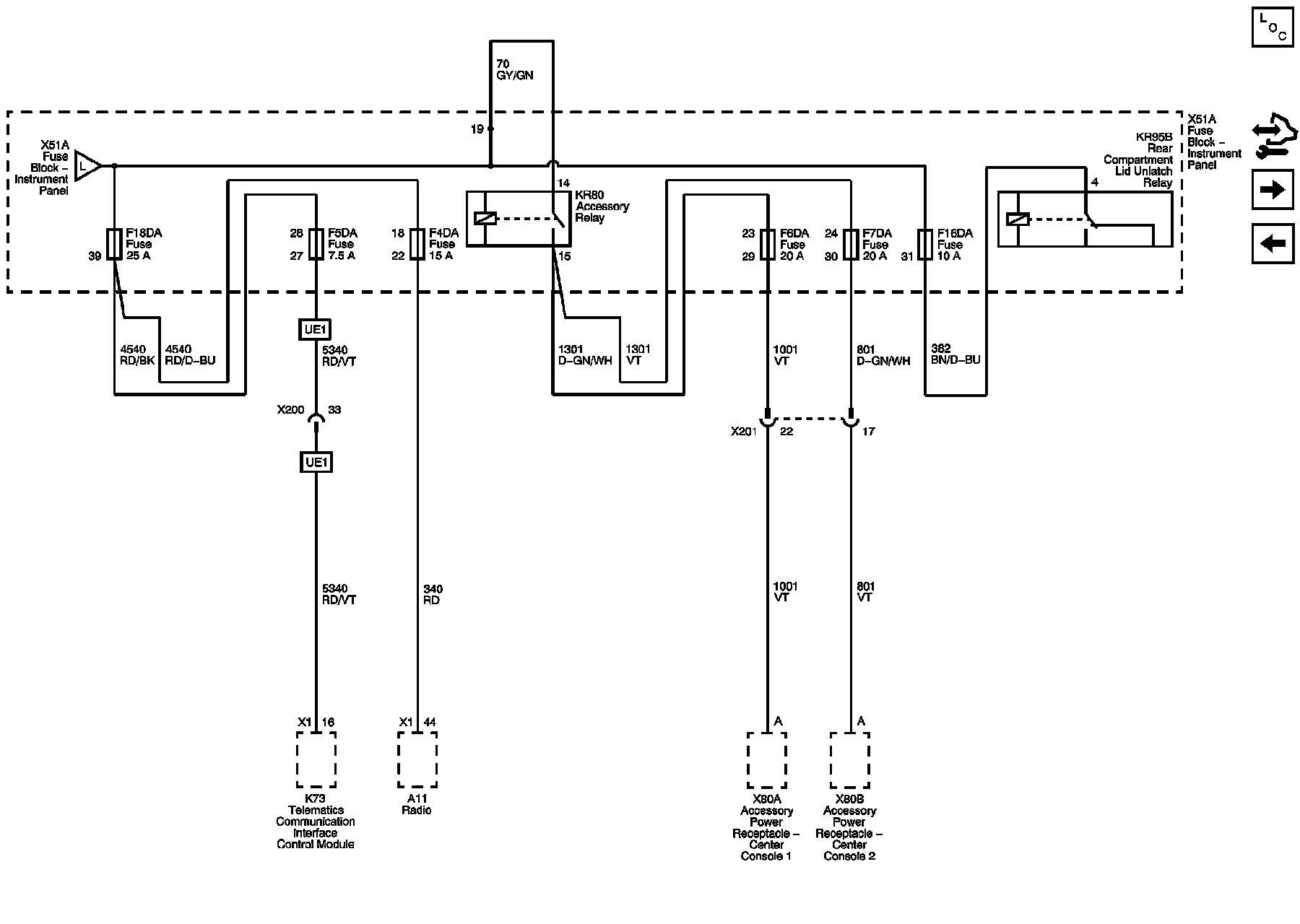

F4DA, F5DA, F6DA, F7DA, F16DA, and F18DA Fuses

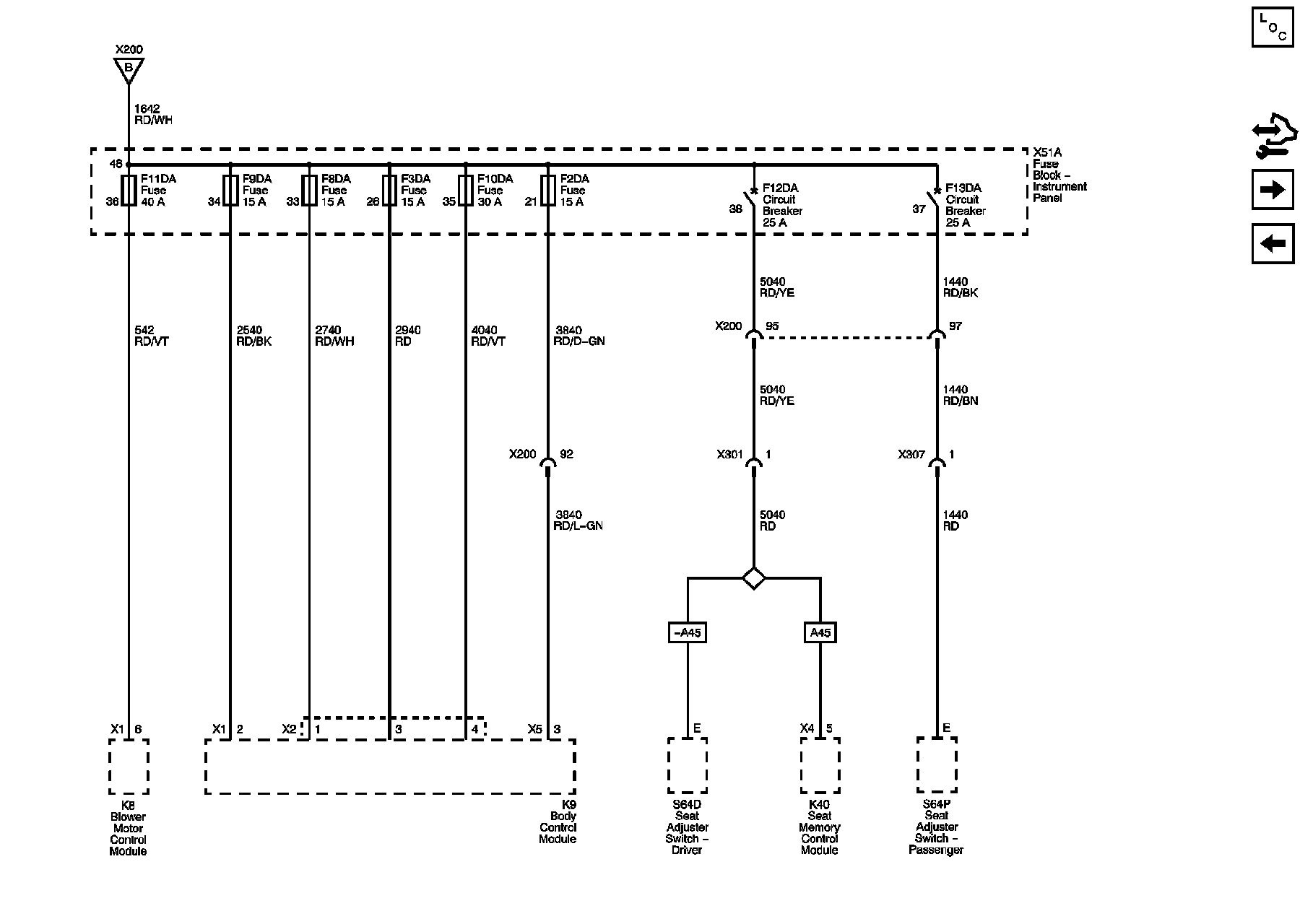

F2DA, F3DA, F8DA, F9DA, F10DA, F11DA Fuses and F12DA, F13DA Circuit Breakers

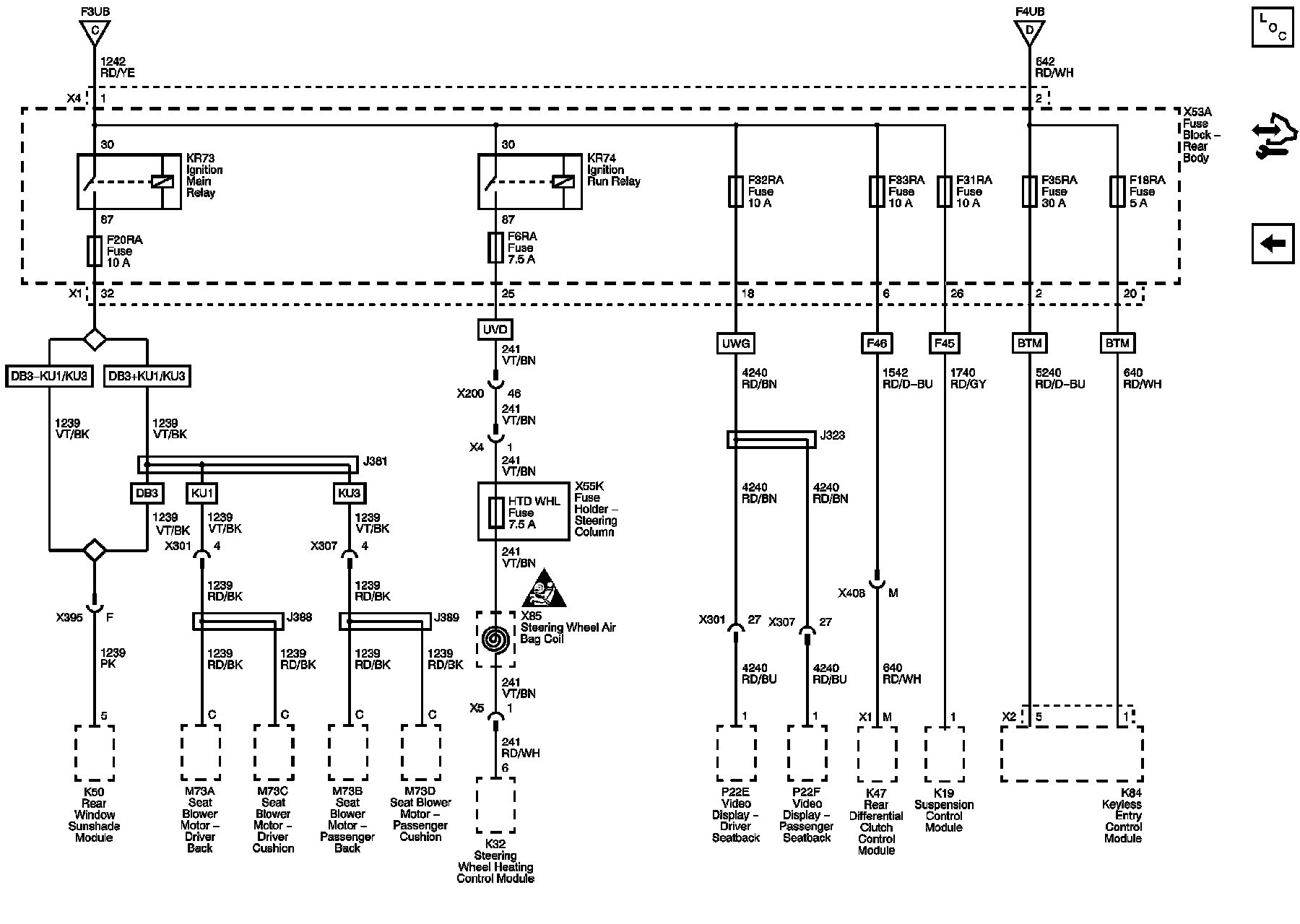

F6RA, F18RA, F20RA, F31RA, F32RA, F33RA, and F35RA Fuses
