Home >> Buick >> 2012 >> LaCrosse AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram >> 6T70/6T75 - Automatic Transmission

6T70/6T75 - Automatic Transmission




Automatic Transmission Controls Schematics

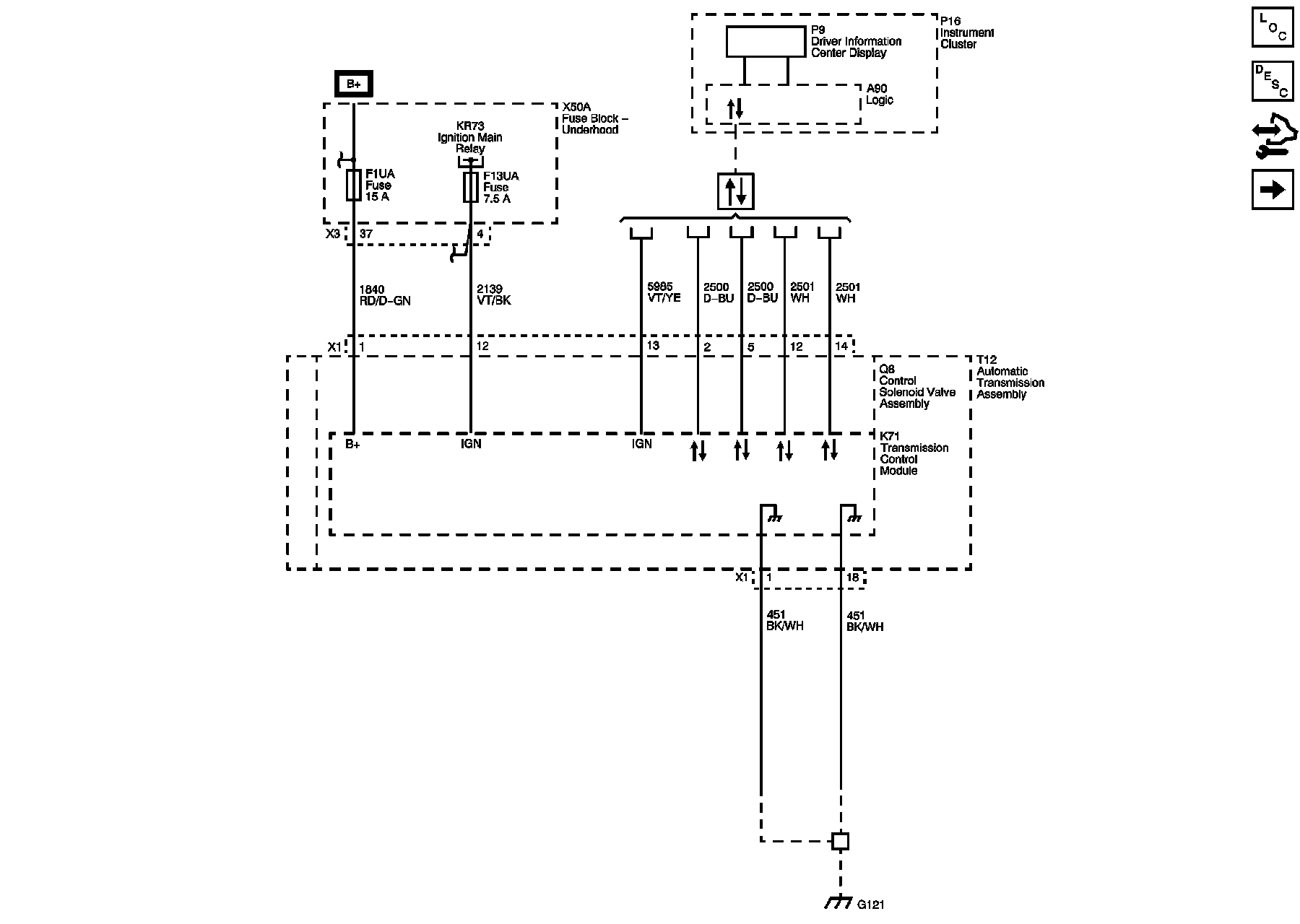

Module Power, Ground, Data Communication, and MIL

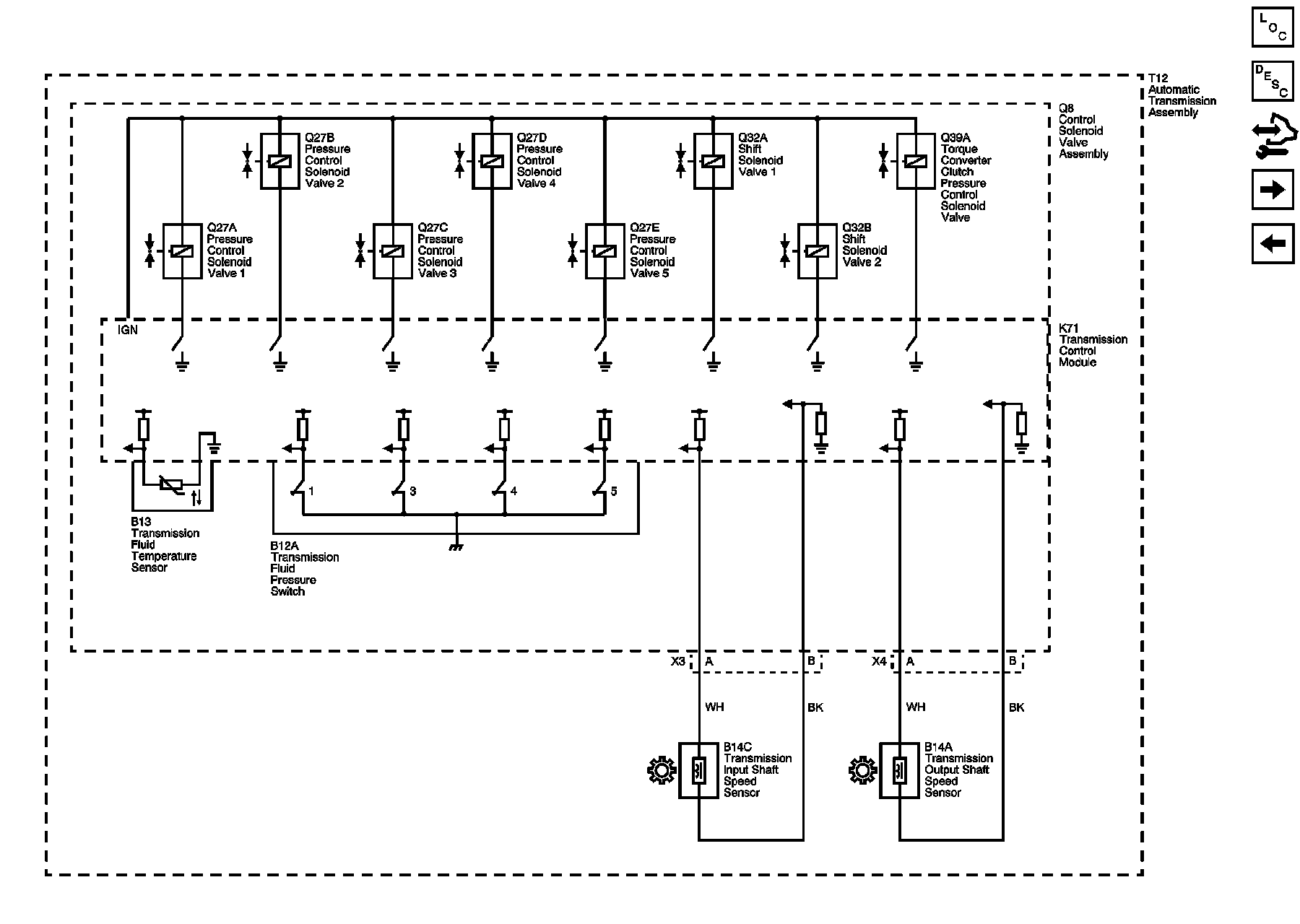

Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls

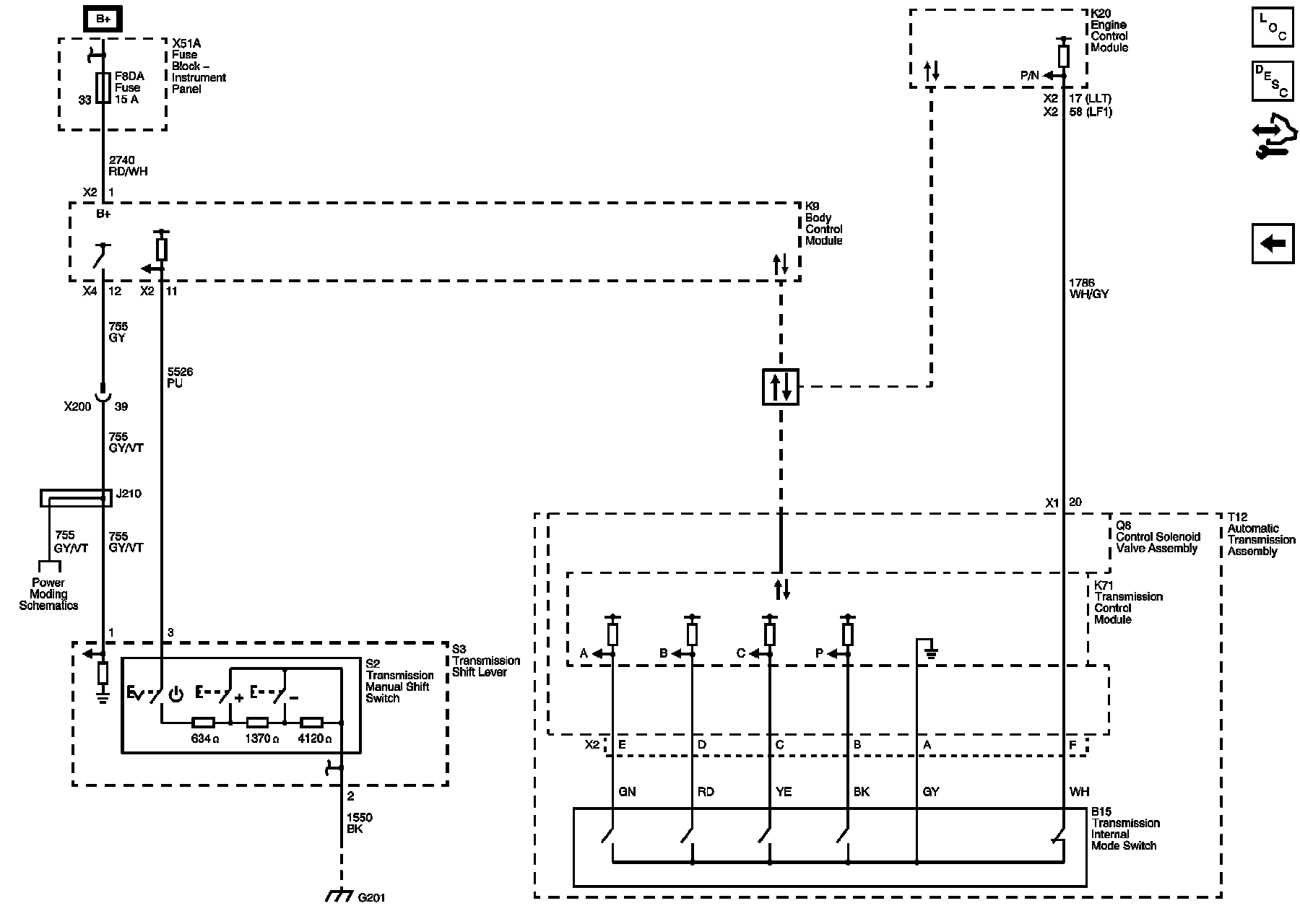

Internal Mode Switch and Tap Up/Tap Down Switch
