Radio/Navigation System Schematics




Radio/Navigation System Schematics

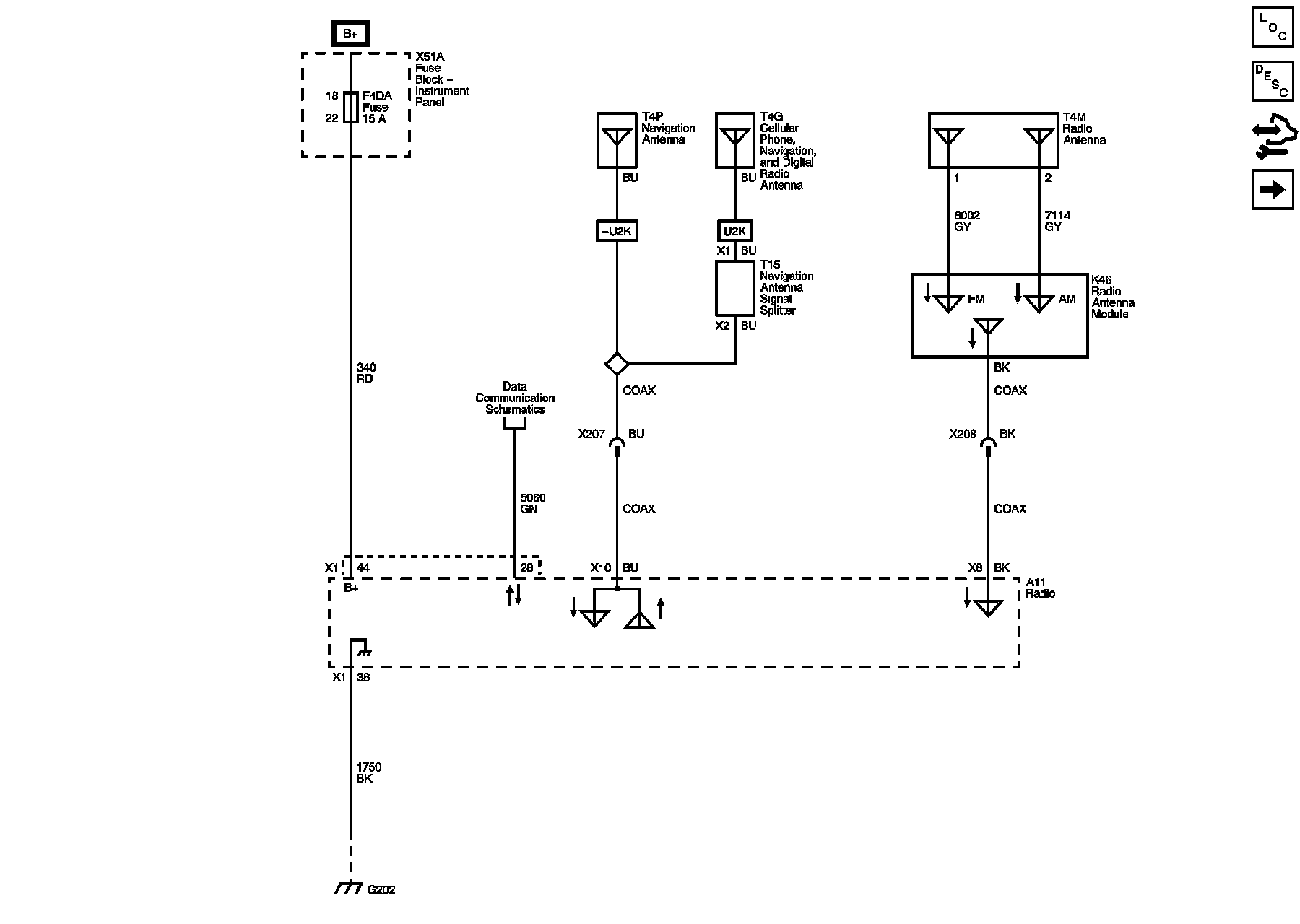

Power, Ground, Antennas and Serial Data

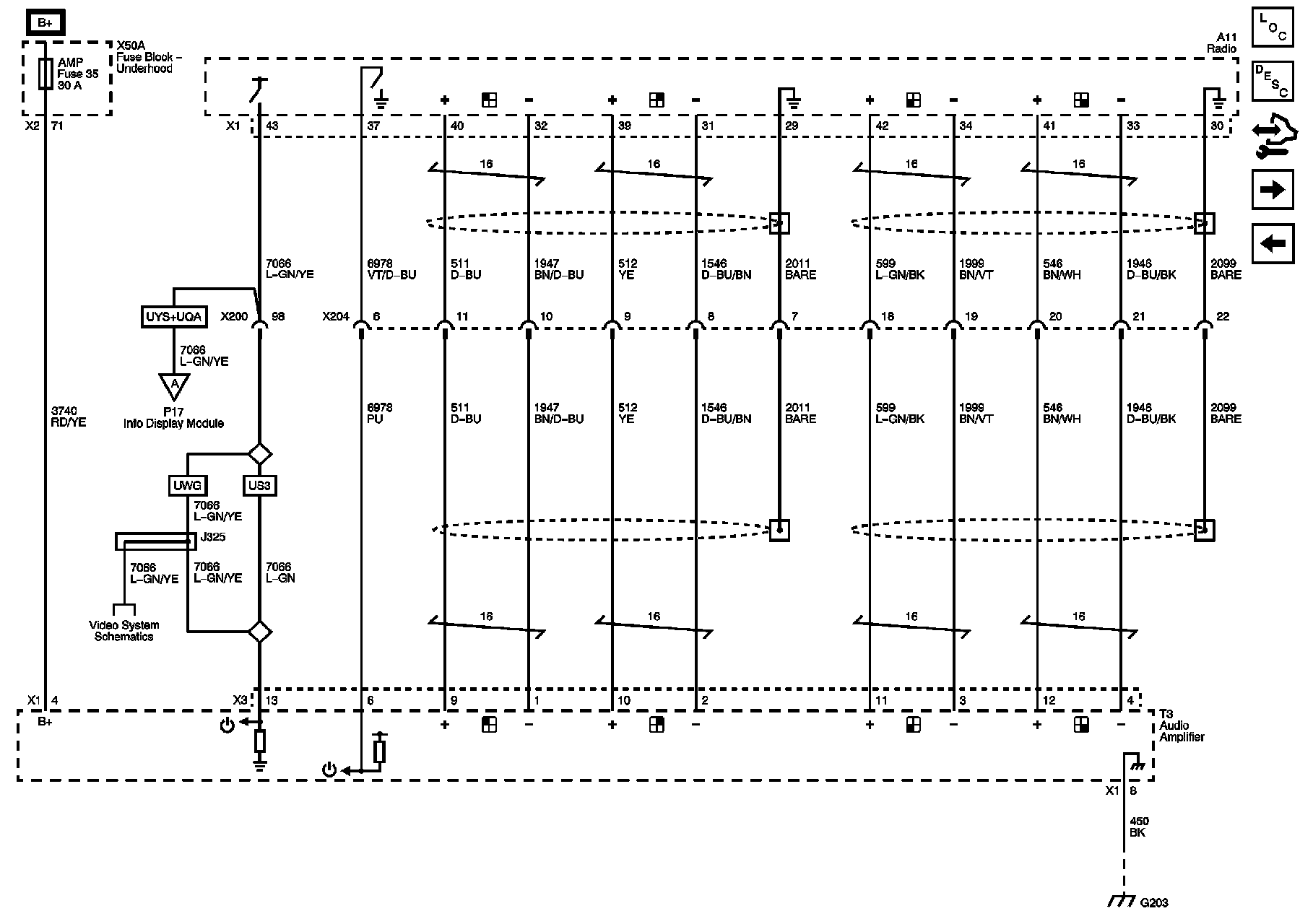

Amplifier (UQA)

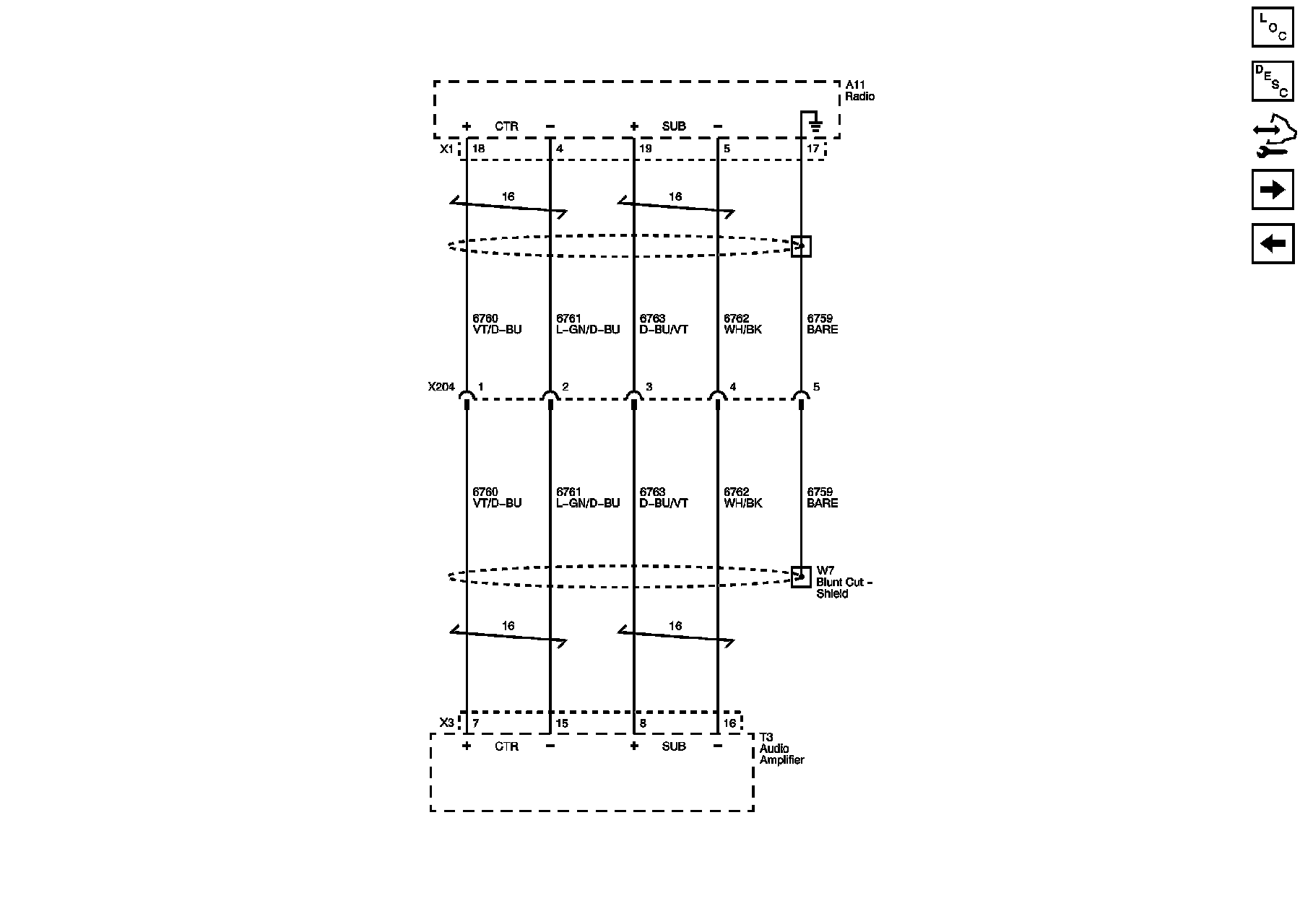

Amplifier (UQA with UYS or UWG)

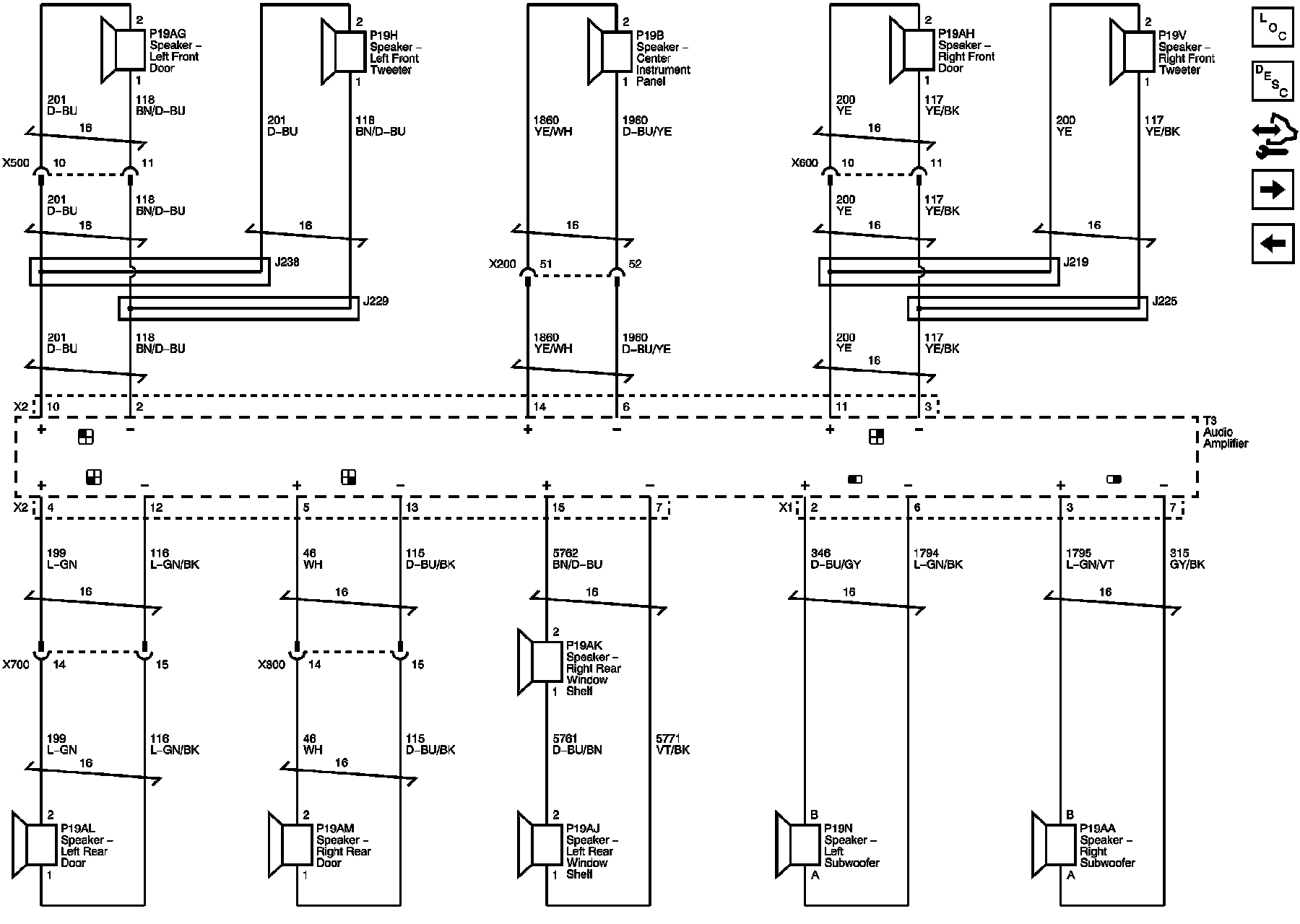

Speakers (UQA)





Speakers (U65)

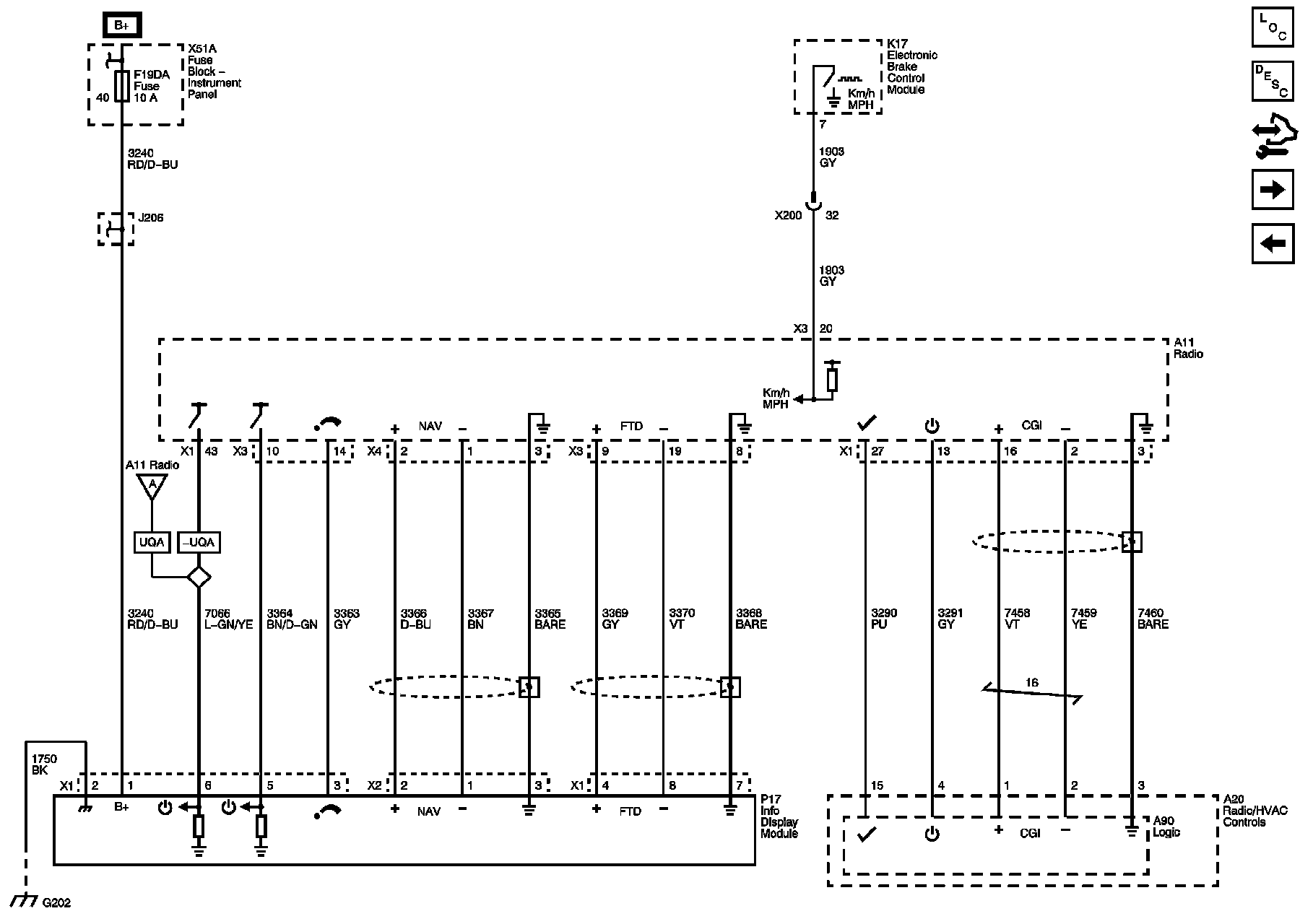

Display (without UYS)





Navigation System (UYS)

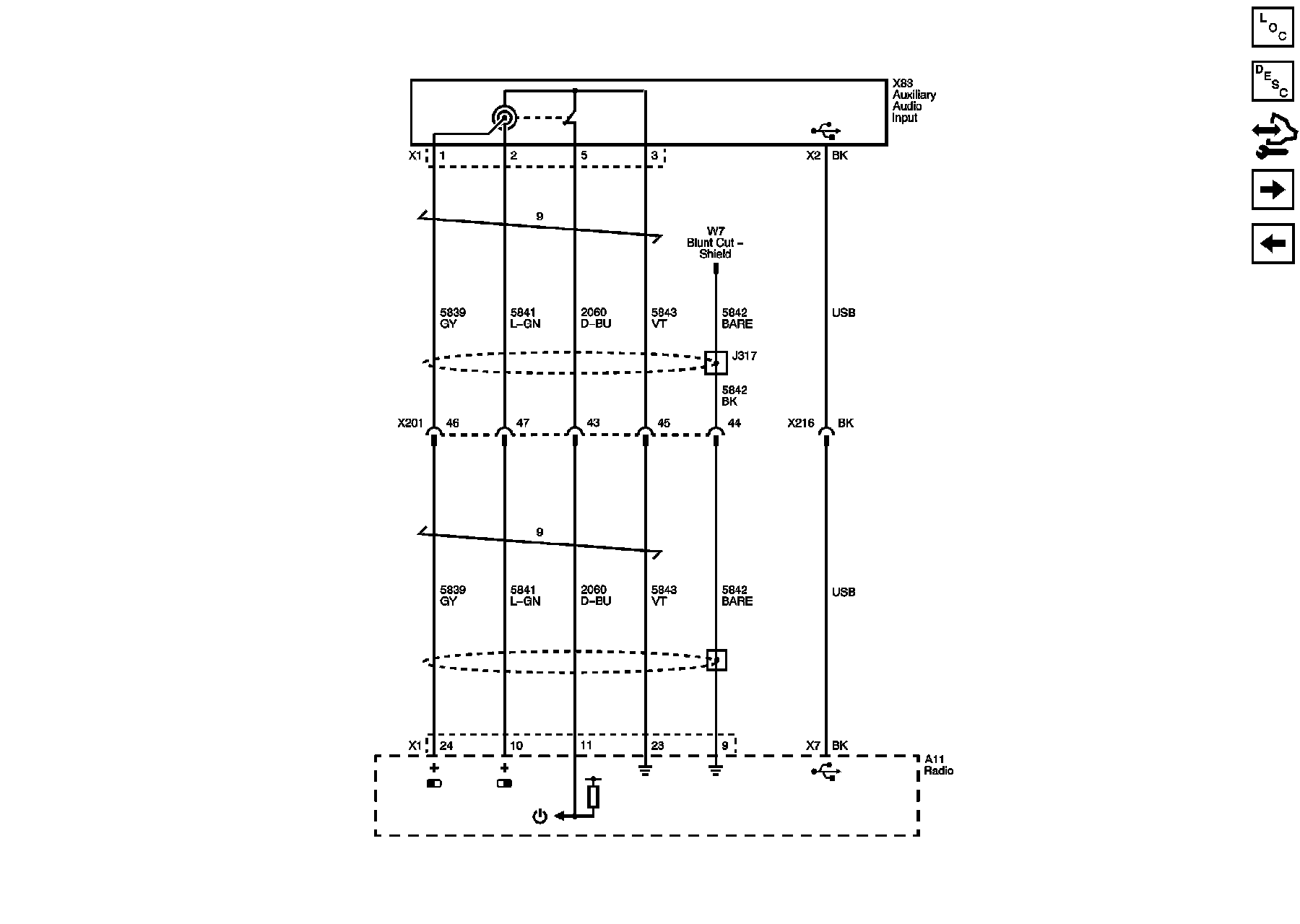

USB Interface (USR without KTA)

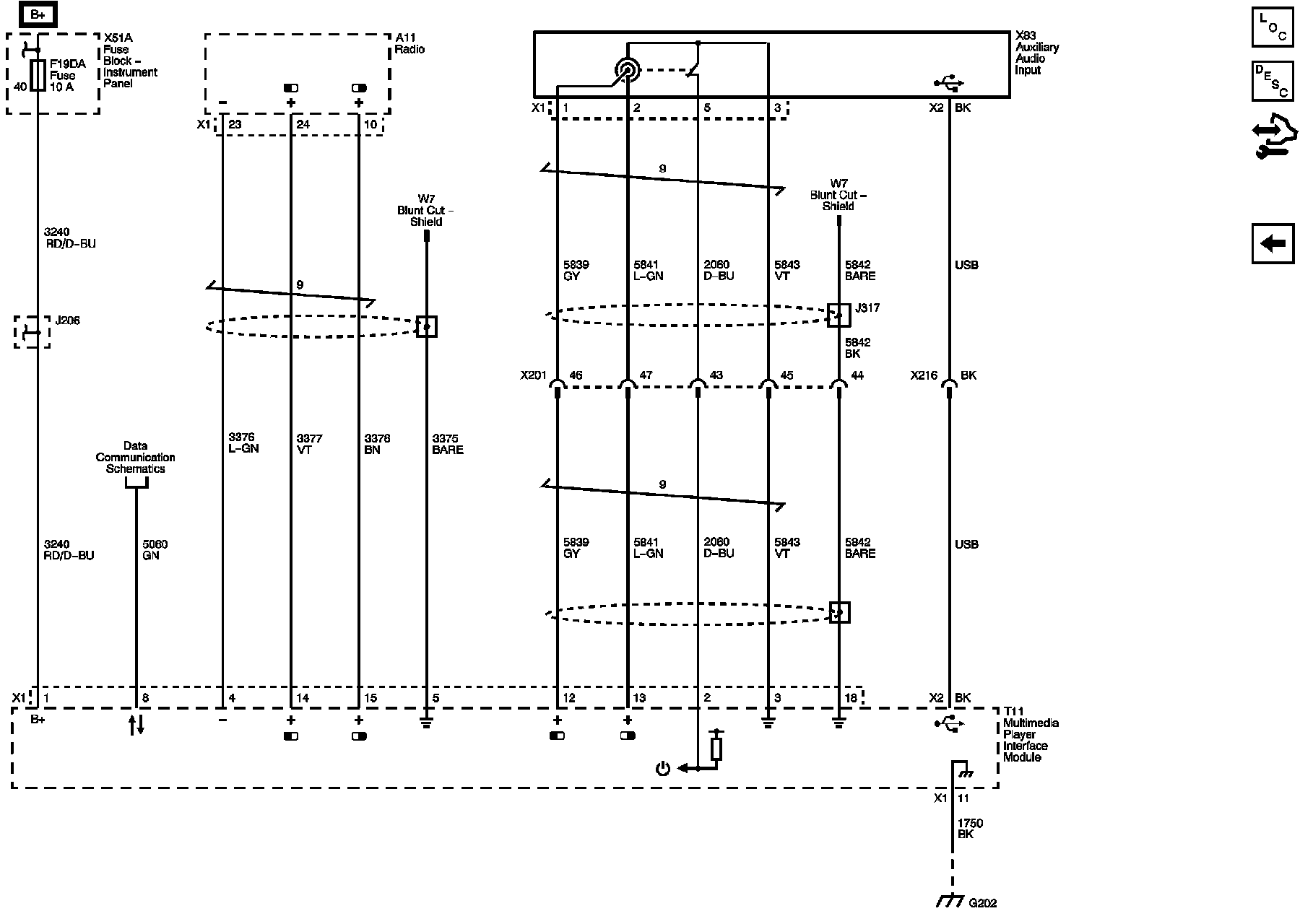

USB Interface (KTA)
