Body Harness Routing - Left Rear of Vehicle

Harness Routing Views

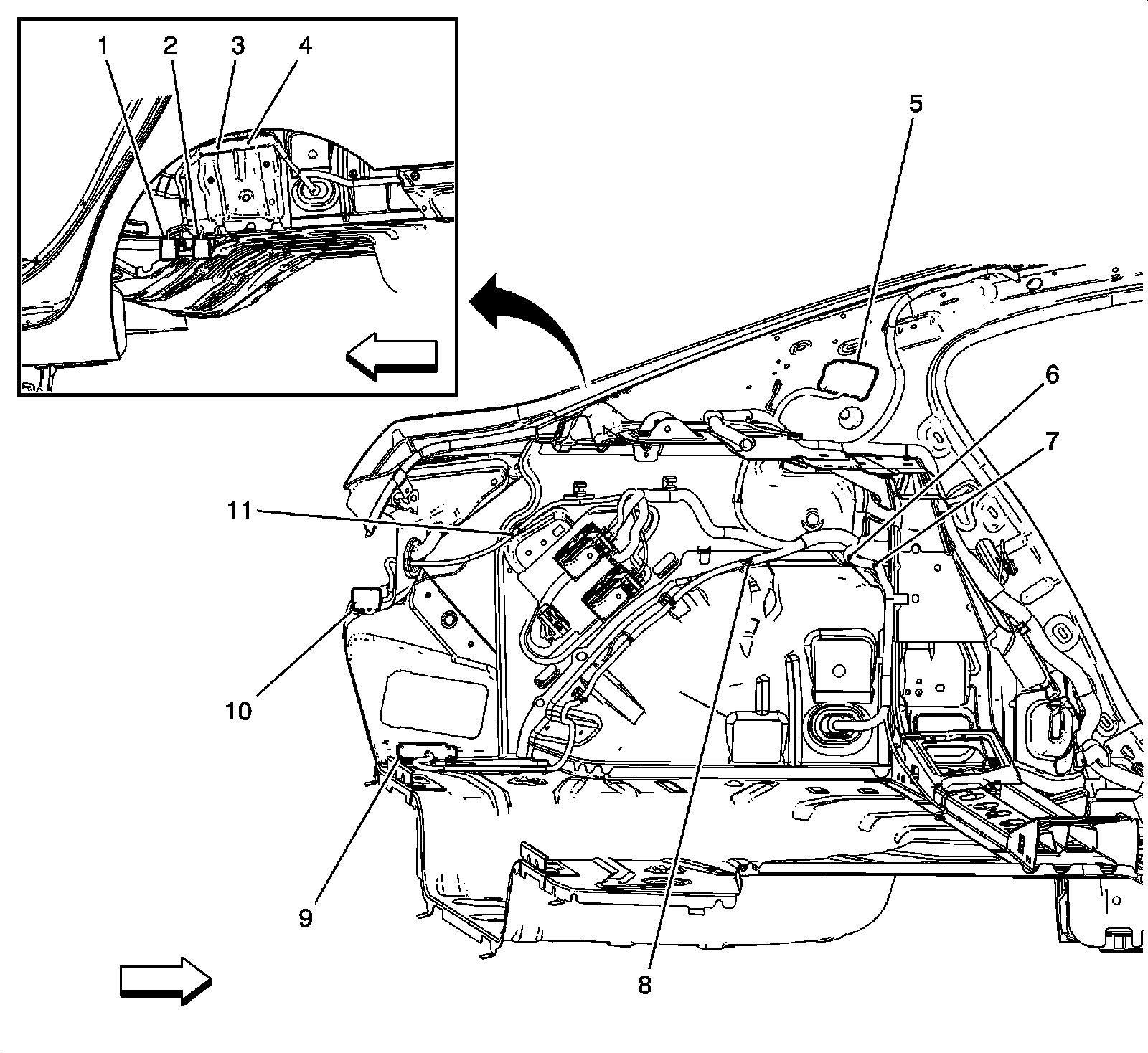

Body Harness Routing - Left Rear of Vehicle




1 - X401 (F45)
2 - X408 (F46)
3 - J403 (F46)
4 - J402 (F46)
5 - X397
6 - J409 (F46)
7 - J412 (F46)
8 - J404
9 - X407
10 - X409
11 - X406
