Body and License Lamp Harness Routing - Outside Rear of Vehicle




Harness Routing Views

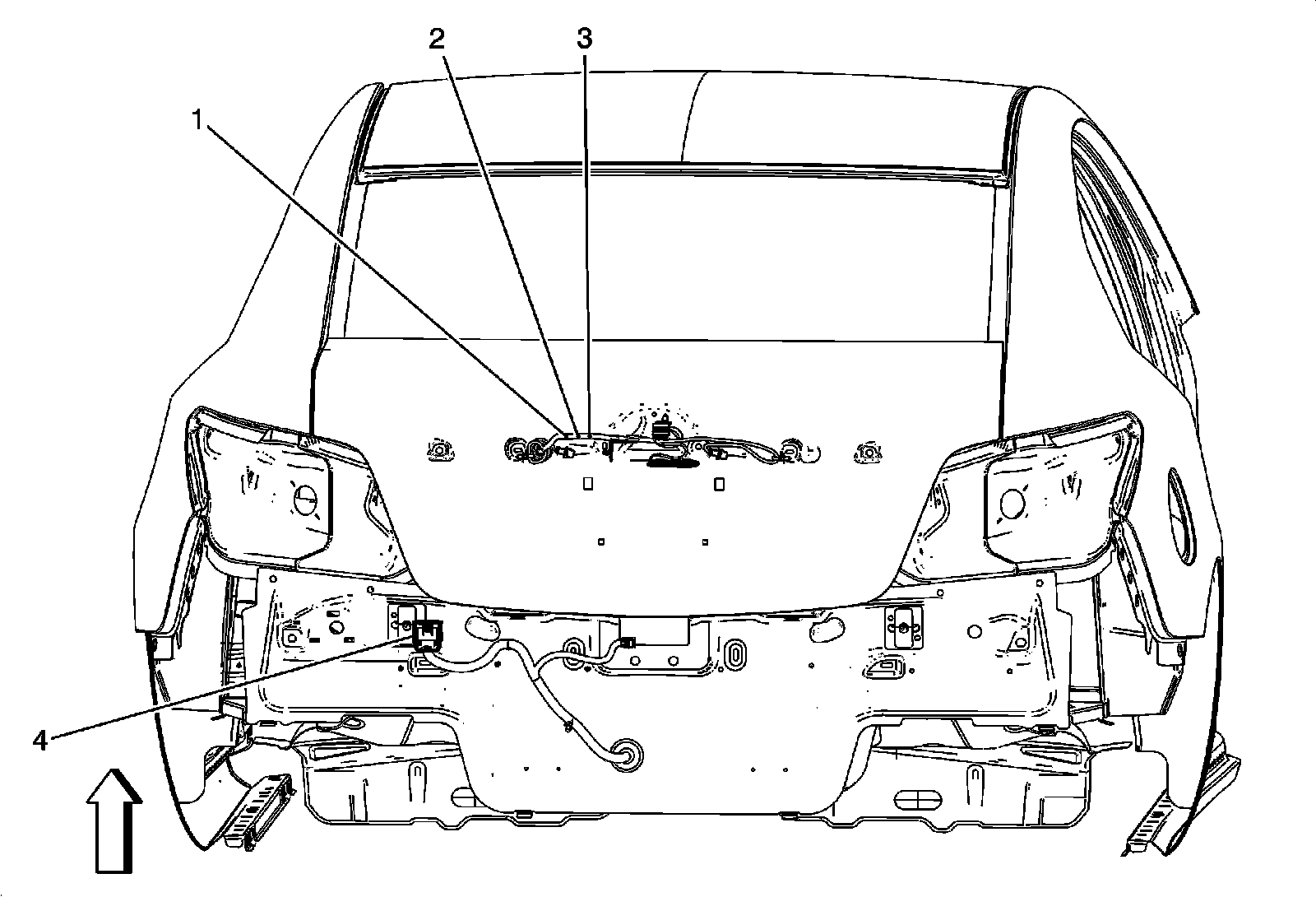

Body and License Lamp Harness Routing - Outside Rear of Vehicle




1 - J901
2 - J903
3 - J902
4 - X406
