Floor Console Harness Routing




Harness Routing Views

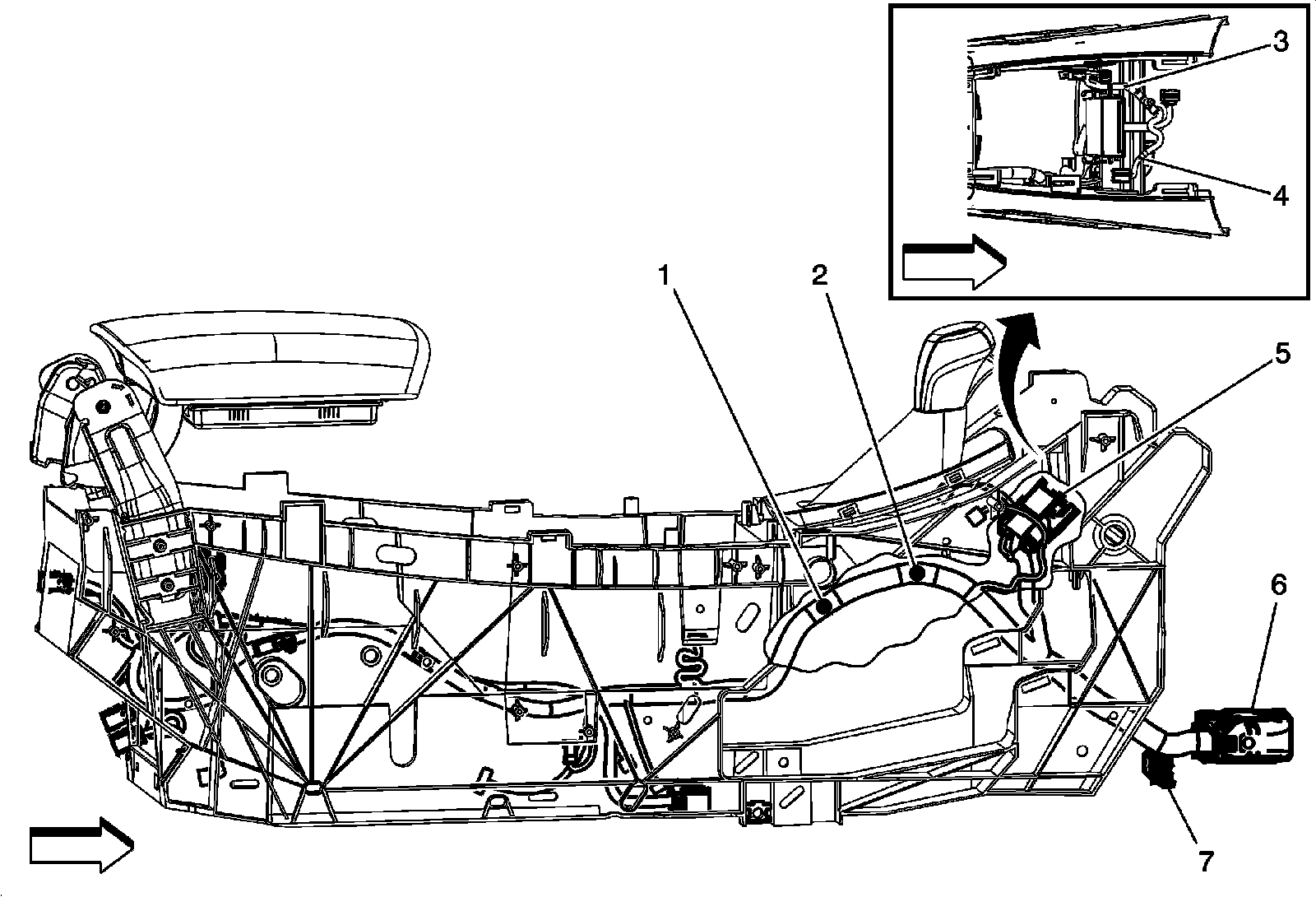

Floor Console Harness Routing




1 - J316
2 - J367
3 - J211
4 - J218
5 - X202
6 - X201
7 - X216
