Shock Absorber Actuator - Right Front (F45)

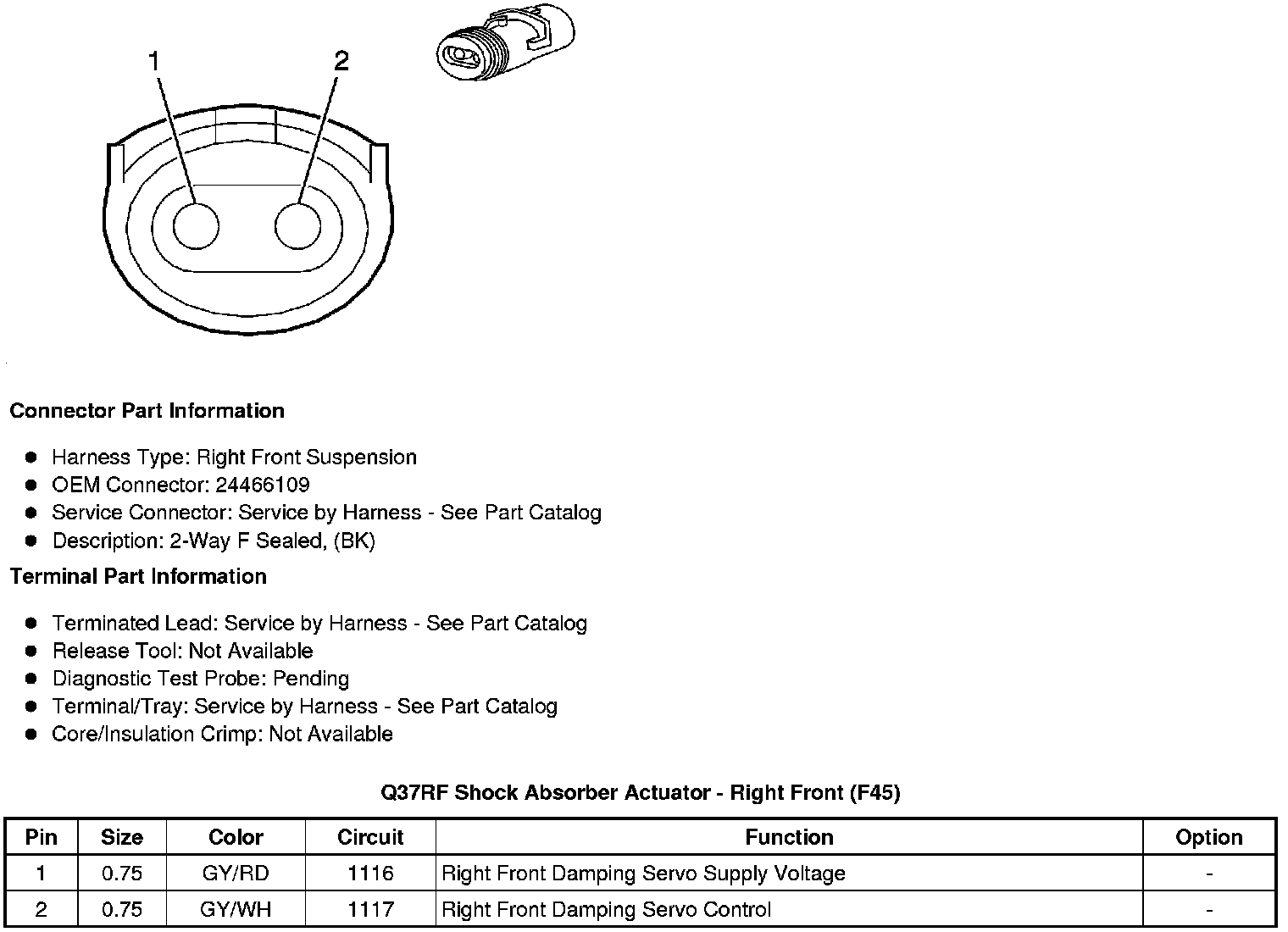

Component Connector End Views

Q37RF Shock Absorber Actuator - Right Front (F45)
