Speaker
>>
Speaker - Right Front Tweeter (UQA)
Speaker - Right Front Tweeter (UQA)

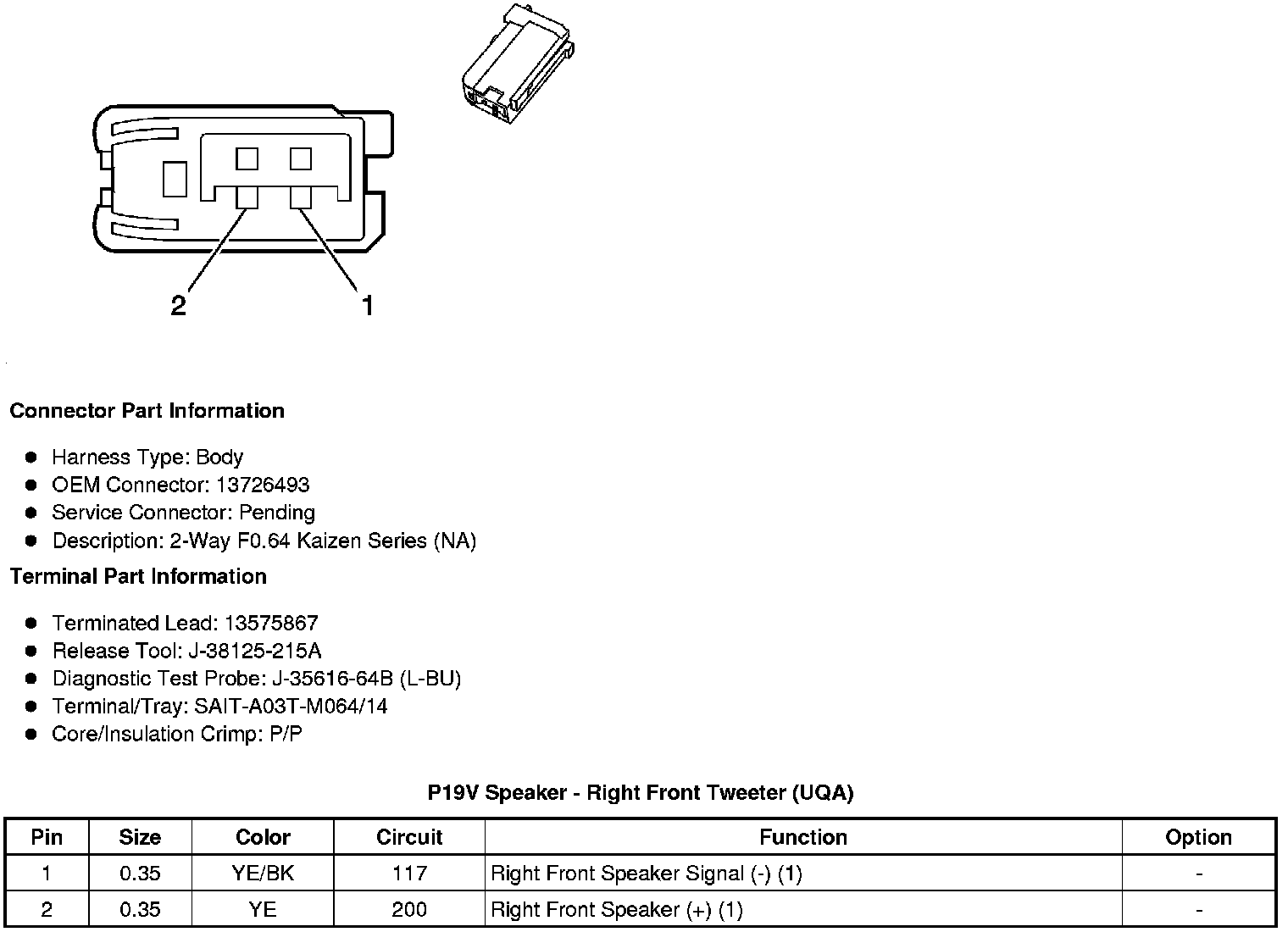

Component Connector End Views
P19V Speaker - Right Front Tweeter (UQA)
