Passenger Presence Detection Module (AW7)
Passenger Presence Detection Module (AW7)
Component Connector End Views

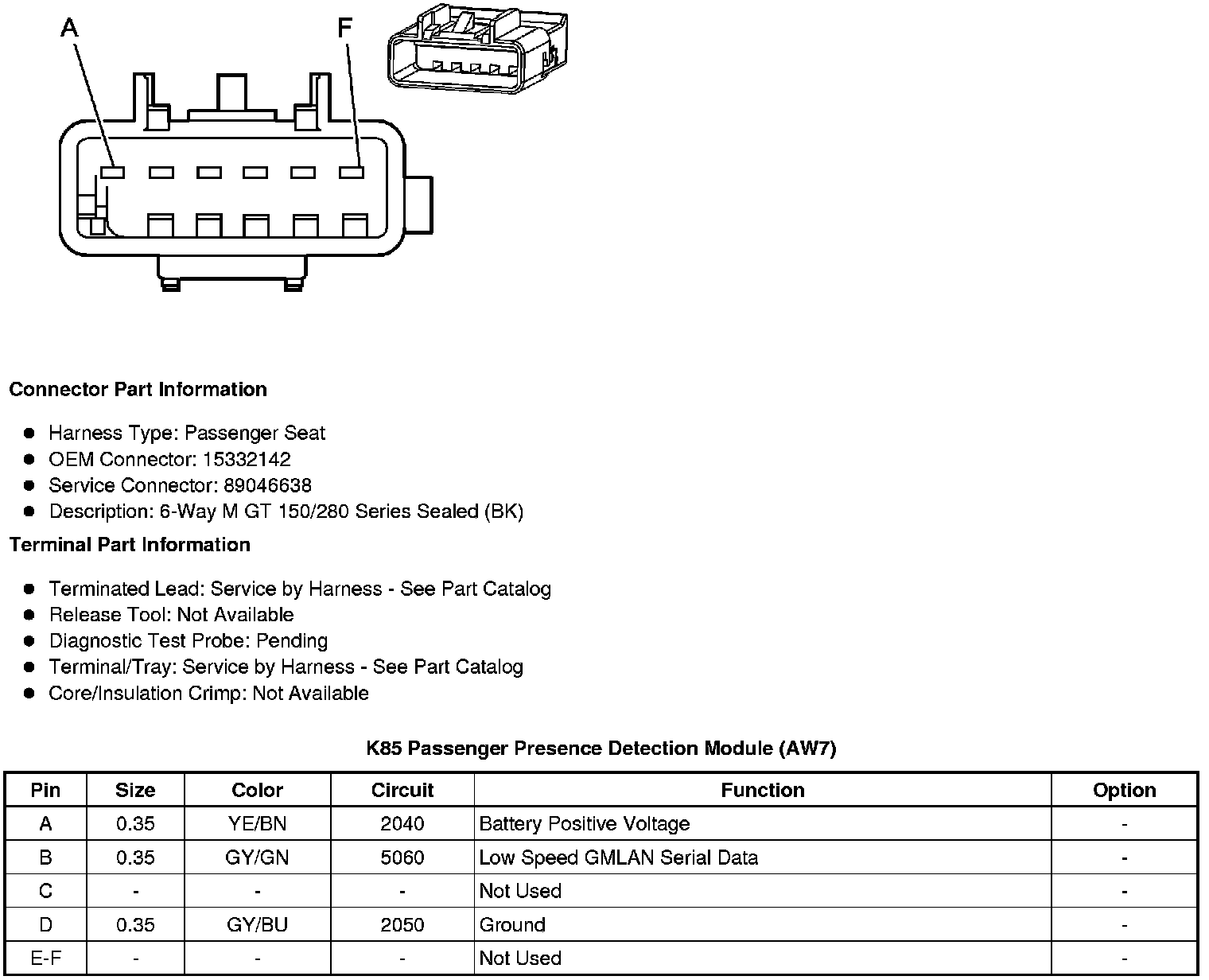

K85 Passenger Presence Detection Module (AW7)
