Video Display - Driver Seatback (UWG)
Video Display - Driver Seatback (UWG)
Component Connector End Views

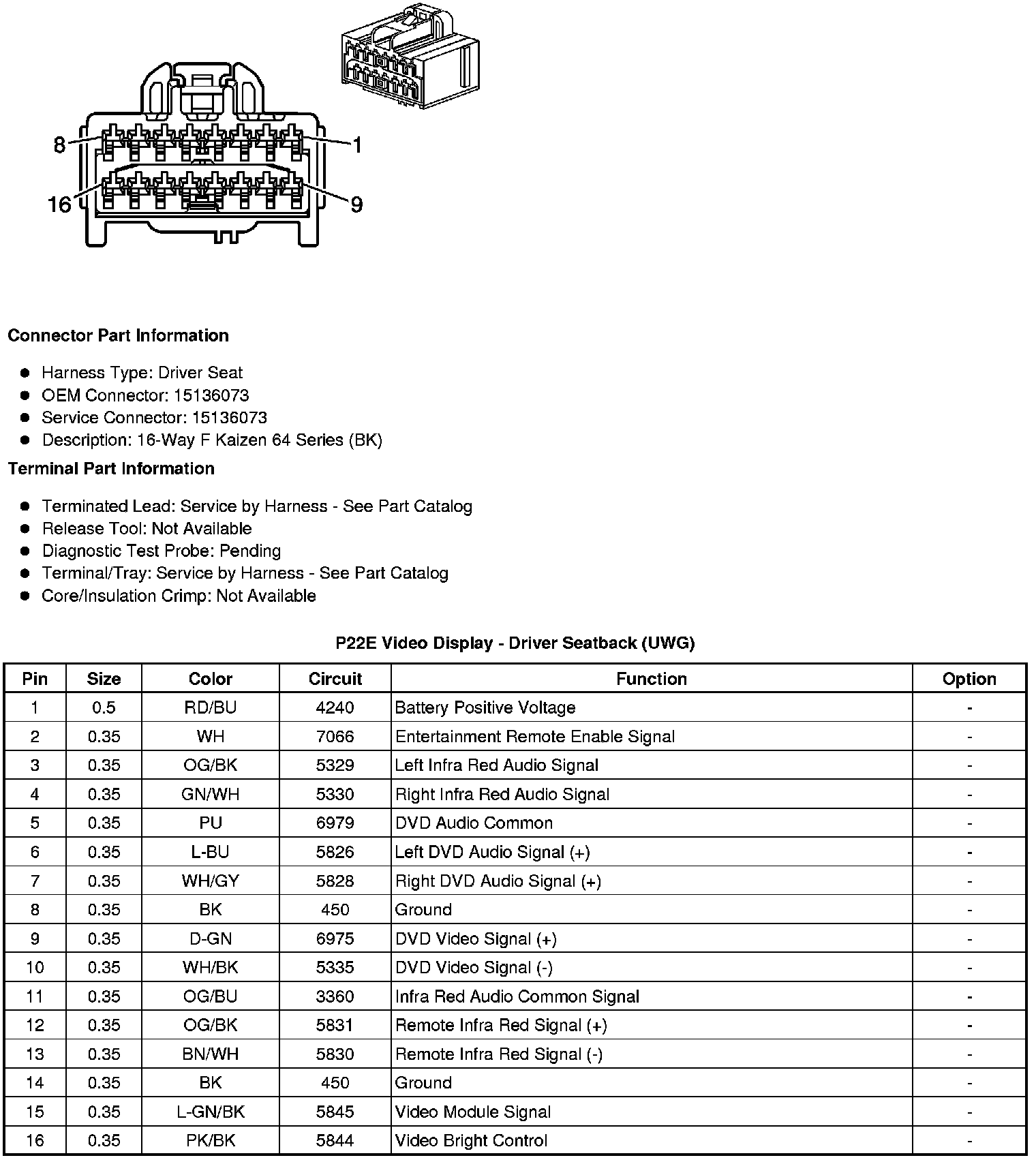

P22E Video Display - Driver Seatback (UWG)
