B3155

DTC B3155

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor
DTC B3155 00
- Passenger Door Lock Switch Circuit

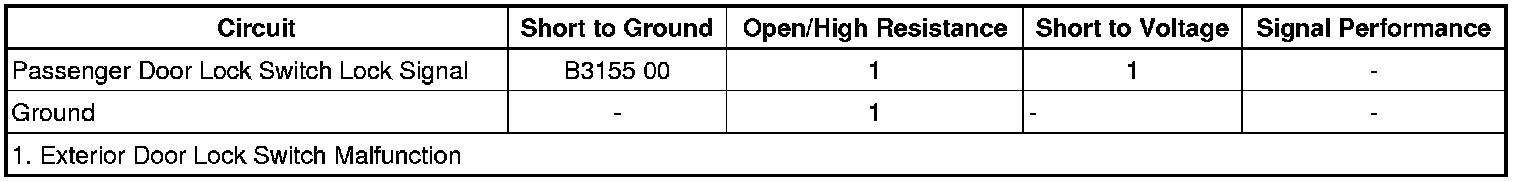

Diagnostic Fault Information






Circuit/System Description

The exterior passenger door handle contains a small sensor which allows a person to lock the vehicle doors from the outside without using the remote keyless transmitter. The keyless entry control module monitors the voltage level on the passenger door handle switch signal circuit, when the switch is pressed, the voltage in the signal circuit will drop and the keyless entry control module will then send a serial data message to the BCM to command all the doors to lock.

Conditions for Running the DTC

Battery voltage is between 9-16 V.

Conditions for Setting the DTC

The keyless entry control module detects the passenger door lock switch lock circuit is shorted to ground for greater than 45 seconds.

Action Taken When the DTC Sets

The keyless entry control module ignores inputs from the passenger exterior door handle switch.

Conditions for Clearing the DTC

* The DTC will be current for as long as the fault is present.
* When the fault is no longer present, the DTC will be a history DTC.
* A history DTC will clear after 50 ignition cycles.

Reference Information
Schematic Reference

Remote Function Schematics [1][2]Electrical Diagrams
Connector End View Reference

Component Connector End Views Connector End Views By Name
Description and Operation

Keyless Entry System Description and Operation (with BTM) Keyless Entry System Description and Operation (with BTM)Keyless Entry System Description and Operation (without BTM) Keyless Entry System Description and Operation (without BTM)
Electrical Information Reference

* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Verification

Observe the scan tool Exterior Passenger Door Handle Touch Sensor parameter while pressing and releasing the door handle touch sensor-passenger exterior. The value should change between Active and Inactive as the sensor is pressed and released.

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the T10N keyless entry antenna-passenger door handle.
2. Test for less than 5 ohm between the ground circuit terminal 4 and ground.

• If greater than the specified range, test the ground circuit for an open/high resistance.

3. Ignition ON, verify the scan tool Exterior Passenger Door Handle Touch Sensor parameter is Inactive.

• If not the specified value, test the signal circuit terminal 3 for a short to ground. If the circuit tests normal, replace the K84 keyless entry control module.

4. Connect a 3A fused jumper wire between the signal circuit terminal 3 and ground, verify the scan tool Exterior Passenger Door Handle Touch Sensor is Active.

• If not the specified value, test the signal circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the K84 keyless entry control module

5. If all circuits test normal, test or replace the T10N keyless entry antenna-passenger door handle.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Front Side Door Outside Handle Replacement (Base) Front Side Door Outside Handle Replacement (Base)Front Side Door Outside Handle Replacement (Passive Entry ATH) Front Side Door Outside Handle Replacement (Passive Entry ATH)
* Control Module References Control Module References for the keyless entry control module replacement, setup and programming
