Electrical Diagrams




Moveable Window Schematics

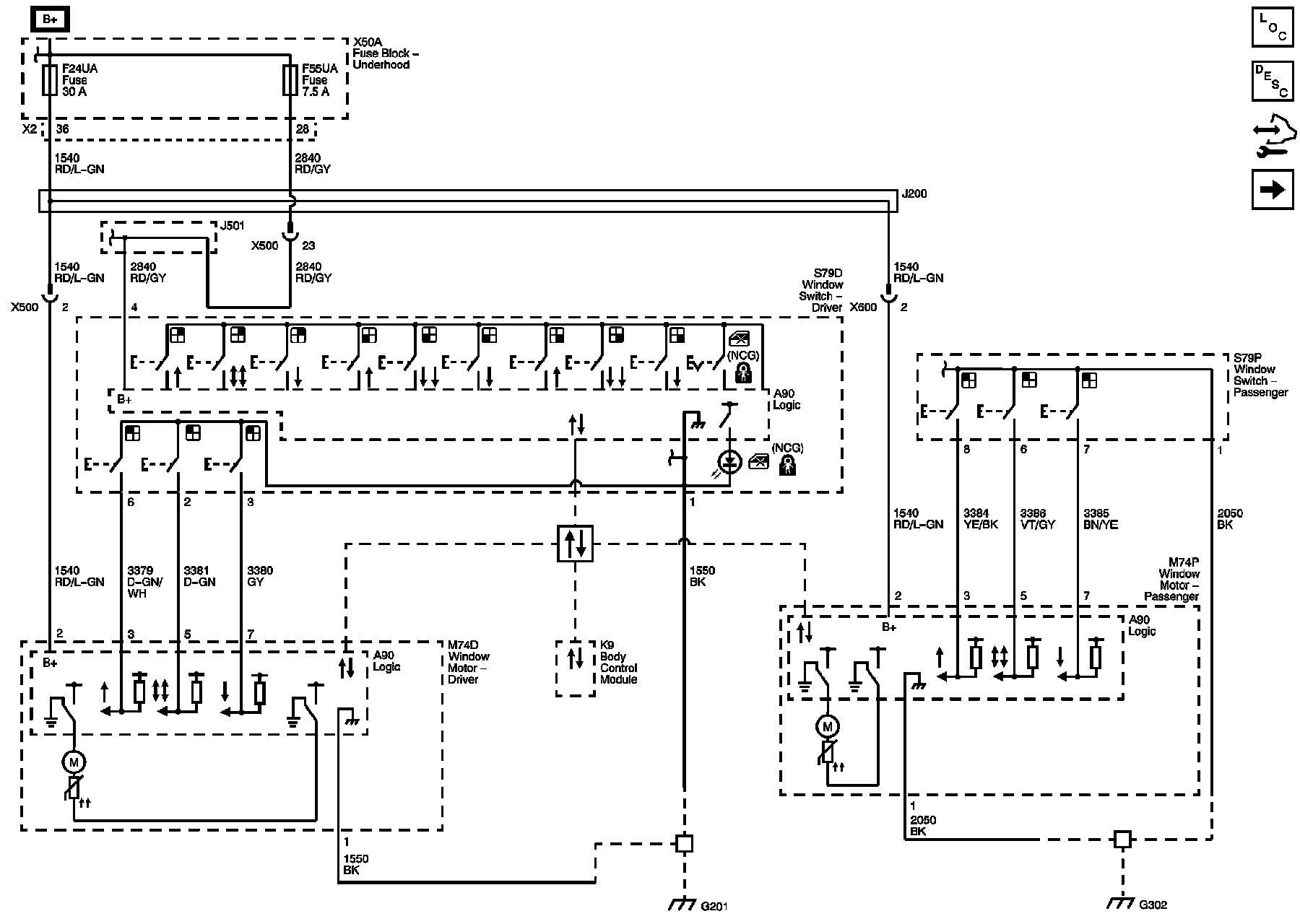

Window Switches and Motors - Front Doors

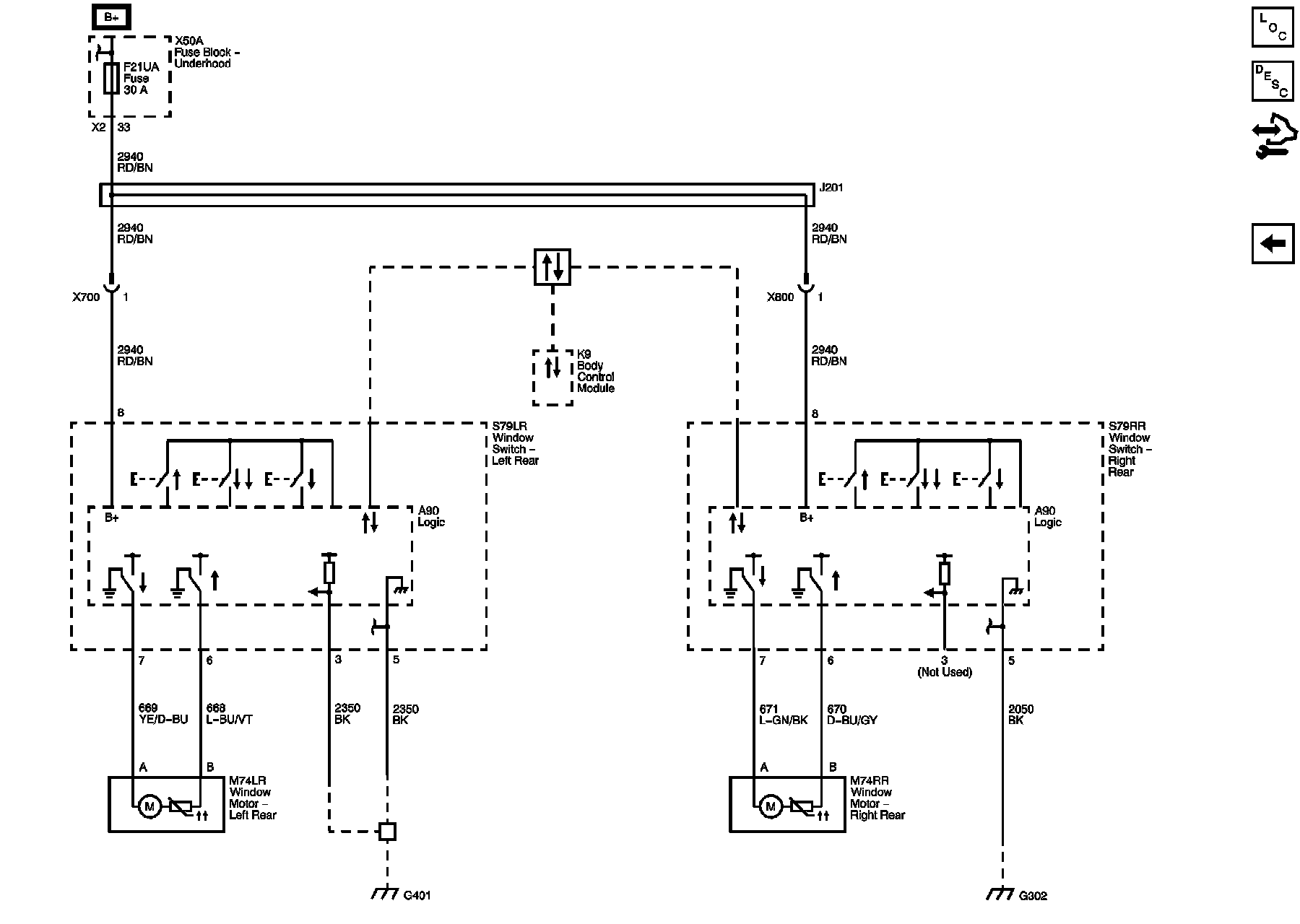

Window Switches and Motors - Rear Doors
