X370
X370

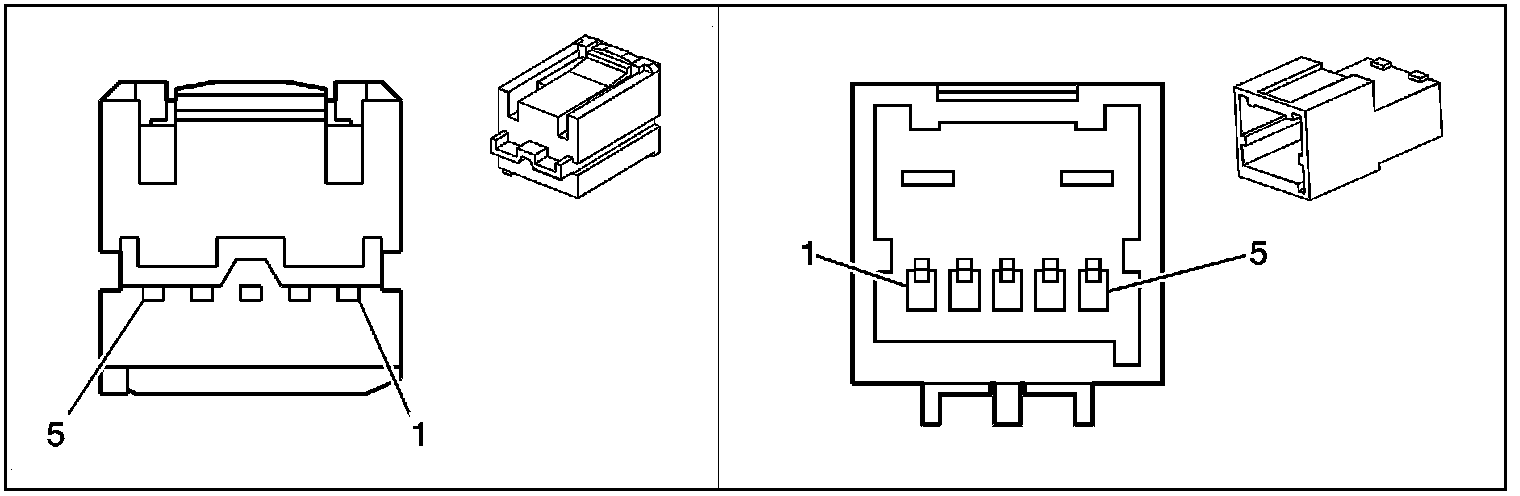

Inline Harness Connector End Views

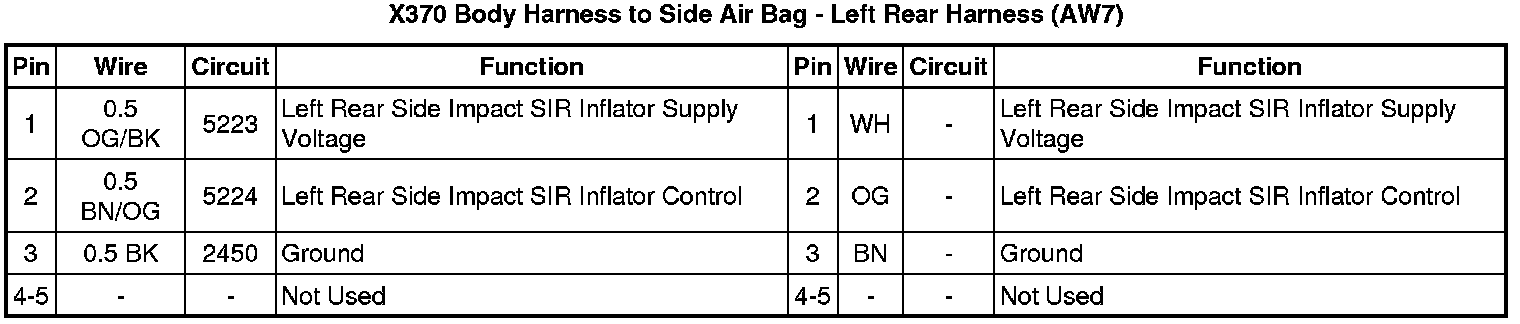

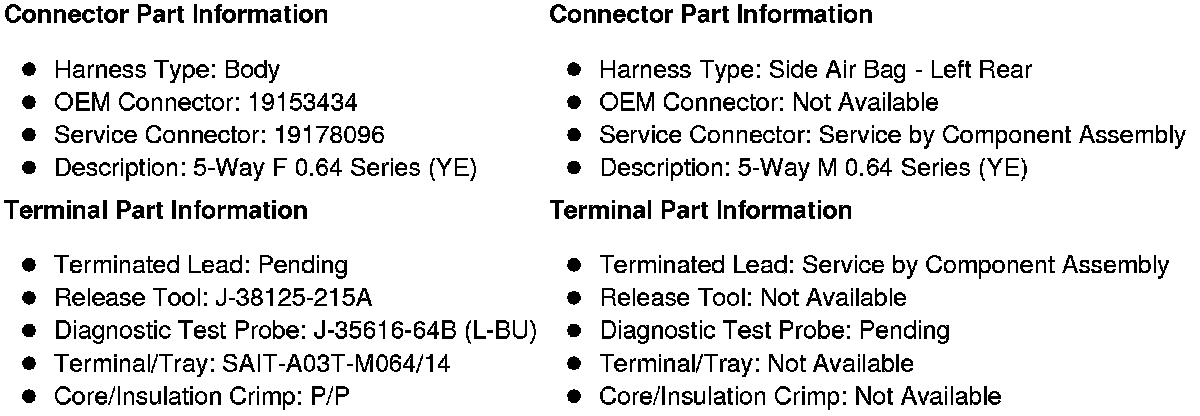

X370 Body Harness to Side Air Bag - Left Rear Harness (AW7)
