X141

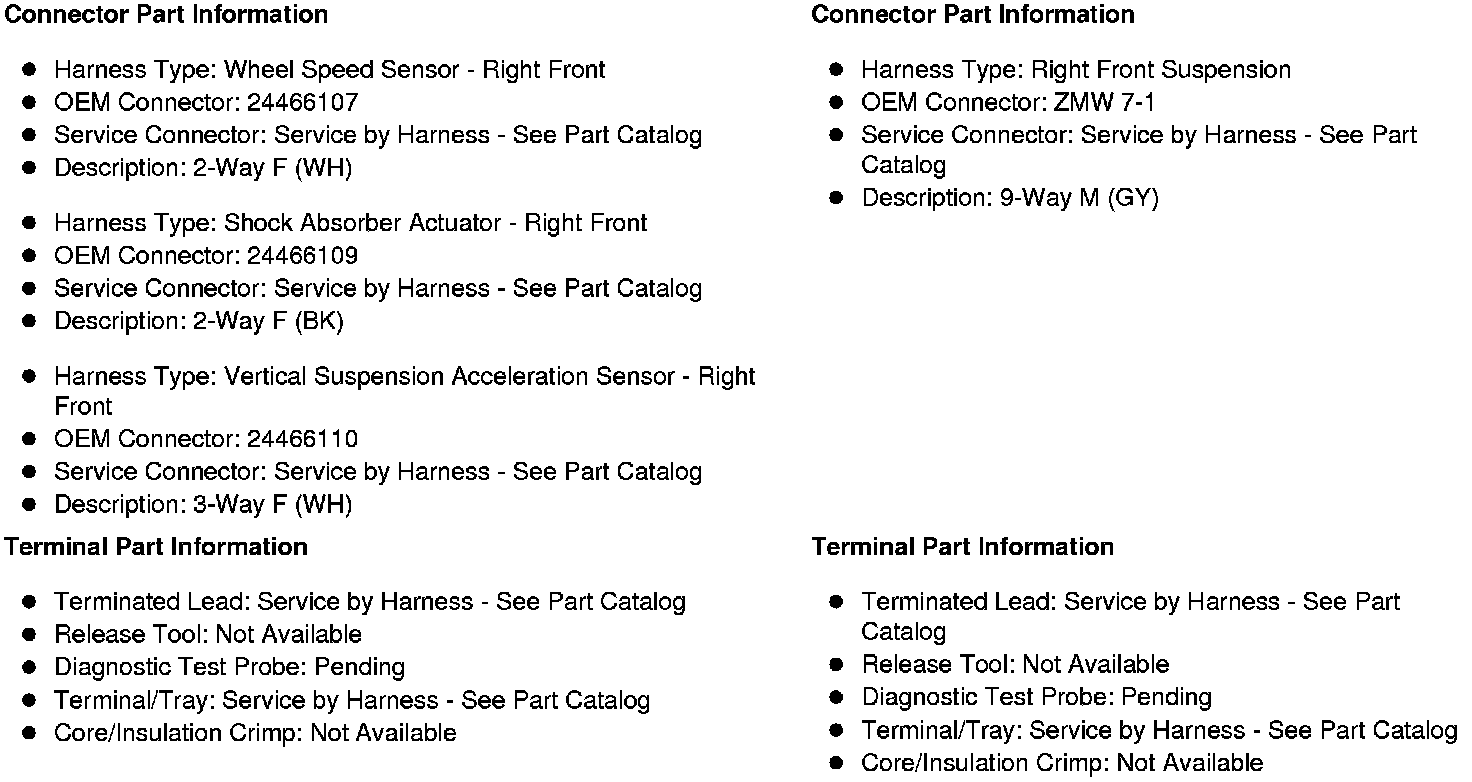

Inline Harness Connector End Views

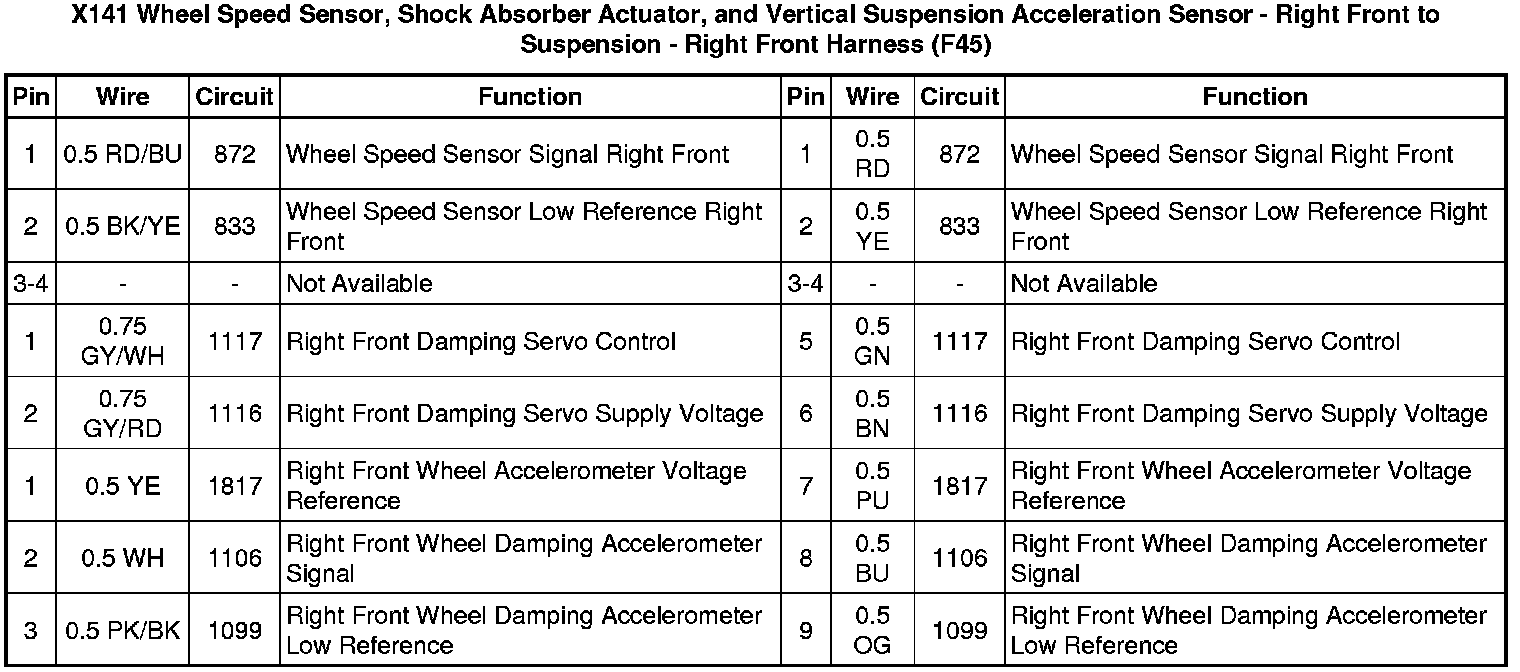

X141 Wheel Speed Sensor, Shock Absorber Actuator, and Vertical Suspension Acceleration Sensor - Right Front to Suspension - Right Front Harness (F45)
