X131

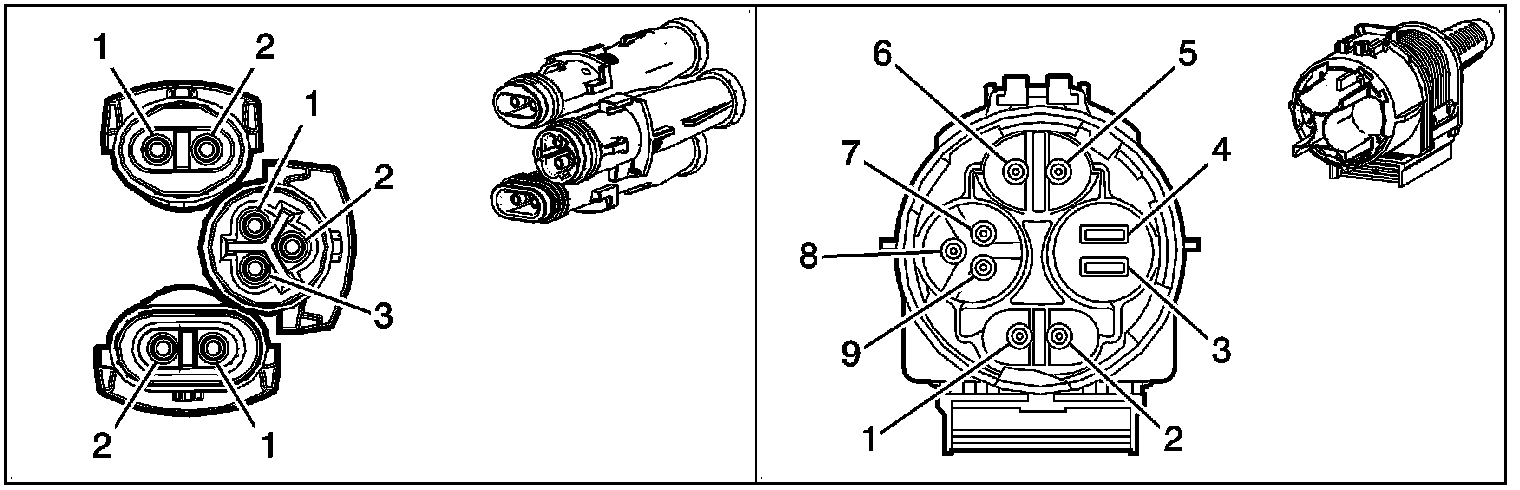

Inline Harness Connector End Views

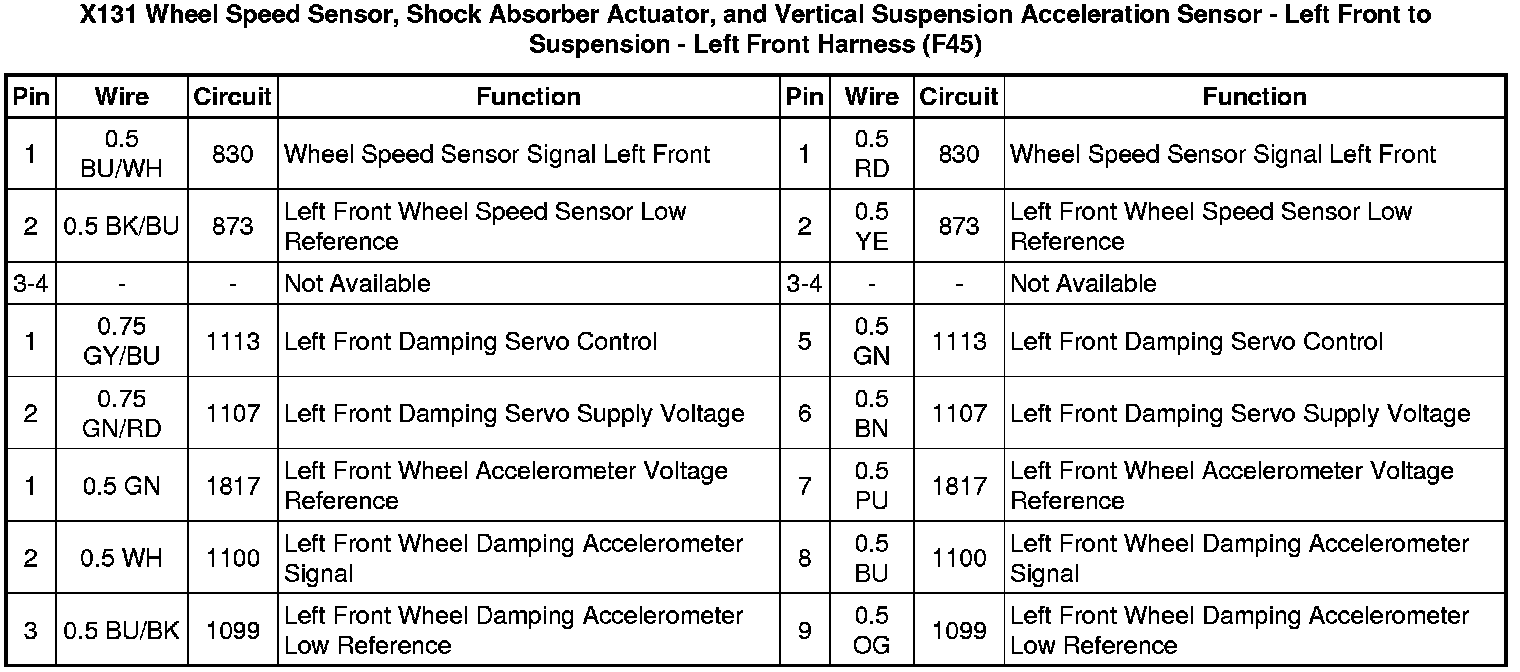

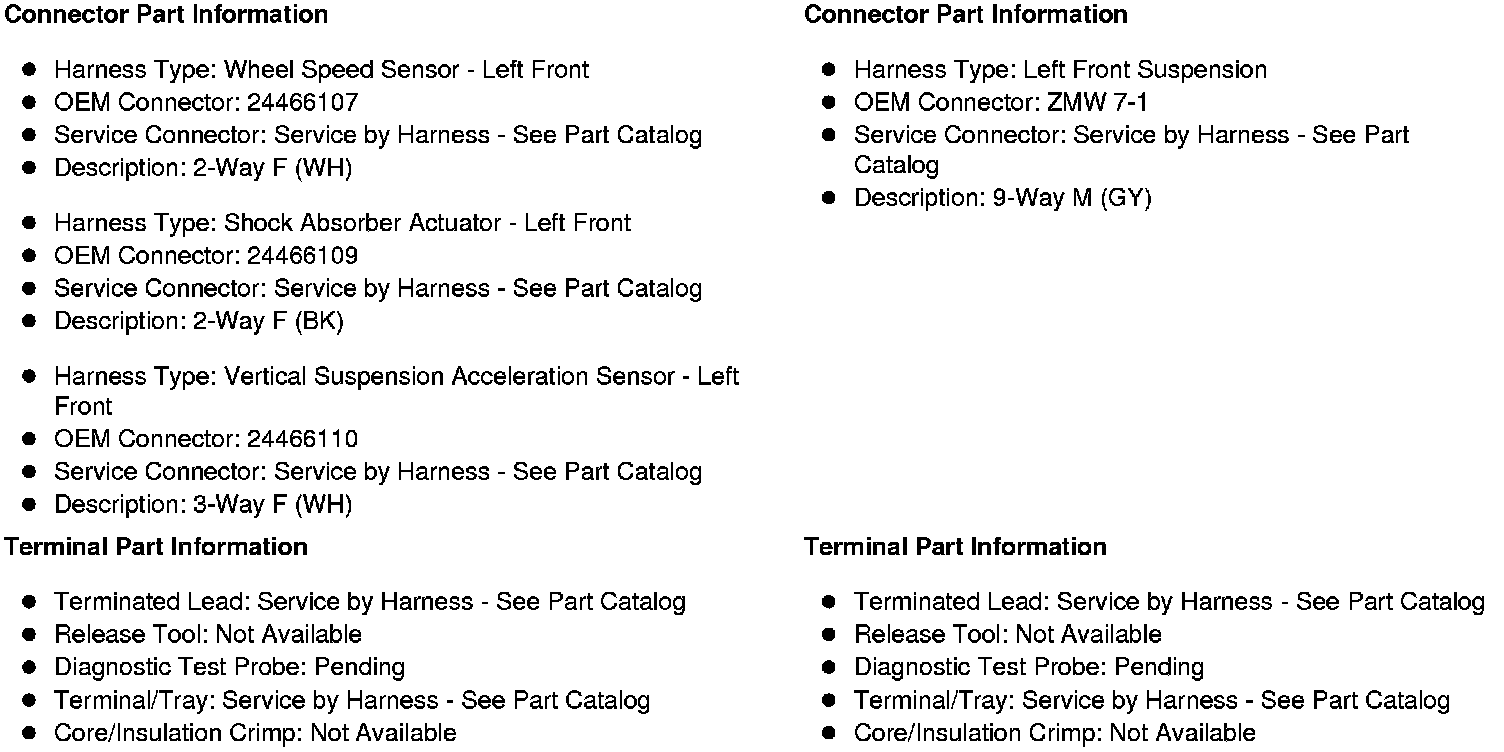

X131 Wheel Speed Sensor, Shock Absorber Actuator, and Vertical Suspension Acceleration Sensor - Left Front to Suspension - Left Front Harness (F45)
