Home >> Buick >> 2011 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X100 - X199 >> X130

X130

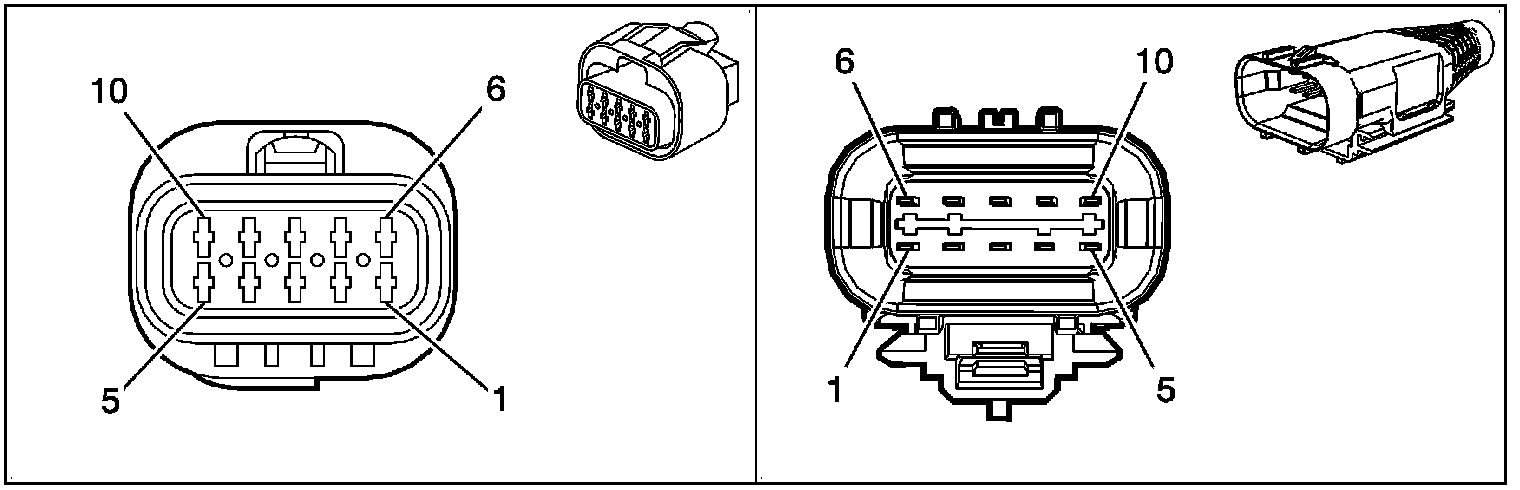

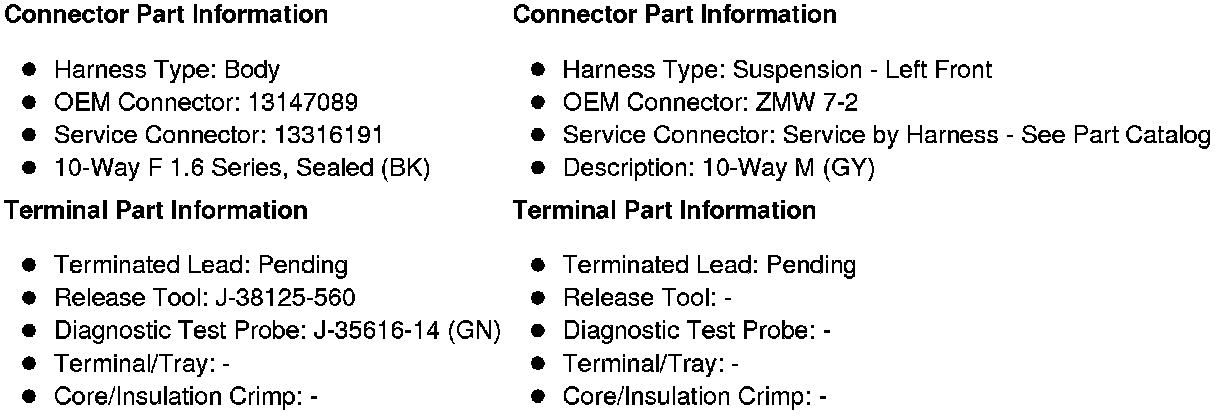

Inline Harness Connector End Views

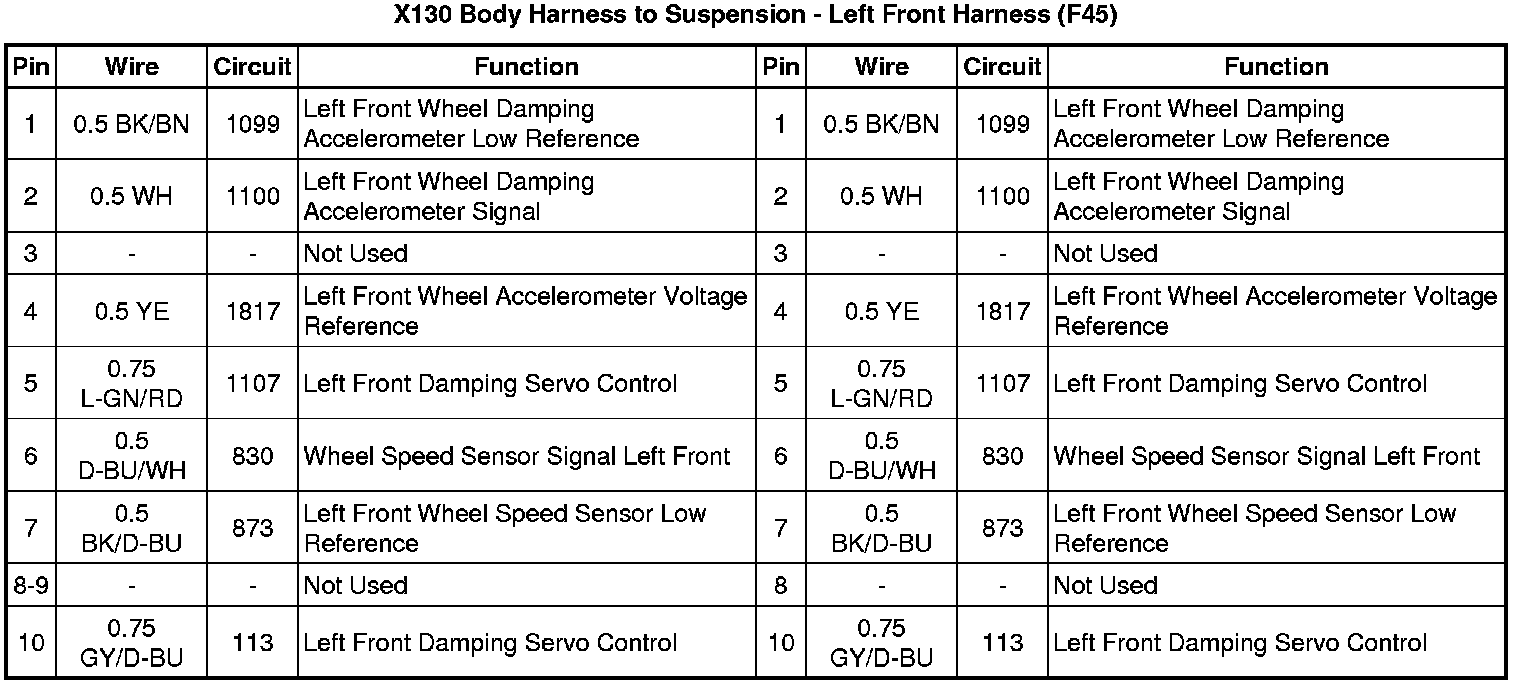

X130 Body Harness to Suspension - Left Front Harness (F45)
