T1 Accessory DC/AC Power Inverter Module (KI6)

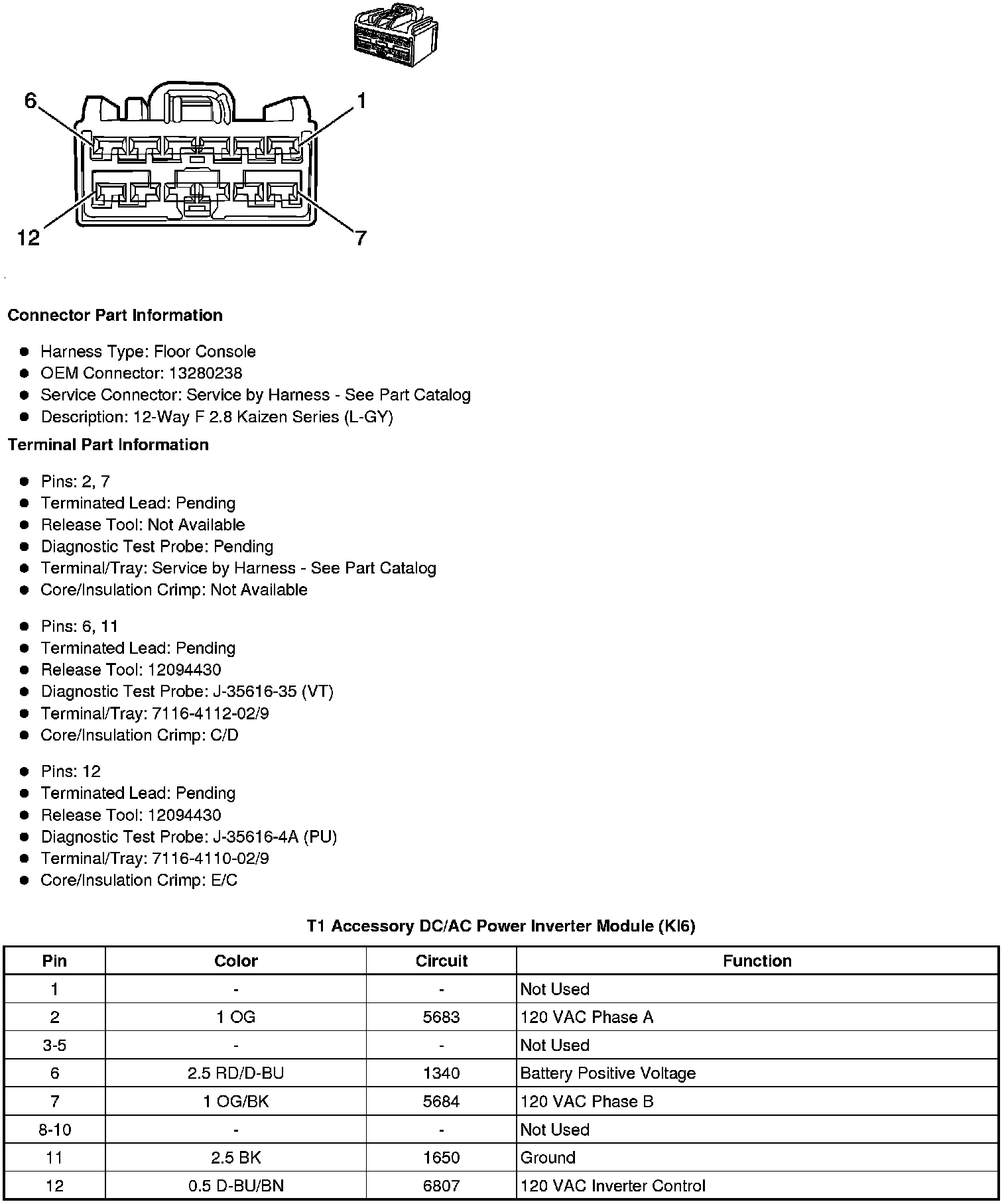

T1 Accessory DC/AC Power Inverter Module (KI6)
Component Connector End Views
T1 Accessory DC/AC Power Inverter Module (KI6)
