M93 Ignition Lock Control Solenoid Actuator (MDK or MH7)
M93 Ignition Lock Control Solenoid Actuator (MDK or MH7)

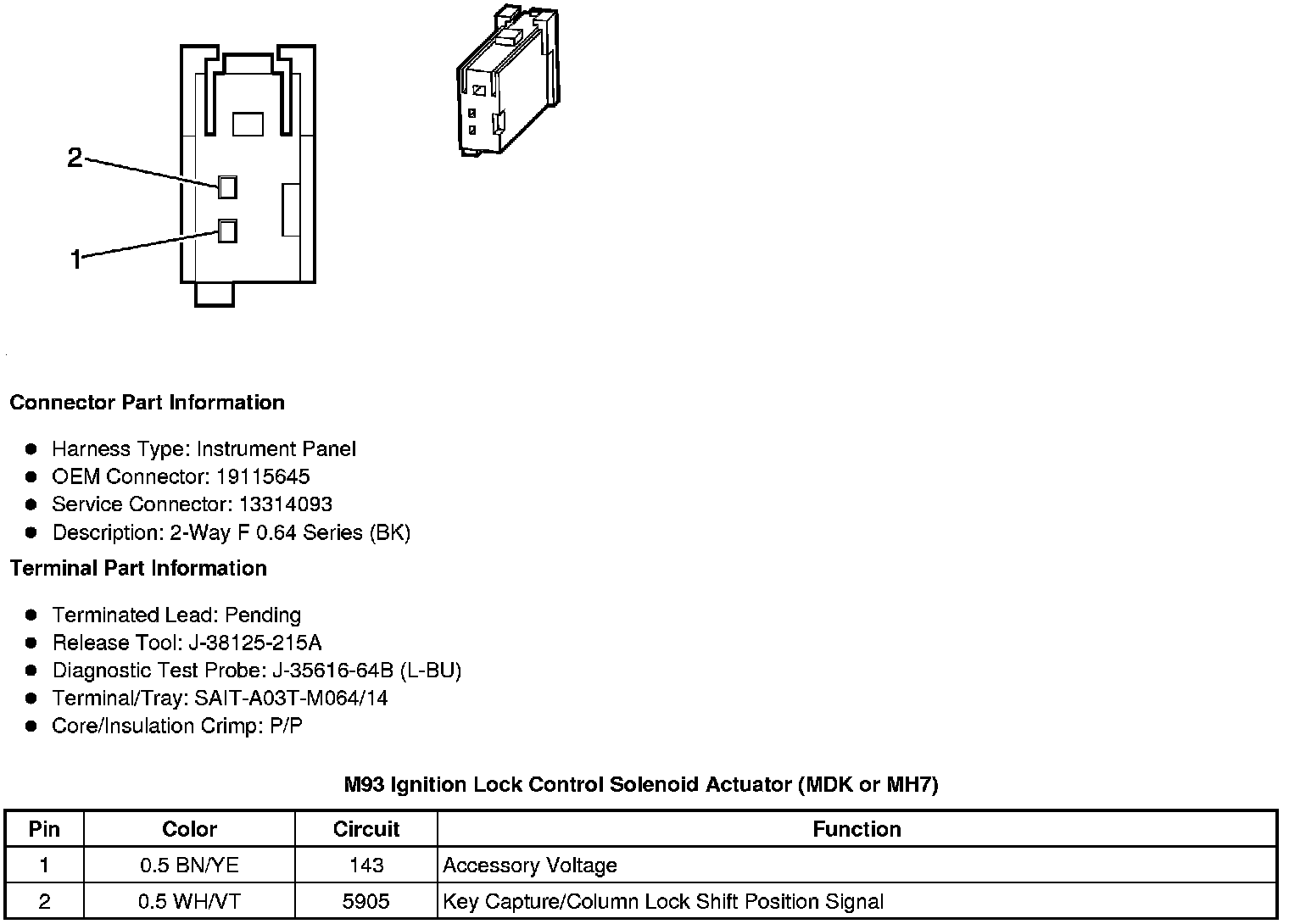

Component Connector End Views
M93
Ignition Lock
Control Solenoid Actuator (MDK or MH7)
