Connector End Views By Name
>>

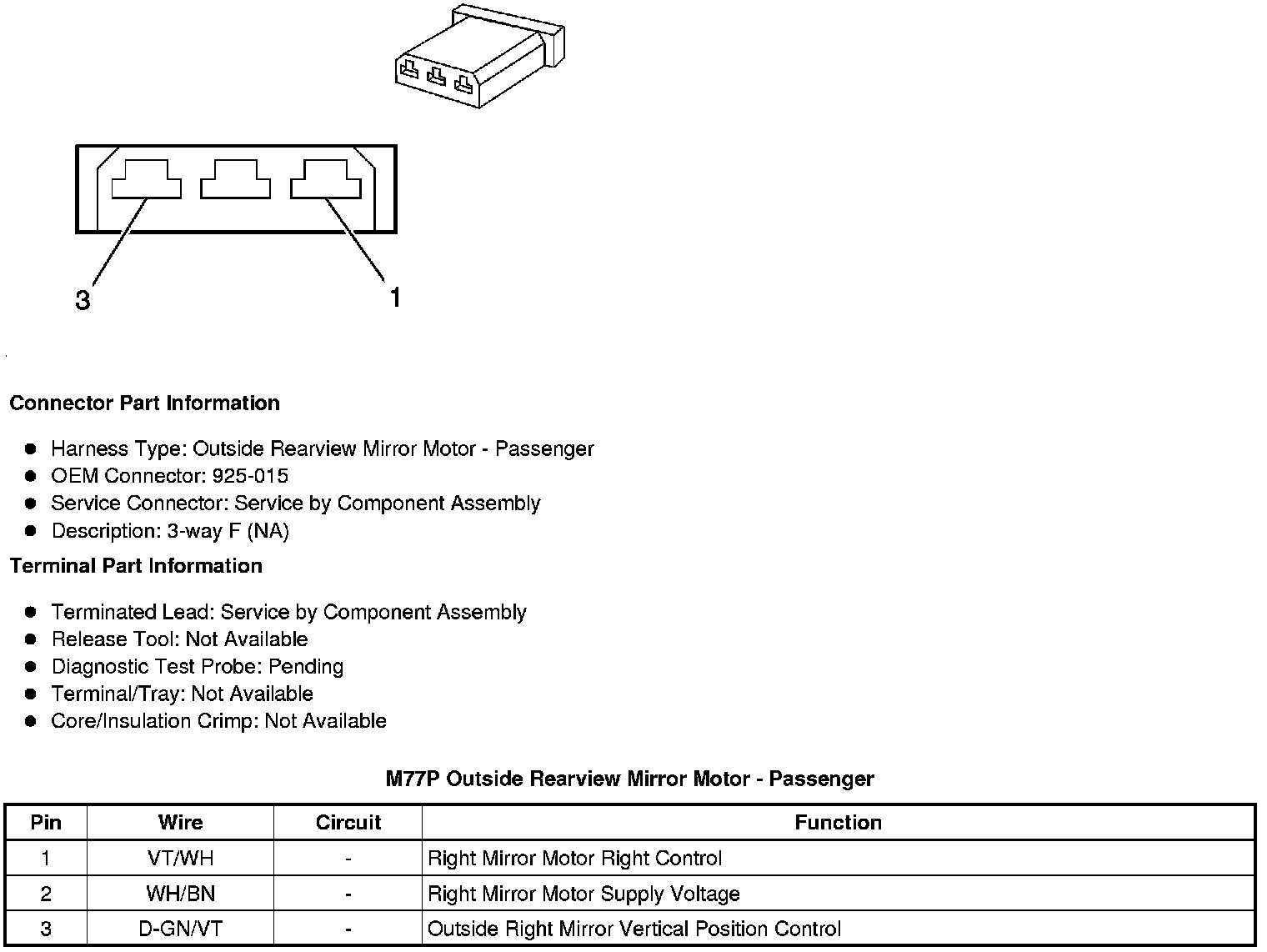

M77P Outside Rearview Mirror Motor - Passenger
M77P Outside Rearview Mirror Motor - Passenger
Component Connector End Views
M77P Outside Rearview Mirror Motor - Passenger
