F106LR Side Air Bag - Left Rear X1 (AW7)
F106LR Side Air Bag - Left Rear X1 (AW7)
Component Connector End Views

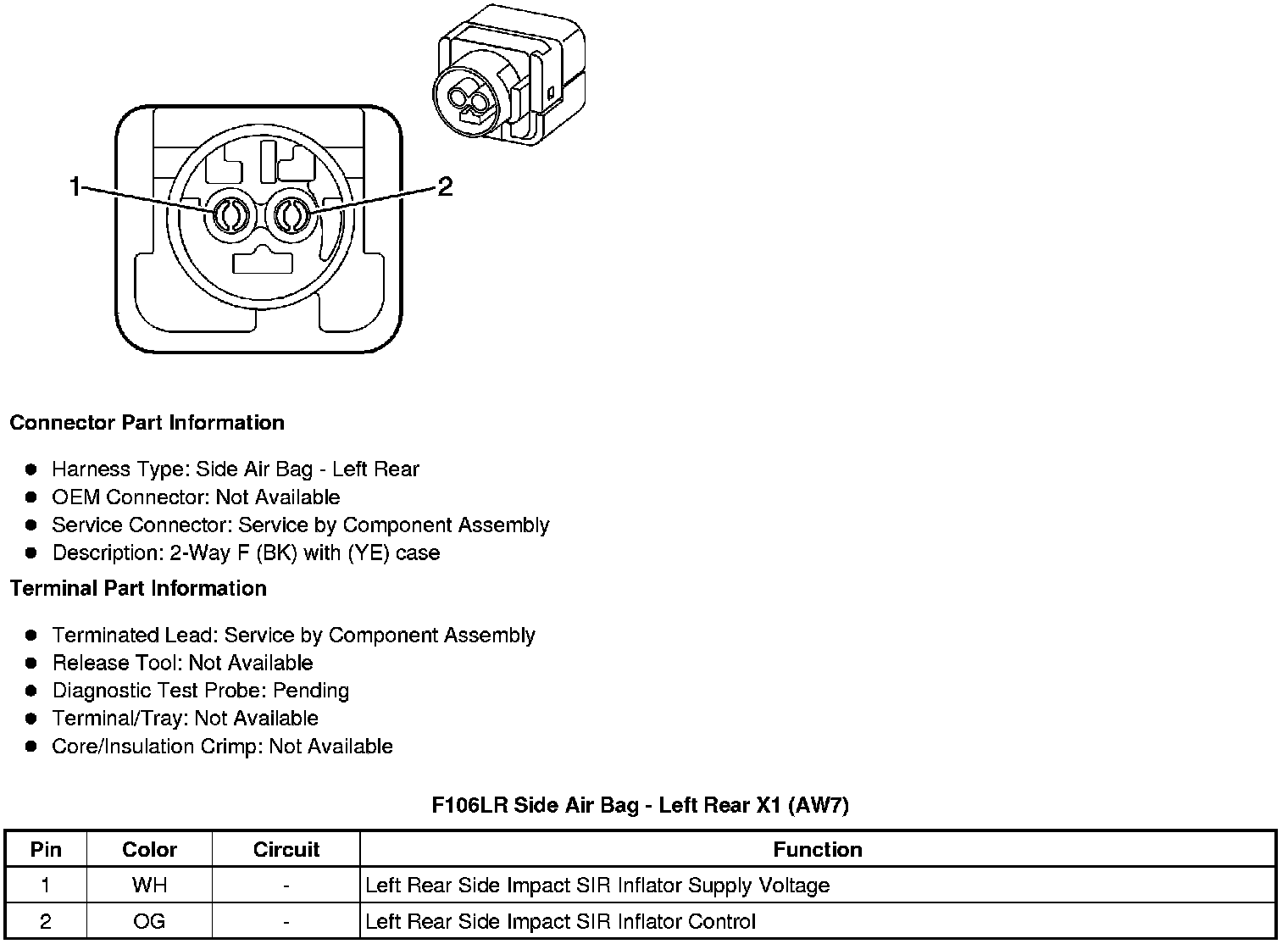

F106LR Side Air Bag - Left Rear X1 (AW7)
