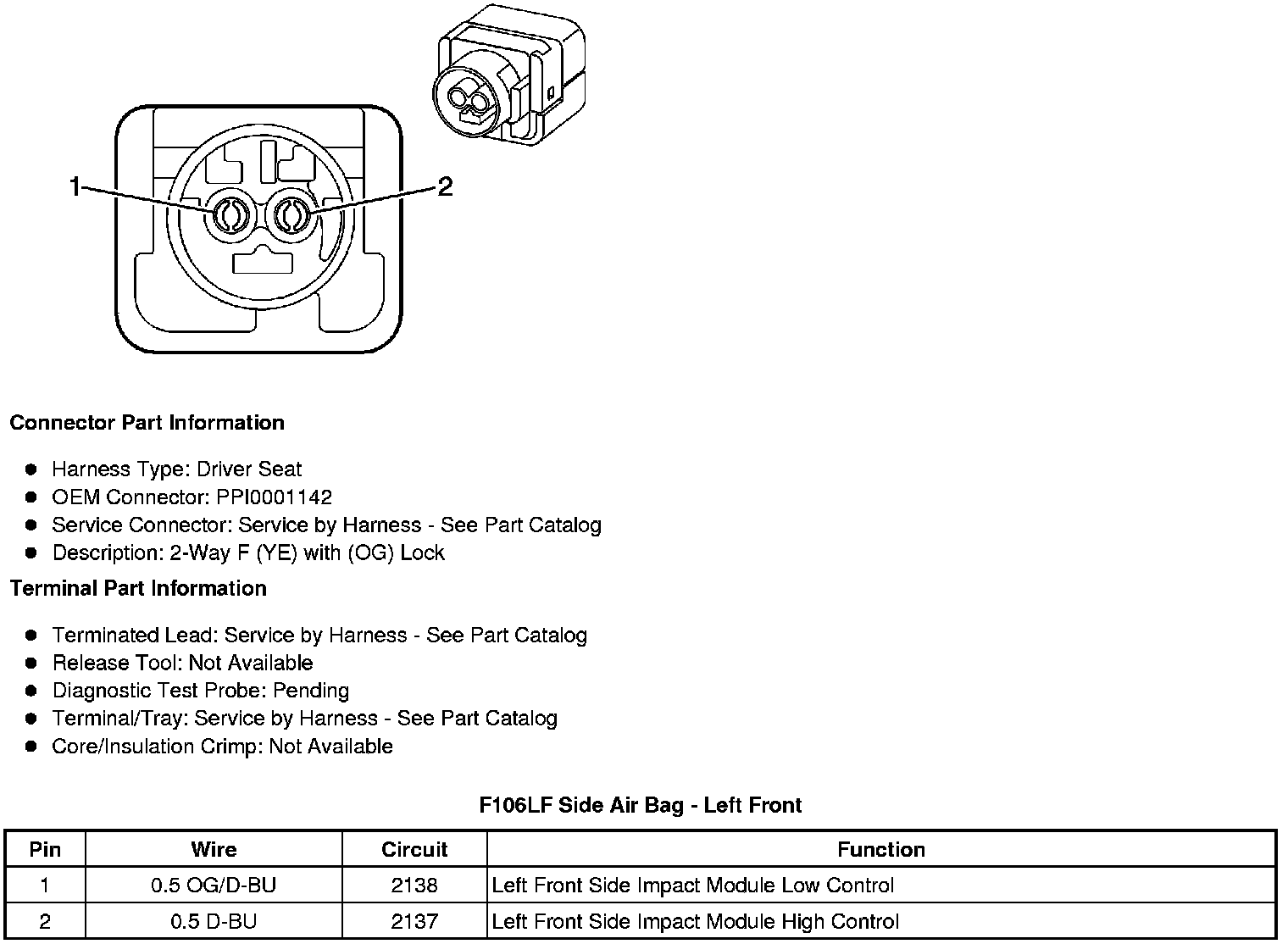

F106LF Side Air Bag - Left Front




Component Connector End Views

F106LF Side Air Bag - Left Front
