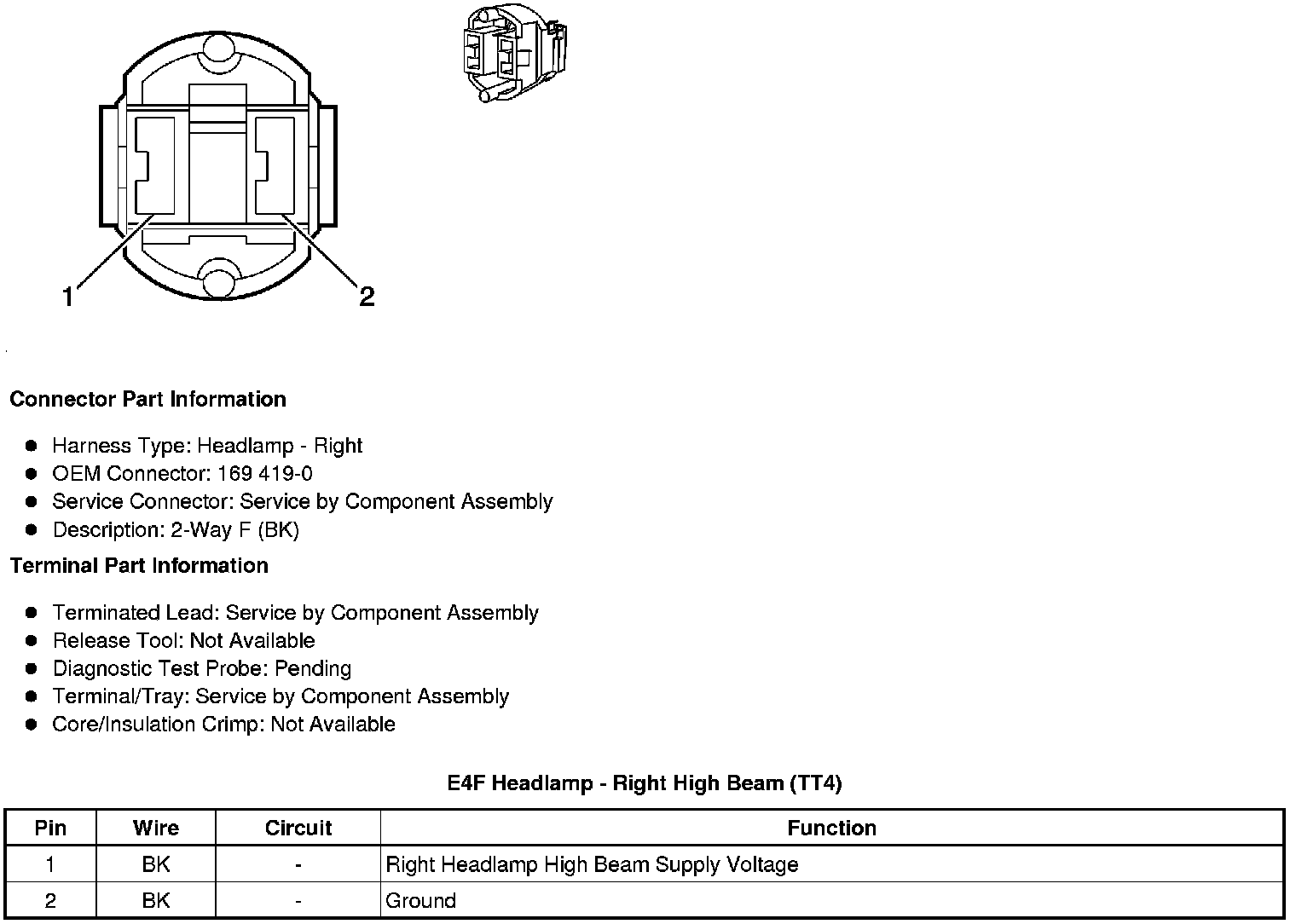

E4F Headlamp - Right High Beam (TT4)
E4F Headlamp - Right High Beam (TT4)
Component Connector End Views
E4F Headlamp - Right High Beam (TT4)
