Home
>>
Buick
>>
2011
>>
Regal L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Connector End Views By Name
>>

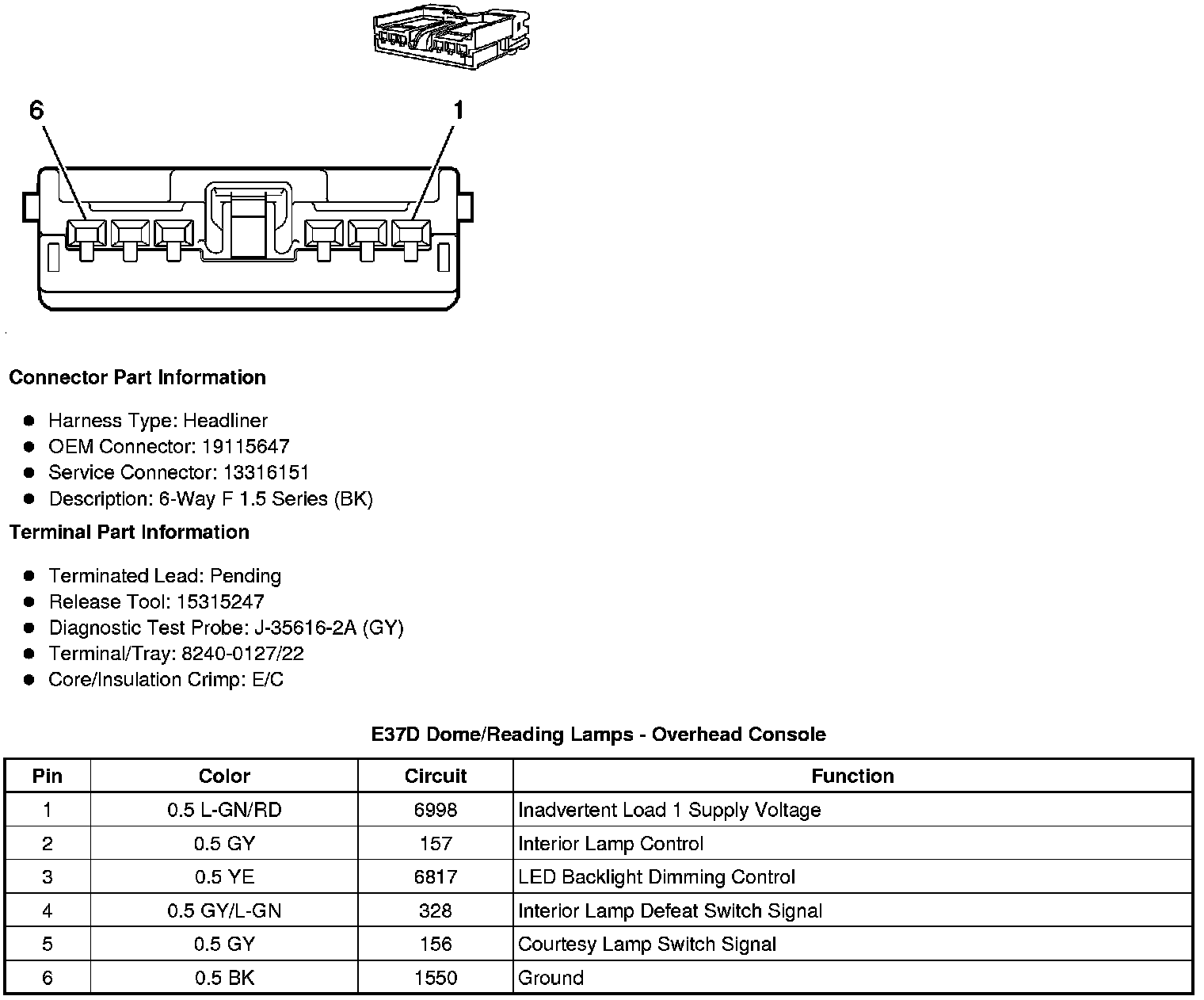

E37D Dome/Reading Lamps - Overhead Console
E37D Dome/Reading Lamps - Overhead Console
Component Connector End Views
E37D Dome/Reading Lamps - Overhead Console
