E2RF Side Marker Lamp - Right Front (TT4)
E2RF Side Marker Lamp - Right Front (TT4)
Component Connector End Views

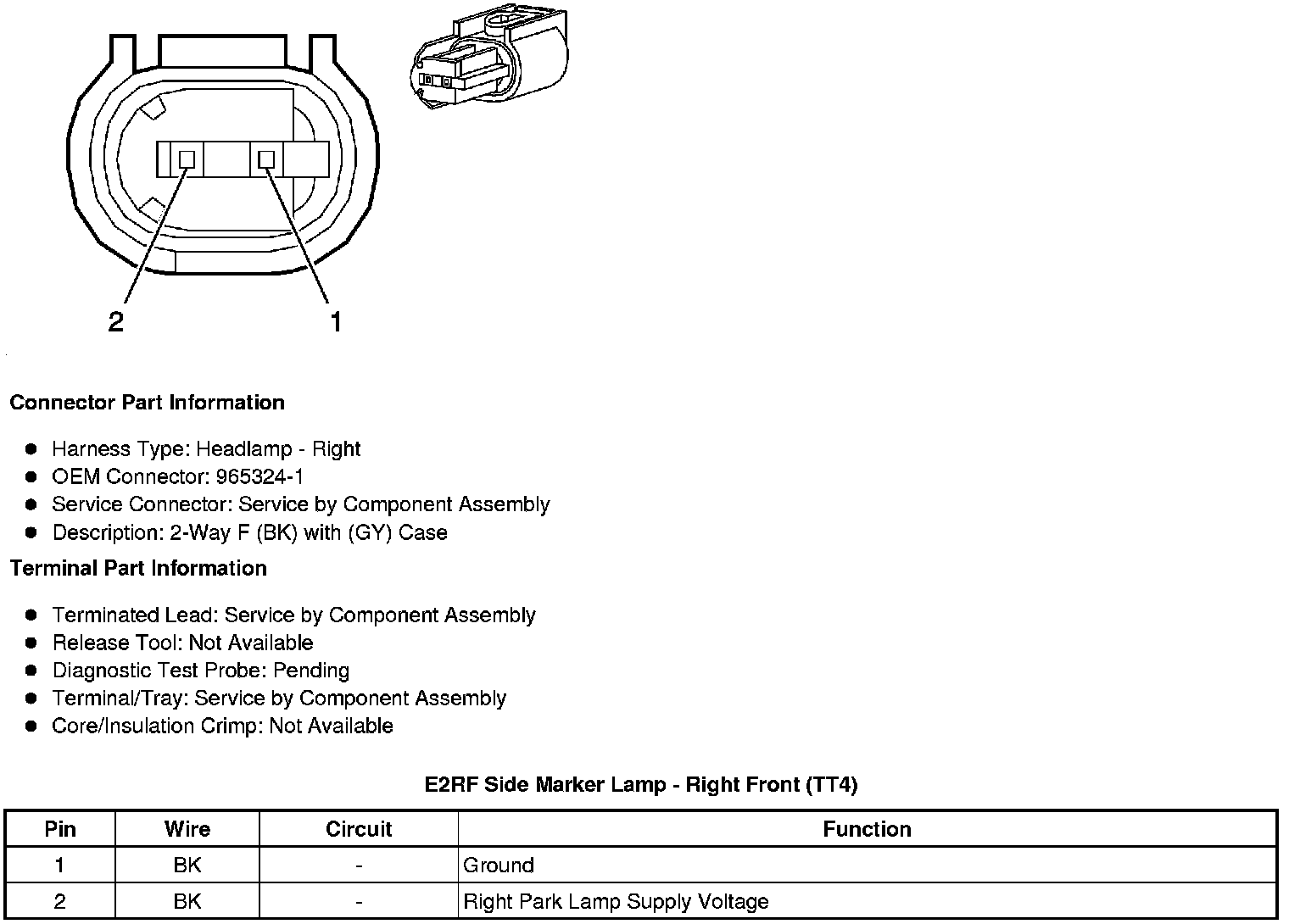

E2RF Side Marker Lamp - Right Front (TT4)
