A14P Seat Lumbar Support Pump - Passenger (APH)
A14P Seat Lumbar Support Pump - Passenger (APH)
Component Connector End Views

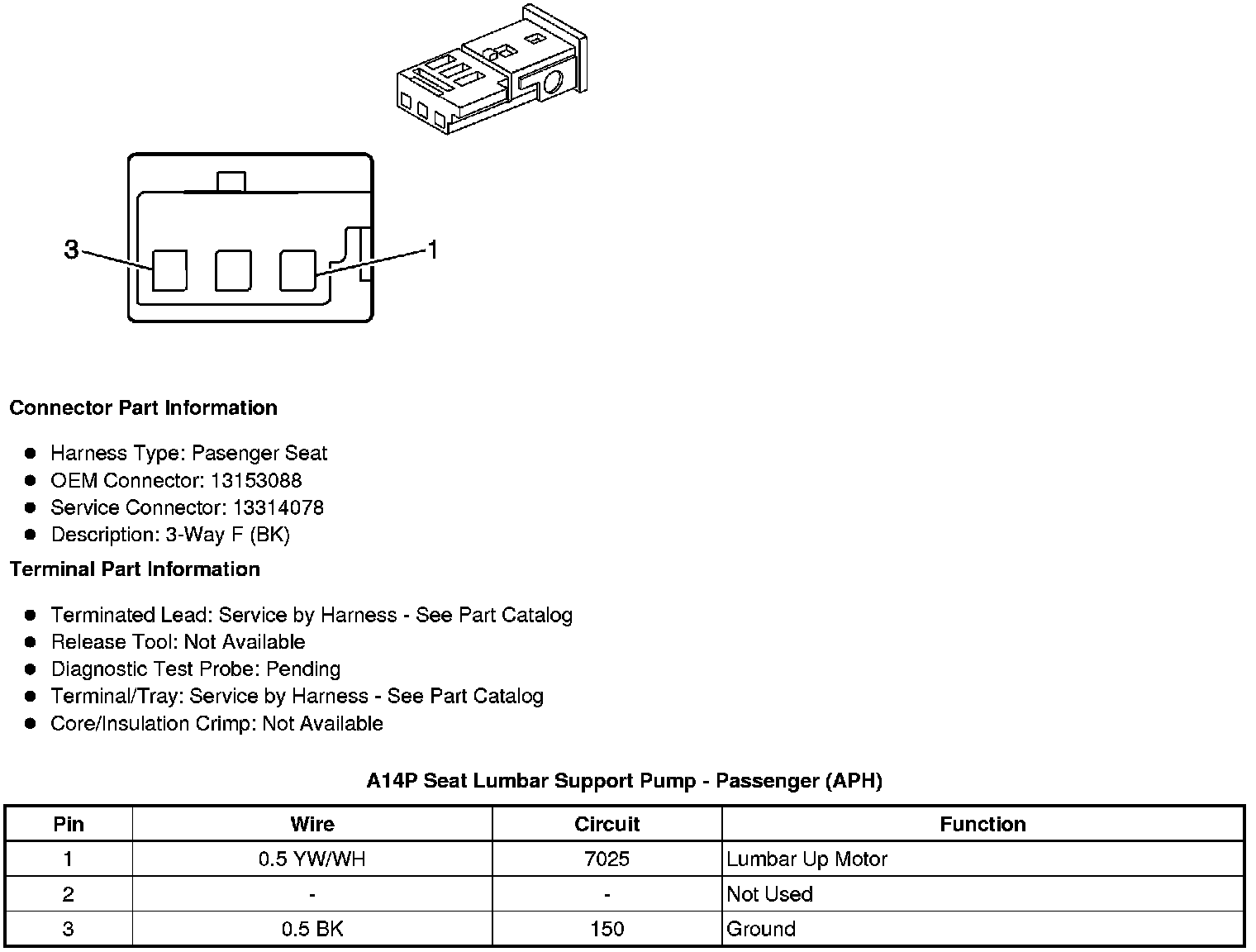

A14P Seat Lumbar Support Pump - Passenger (APH)
