Fuse Block - Instrument Panel




Electrical Center Identification Views

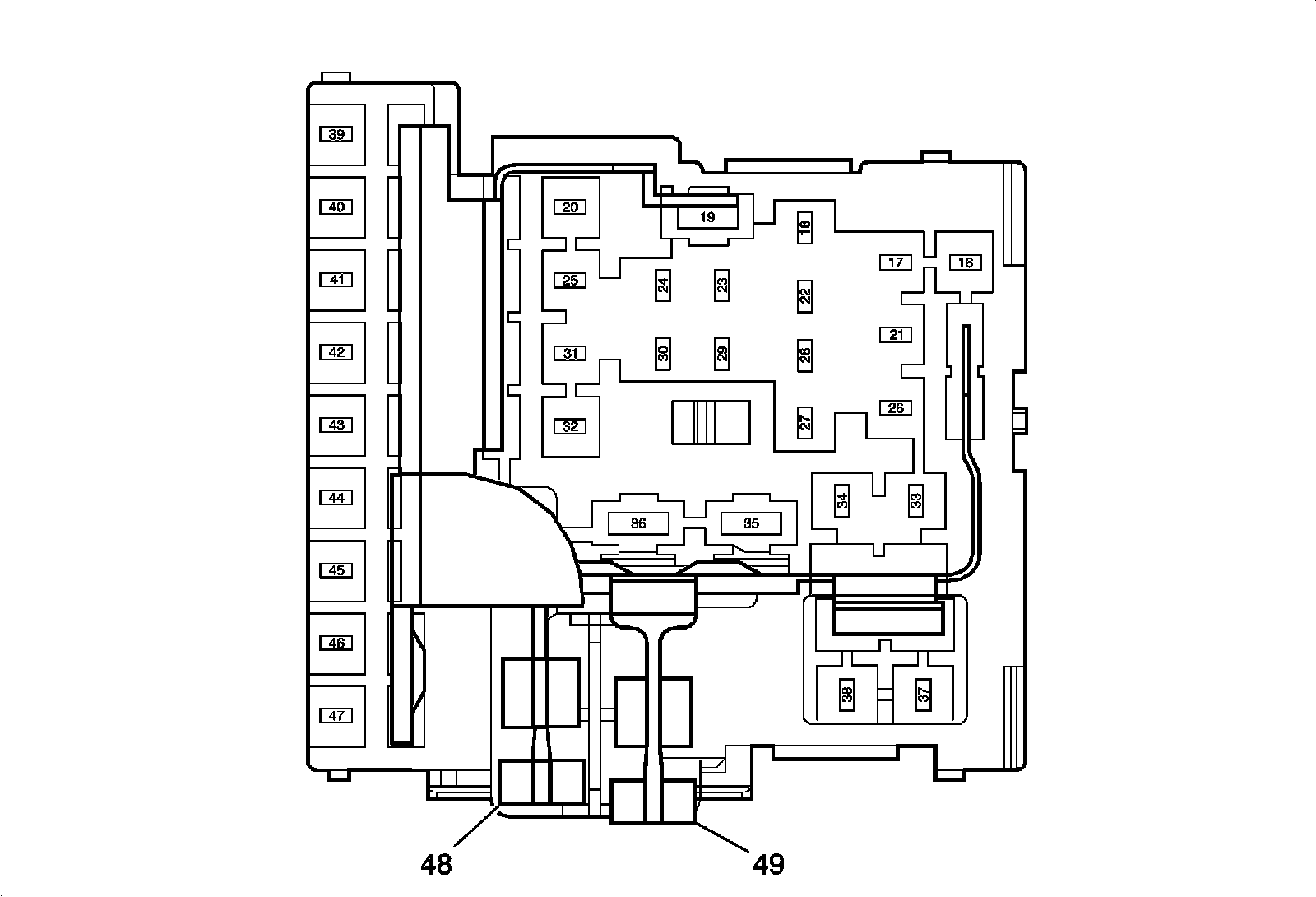

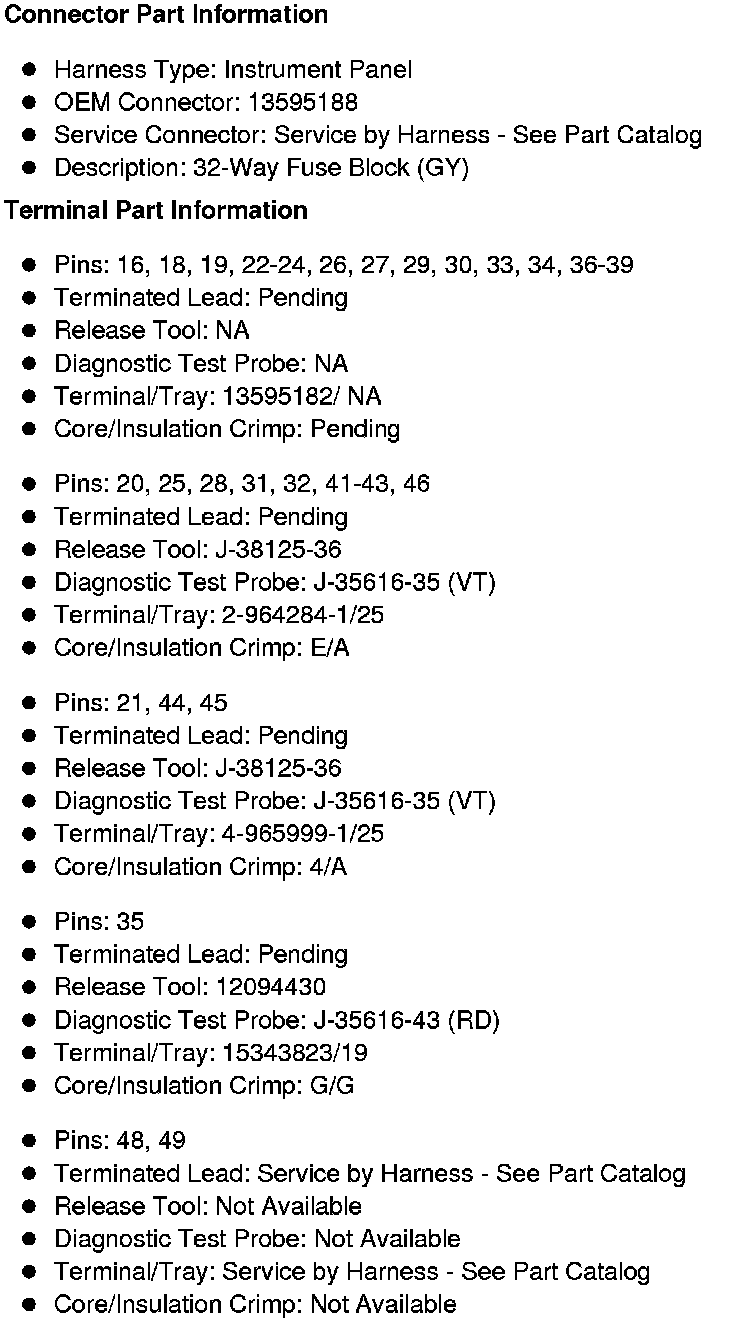

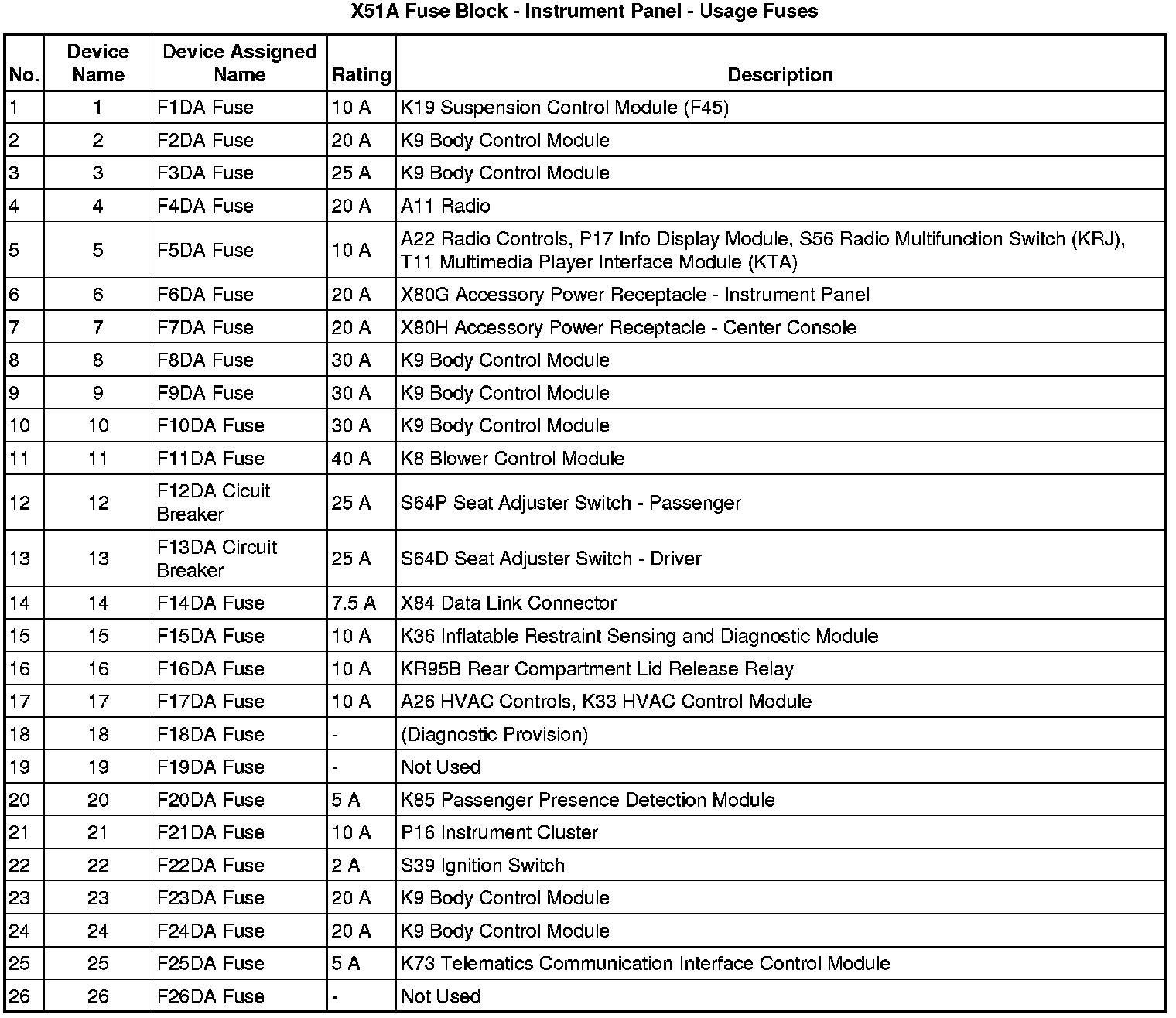

X51A Fuse Block - Instrument Panel - Top View Fuses

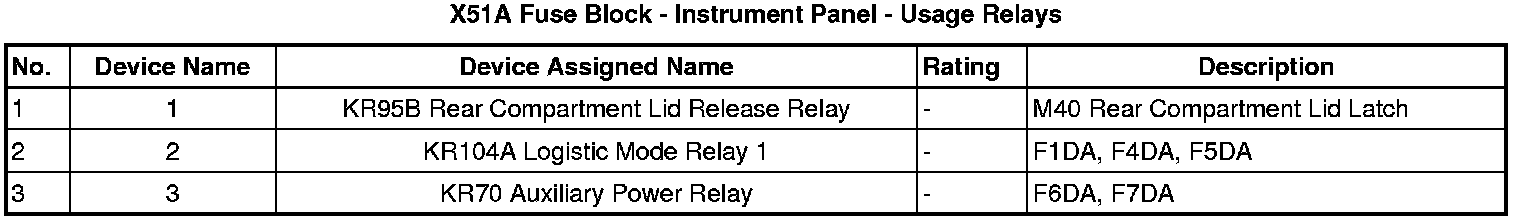

X51A Fuse Block - Instrument Panel - Top View Relays

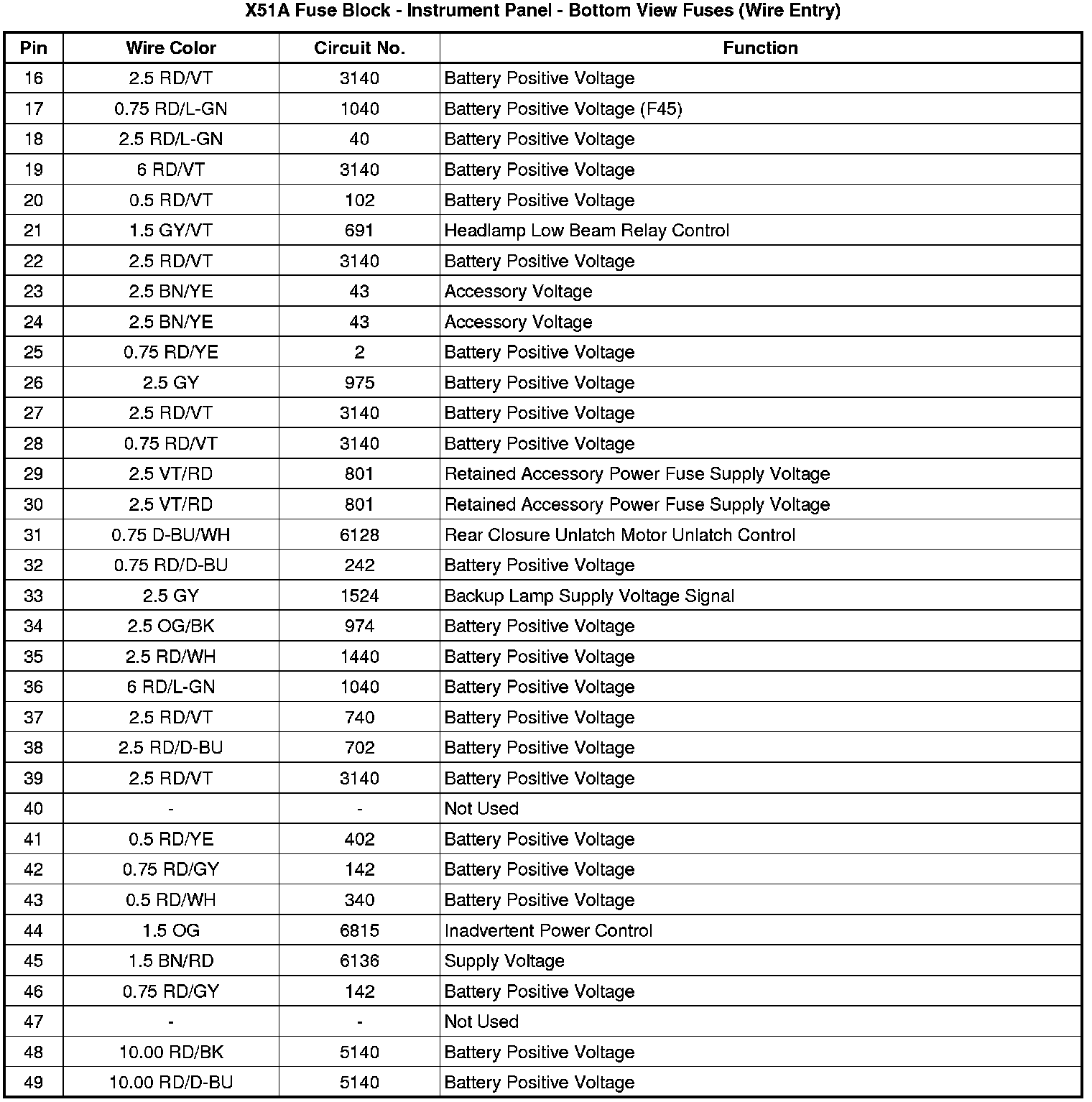

X51A Fuse Block - Instrument Panel - Bottom View Fuses

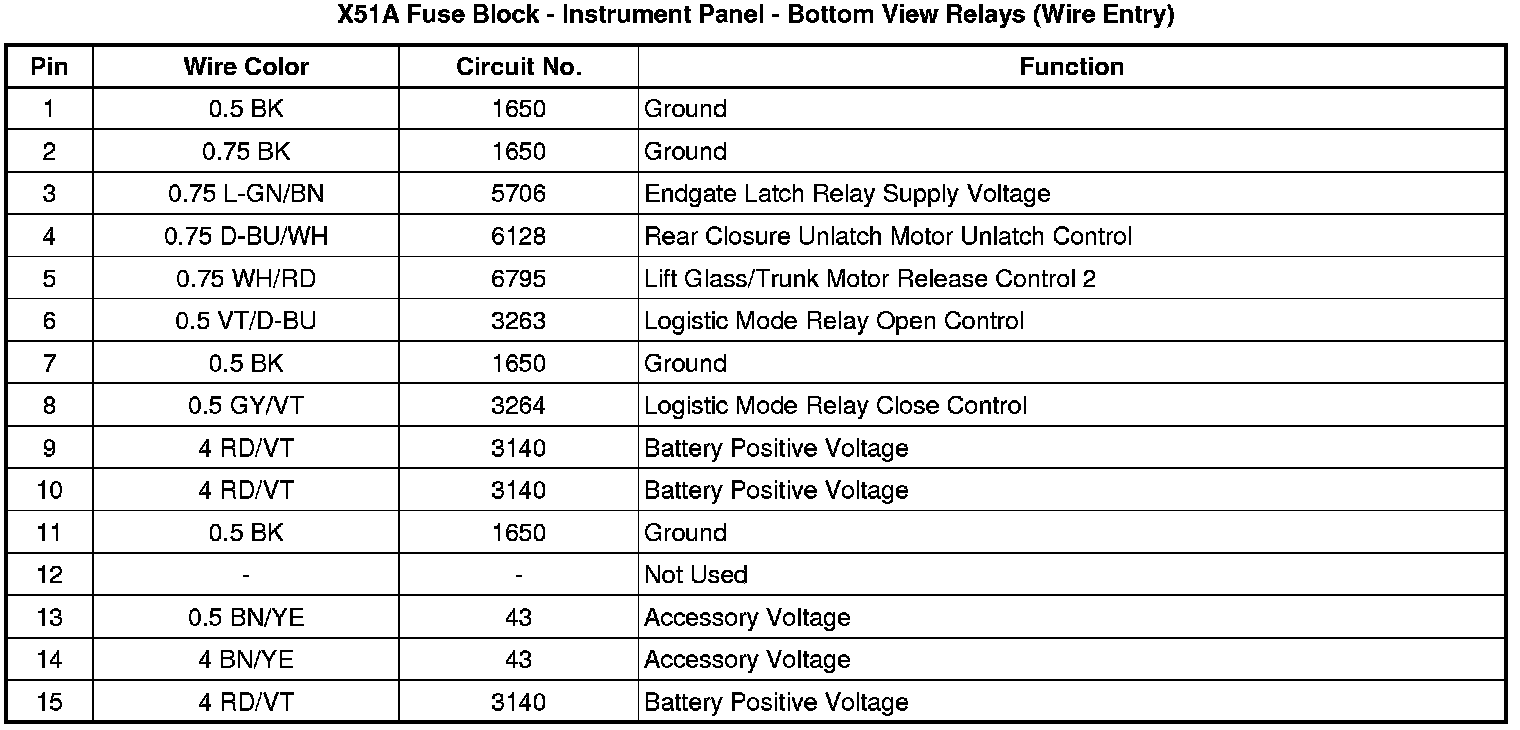

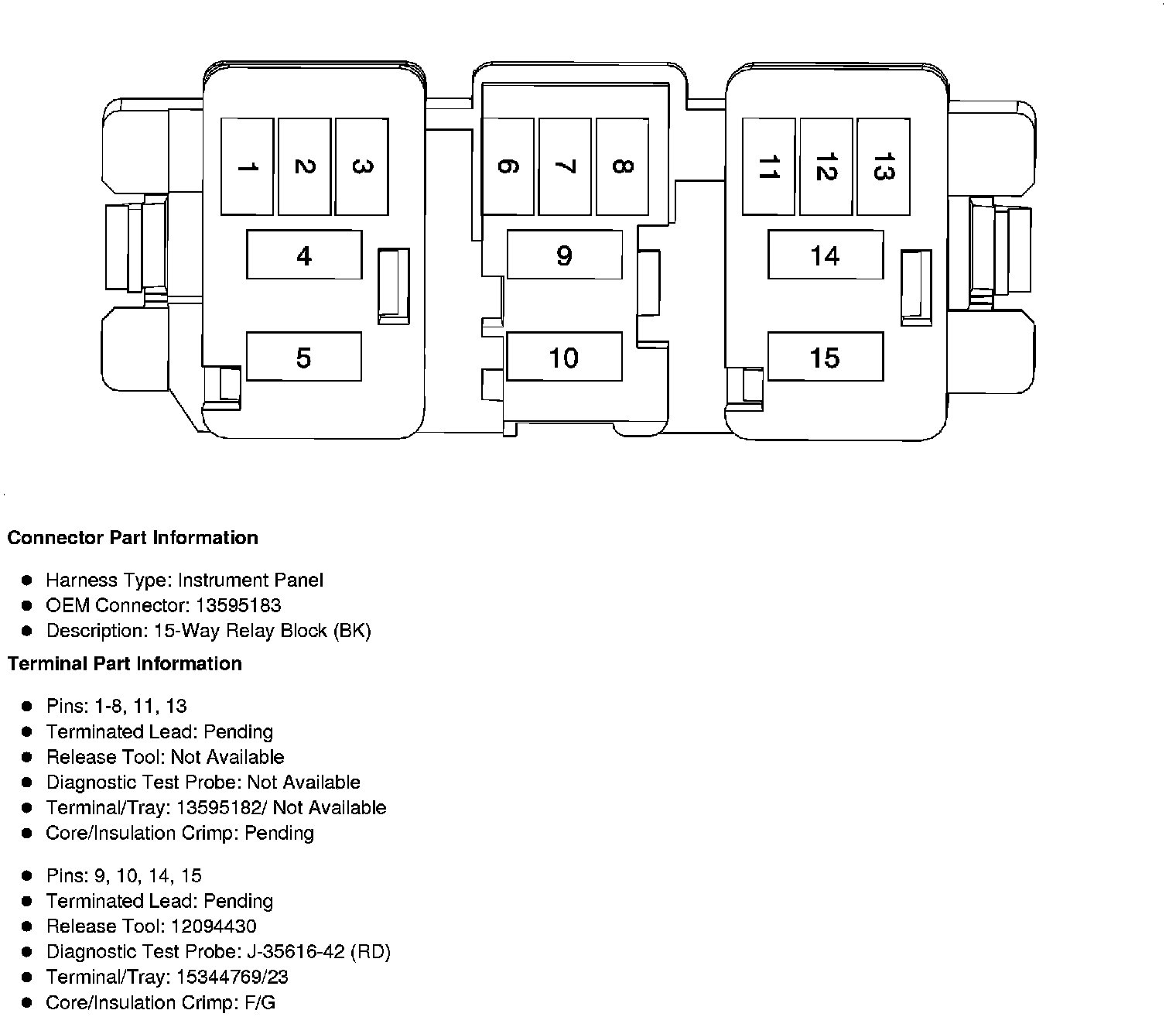

X51A Fuse Block - Instrument Panel - Bottom View Relays
