X81 Accessory Power Receptacle - 110V AC X2 (KI6)
X81 Accessory Power Receptacle - 110V AC X2 (KI6)

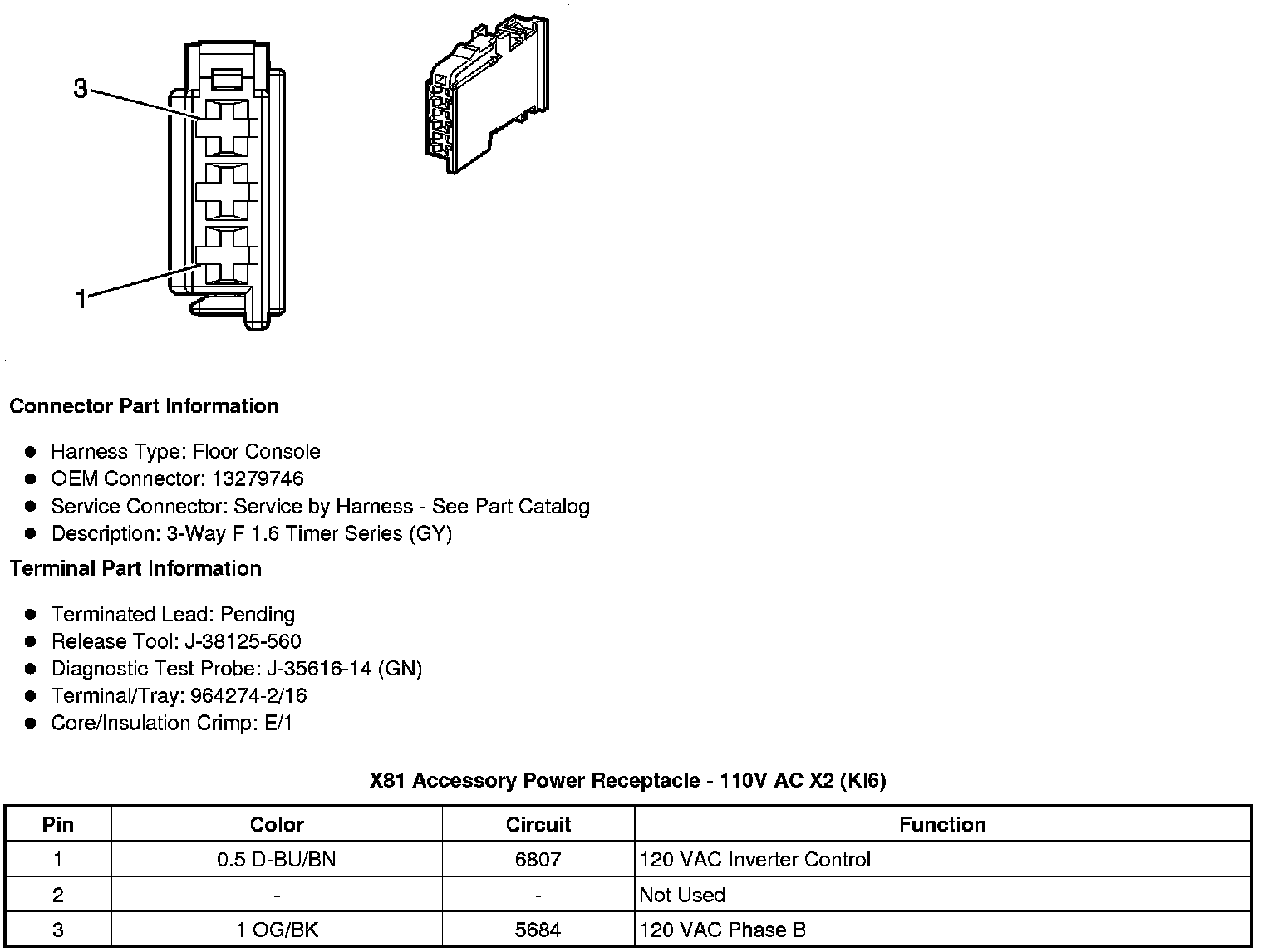

Component Connector End Views
X81 Accessory Power Receptacle - 110V AC X2 (KI6)
