Home >> Buick >> 2011 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Wheel Alignment Specifications

Wheel Alignment Specifications






WHEEL ALIGNMENT SPECIFICATIONS

Condition: Full tank, no passengers and placed on plane ground.

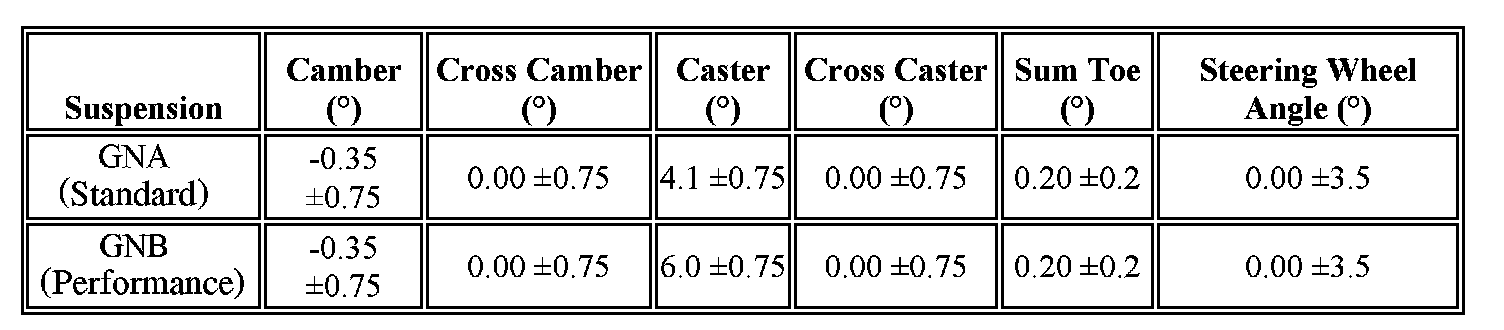

Front Suspension

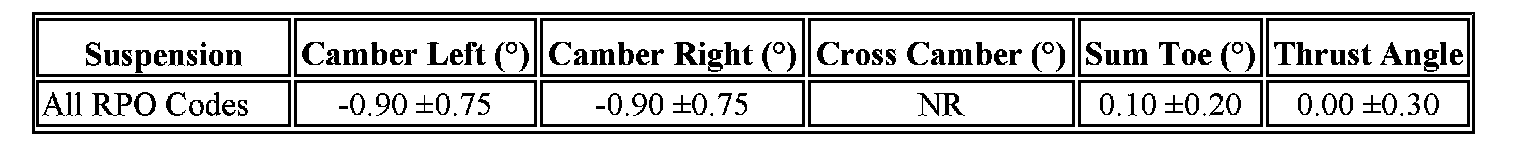

Rear Suspension
