Upper Left Side of the I/P Components




Instrument Panel/Center Console Component Views

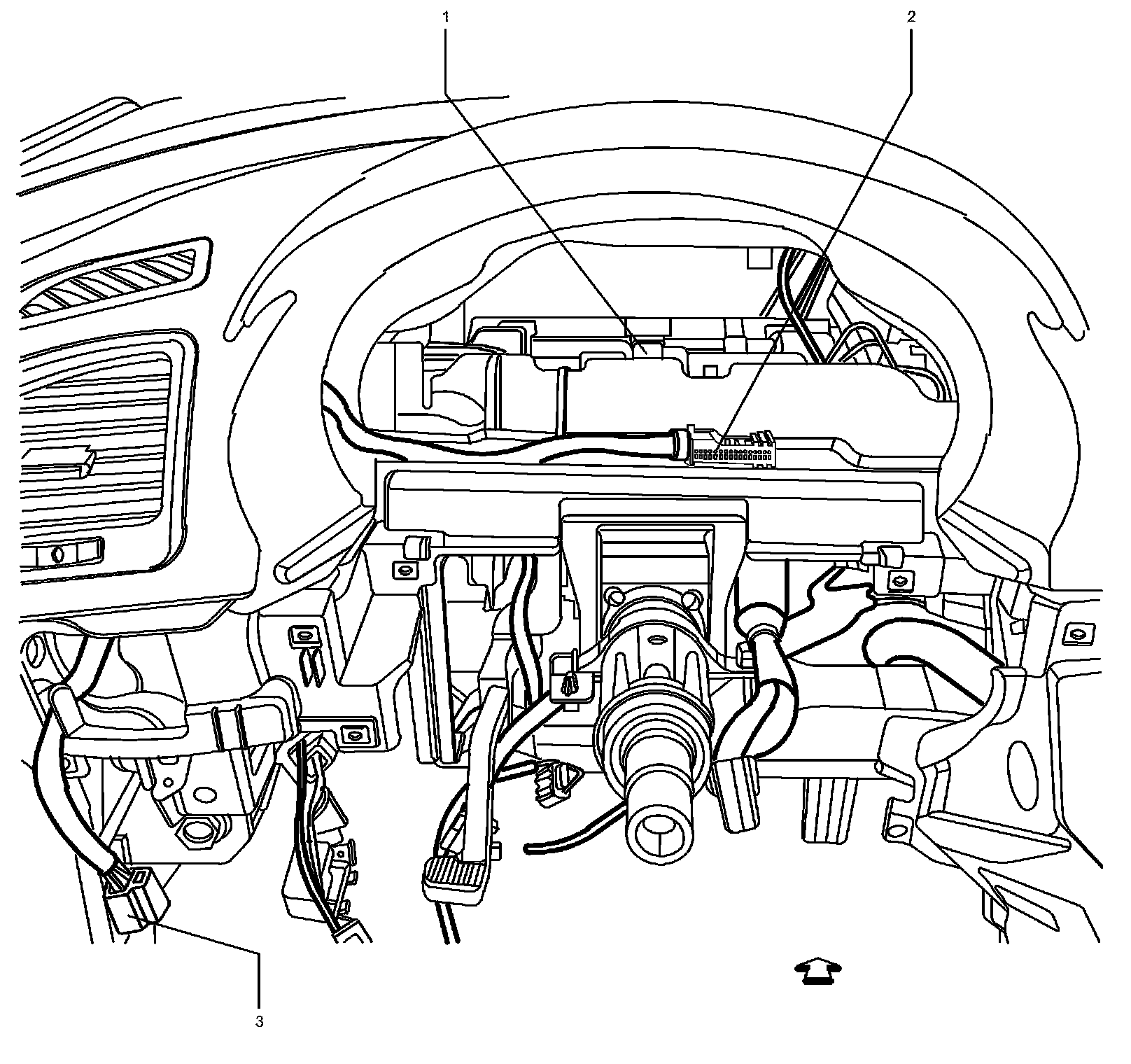

Upper Left Side of the I/P Components




1 - R6 Data Link Resistor
2 - P16 Instrument Cluster
3 - S30 Headlamp Switch
