Q51P Seat Lumbar Adjuster Valve Assembly - Passenger (APH)
Q51P Seat Lumbar Adjuster Valve Assembly - Passenger (APH)

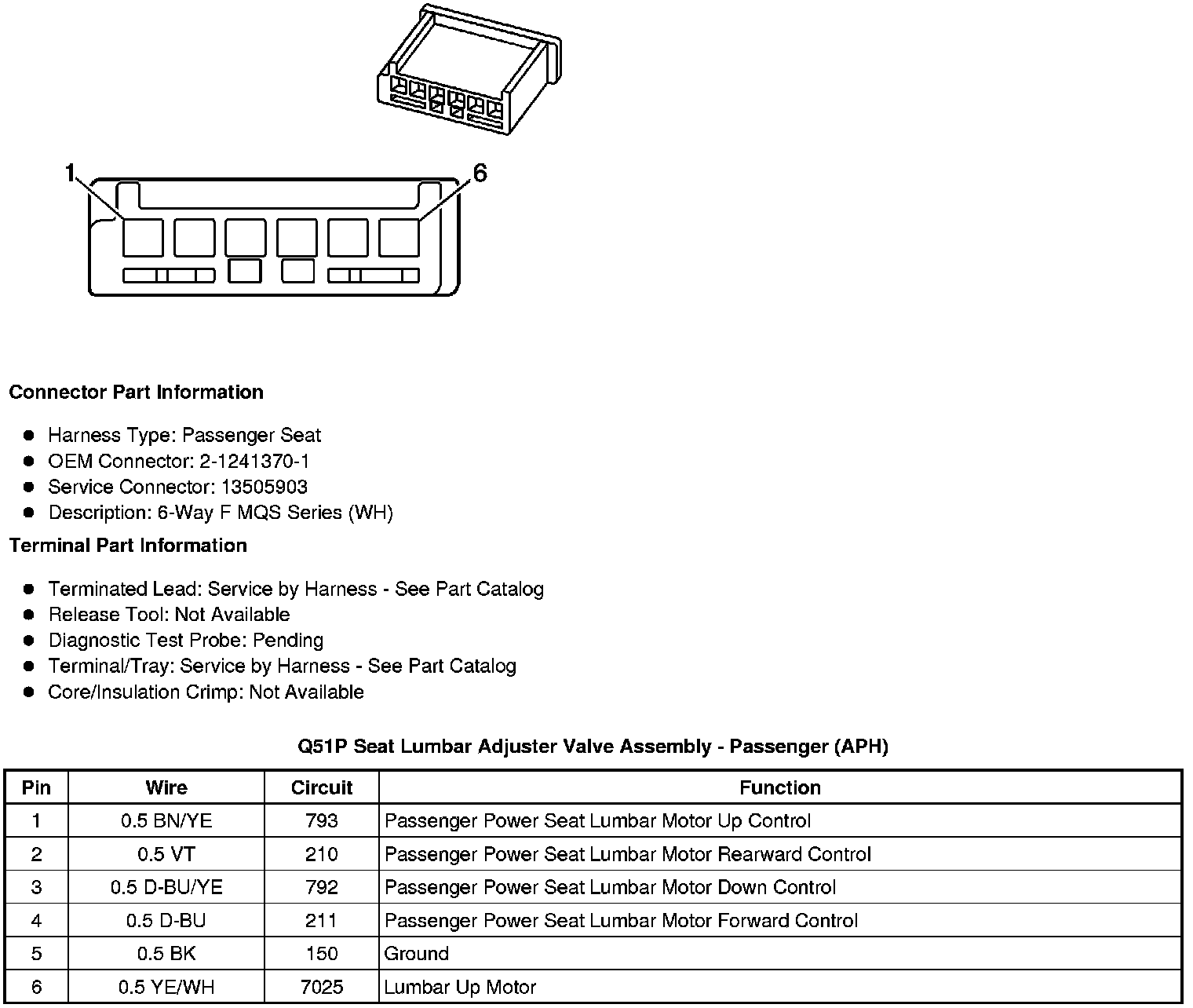

Component Connector End Views
Q51P Seat Lumbar Adjuster Valve Assembly - Passenger (APH)
