B198 Fuel Composition Sensor
B198 Fuel Composition Sensor

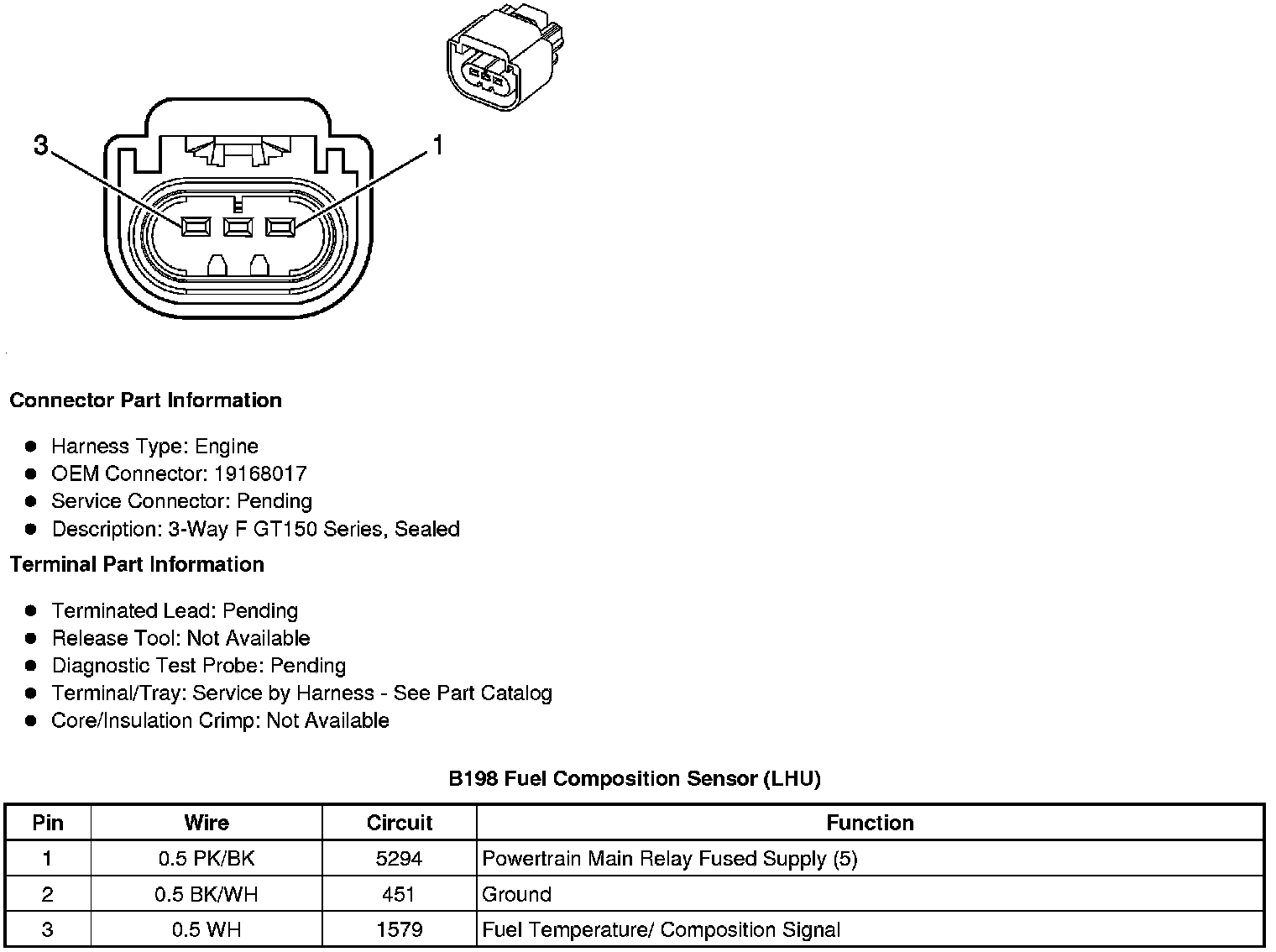

Component Connector End Views
B198 Fuel Composition Sensor (LHU)
