Disassembled Views

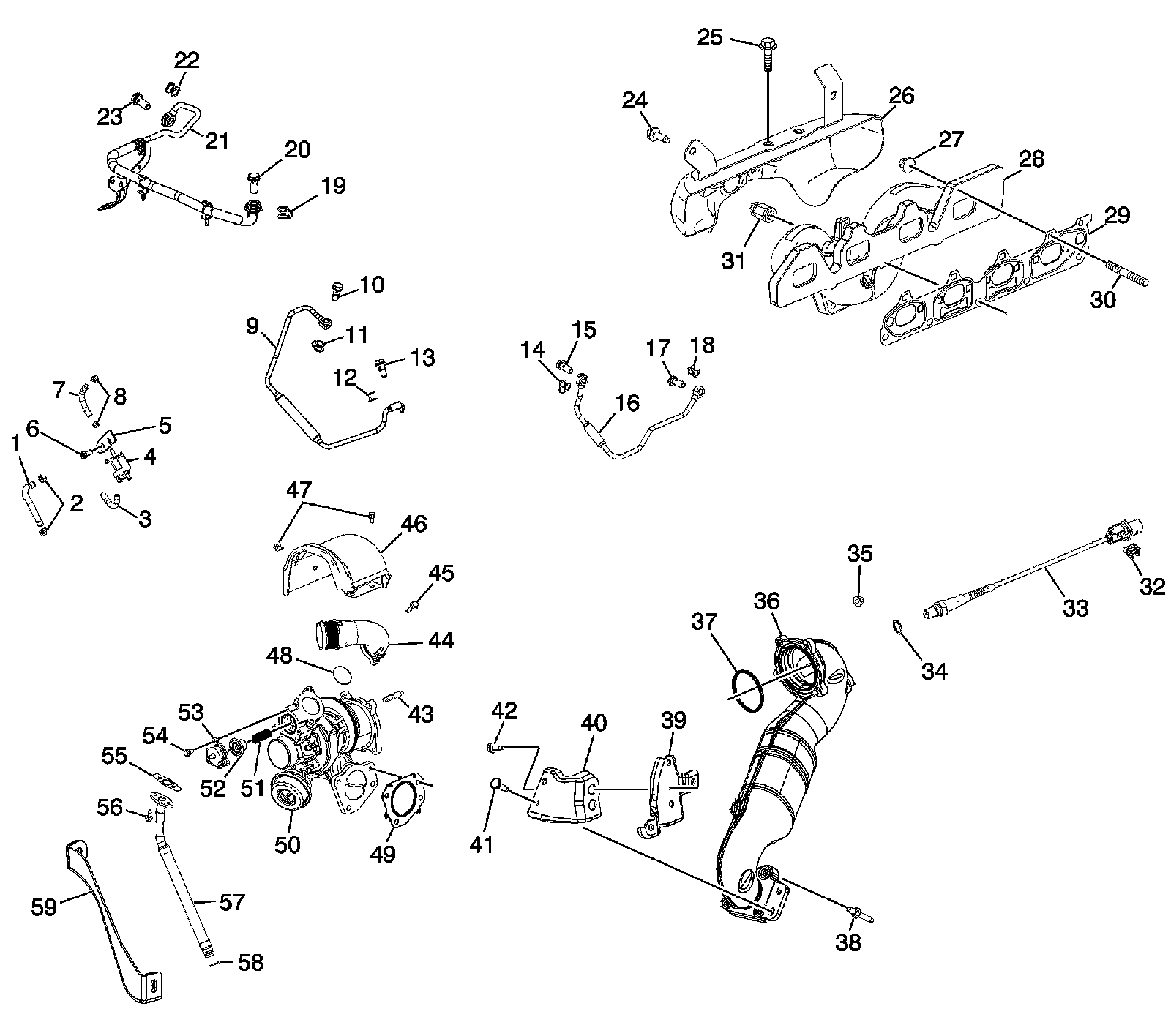

Disassembled Views (LDK, LHU) (2.0L)

Exhaust Manifold and Components




1 - Turbocharger Wastegate Regulator Solenoid Hose
2 - Turbocharger Wastegate Regulator Solenoid Hose Clamp
3 - Turbocharger Wastegate Regulator Solenoid Hose
4 - Turbocharger Wastegate Regulator Solenoid Valve Assembly
5 - Turbocharger Wastegate Regulator Solenoid Valve Bracket
6 - Turbocharger Wastegate Regulator Solenoid Valve Bracket Bolt/Screw
7 - Turbocharger Wastegate Regulator Solenoid Hose
8 - Turbocharger Wastegate Regulator Solenoid Hose Clamp
9 - Turbocharger Oil Feed Pipe
10 - Turbocharger Oil Feed Pipe Bolt
11 - Turbocharger Oil Feed Pipe Gasket
12 - Turbocharger Oil Feed Pipe Gasket
13 - Turbocharger Oil Feed Pipe Bolt
14 - Turbocharger Coolant Return Pipe Gasket
15 - Turbocharger Coolant Return Pipe Bolt
16 - Turbocharger Coolant Return Pipe
17 - Turbocharger Coolant Return Pipe Bolt
18 - Turbocharger Coolant Return Pipe Gasket
19 - Turbocharger Coolant Feed Pipe Gasket
20 - Turbocharger Coolant Feed Pipe Bolt
21 - Turbocharger Coolant Feed Pipe
22 - Turbocharger Coolant Feed Pipe Gasket
23 - Turbocharger Coolant Feed Pipe Bolt
24 - Exhaust Manifold Heat Shield Bolt
25 - Exhaust Manifold Heat Shield Bolt
26 - Exhaust Manifold Heat Shield
27 - Exhaust Manifold Nut
28 - Exhaust Manifold
29 - Exhaust Manifold Gasket
30 - Exhaust Manifold Stud
31 - Exhaust Manifold Nut - Inverted Torx(R)
32 - Oxygen Sensor Fastener
33 - Oxygen Sensor
34 - Oxygen Sensor Gasket
35 - Catalytic Converter Nut
36 - Catalytic Converter
37 - Catalytic Converter Seal
38 - Catalytic Converter Stud
39 - Catalytic Converter Bracket
40 - Catalytic Converter L-Bracket
41 - Catalytic Converter Bolt
42 - Catalytic Converter Bracket Bolt
43 - Catalytic Converter Stud
44 - Turbocharger Air Cooler Outlet Pipe
45 - Turbocharger Air Cooler Outlet Pipe Bolt
46 - Turbocharger Heat Shield
47 - Turbocharger Heat Shield Bolts
48 - Turbocharger Air Cooler Outlet Pipe Seal
49 - Turbocharger Gasket
50 - Turbocharger
51 - Turbocharger Air Bypass Valve Spring
52 - Turbocharger Air Bypass Diaphragm Assembly
53 - Turbocharger Air Bypass Valve Cover
54 - Turbocharger Air Bypass Valve Cover Bolt
55 - Turbocharger Oil Return Pipe Gasket
56 - Turbocharger Oil Return Pipe Bolt
57 - Turbocharger Oil Return Pipe
58 - Turbocharger Oil Return Pipe O-Ring
59 - Turbocharger Brace
