B65 Intake Manifold Pressure and Air Temperature Sensor
B65 Intake Manifold Pressure and Air Temperature Sensor

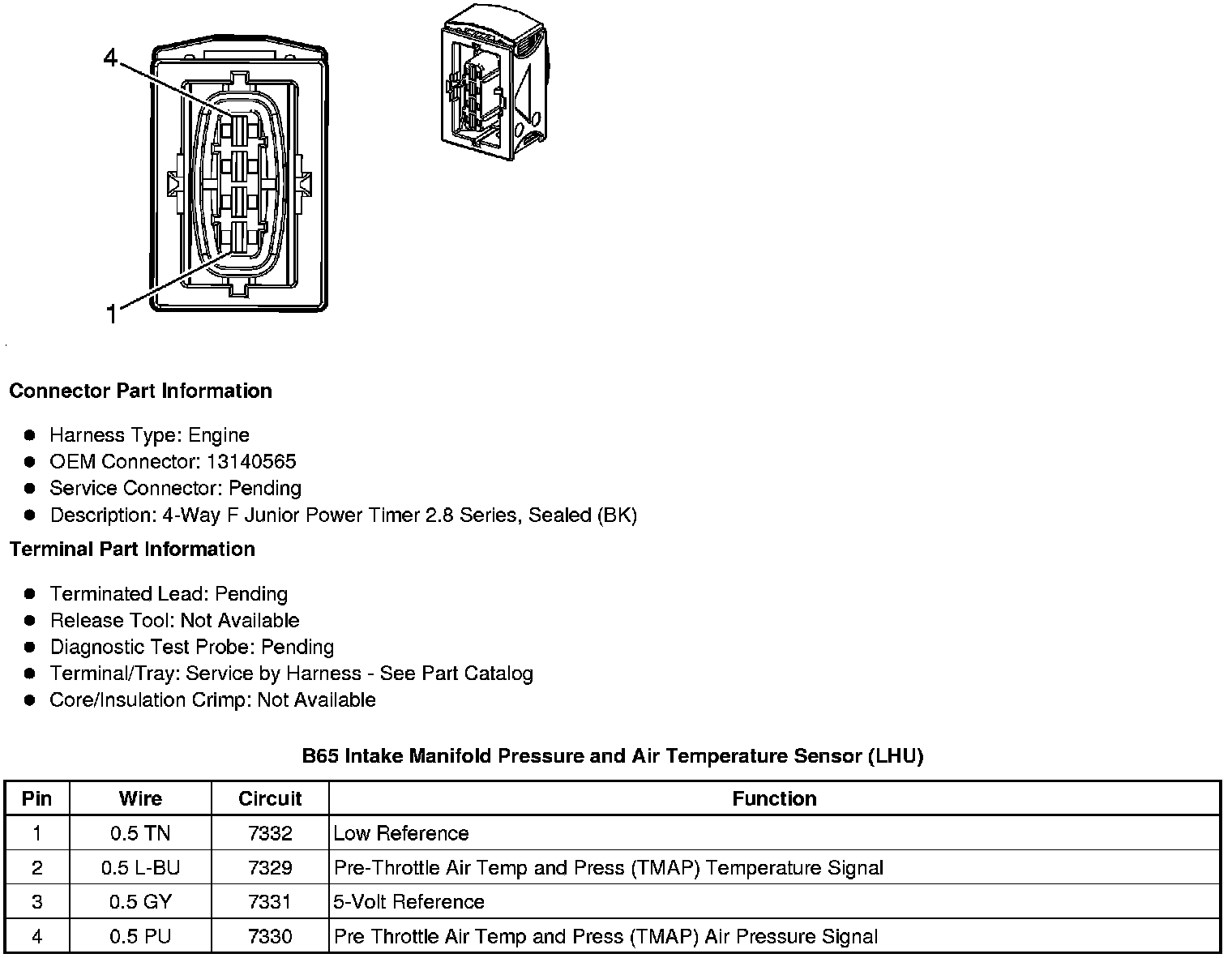

Component Connector End Views
B65 Intake Manifold Pressure and Air Temperature Sensor (LHU)
