X84 Data Link Connector
X84 Data Link Connector

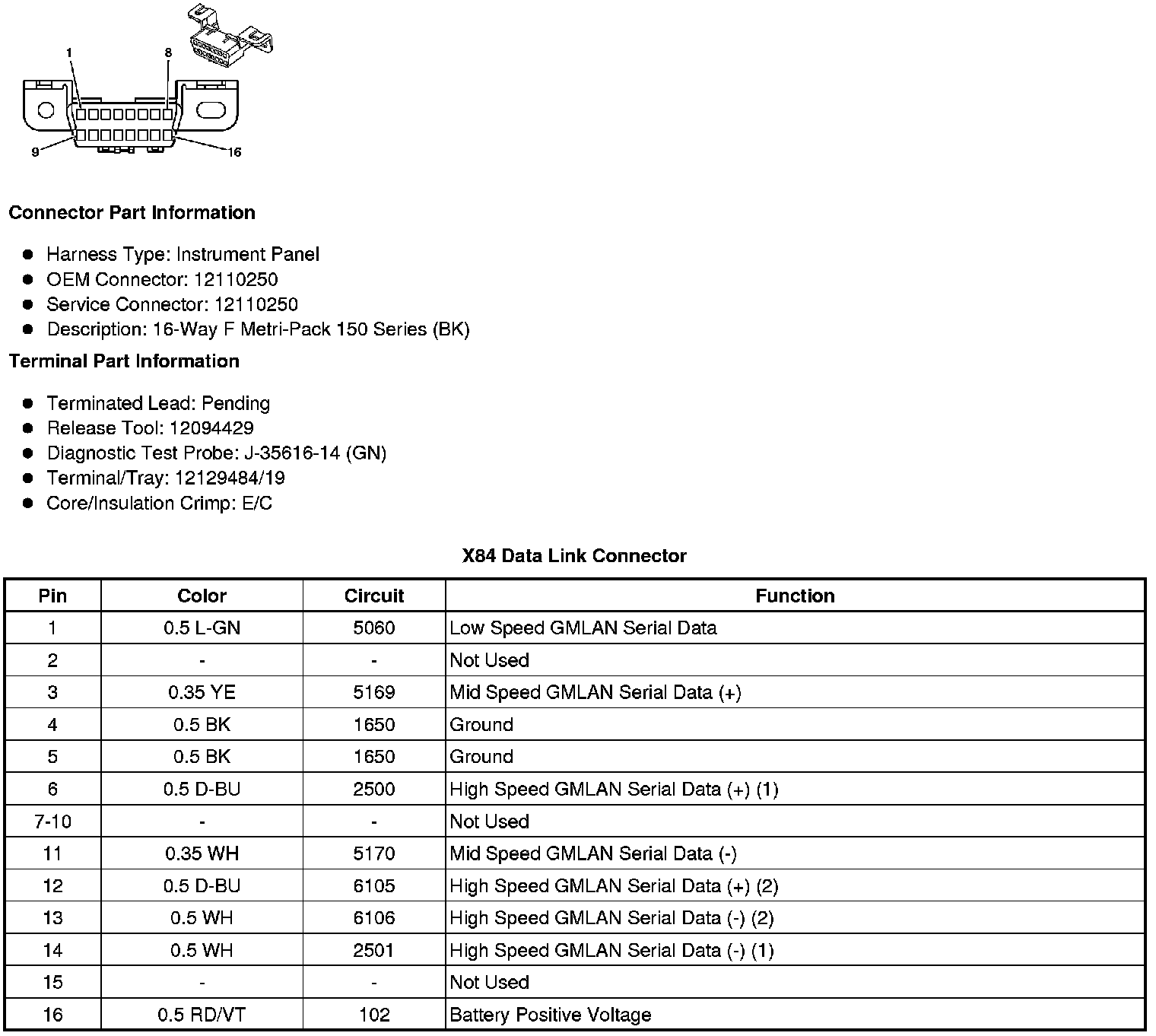

Component Connector End Views
X84 Data Link Connector
