FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Buick
>>
2011
>>
Regal L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Turn Signal Lamp
>>
Diagrams
>>
E5AM Stop/Turn Signal Lamp - Left
E5AM Stop/Turn Signal Lamp - Left

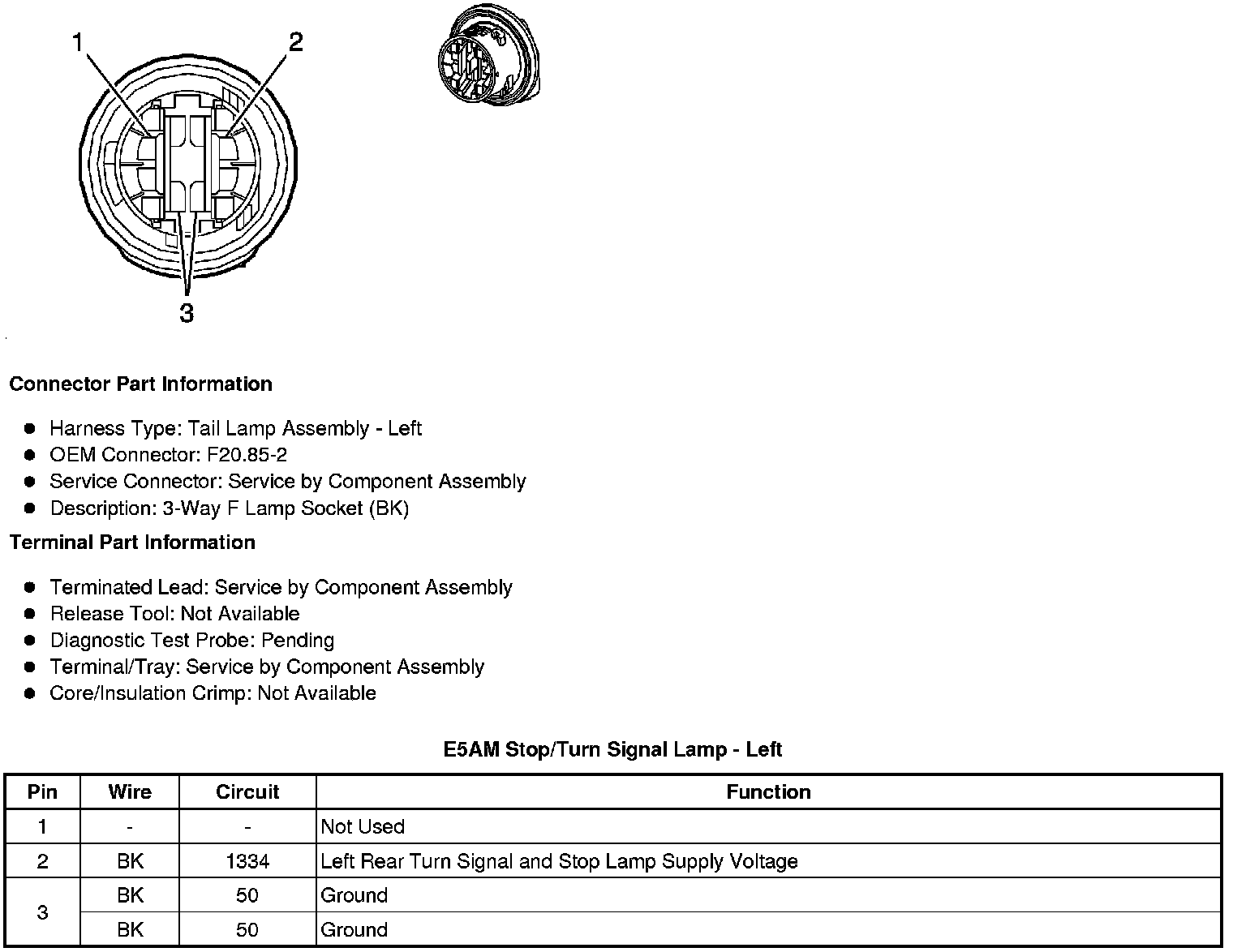

Component Connector End Views
E5AM Stop/Turn Signal Lamp - Left
